iO HVAC Controls BAL-05 5" Round Electronic Remote Balancing Damper
Brand:
iO HVAC Controls
Part #:
BAL-05
Condition:
Brand New
Brand New $133.70 /Kit
Manufacturer warranty Description

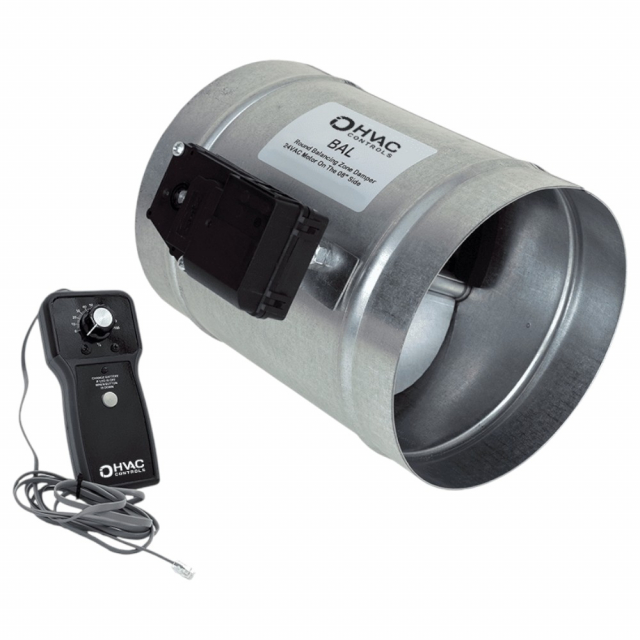

iO HVAC Controls, BAL-05, 5" Round Electronic Remote Balancing Damper with Actuator
Features:
- No field power required!
- Best for applications where balancing dampers are located in finished ceilings or difficult-to-reach places
- Freely run wire in any direction, unlike cable dampers
- Handheld controller equipped with a 9VDC power supply via an RJ-11 cable
- Up to 9 dampers can function in a daisy chain fashion

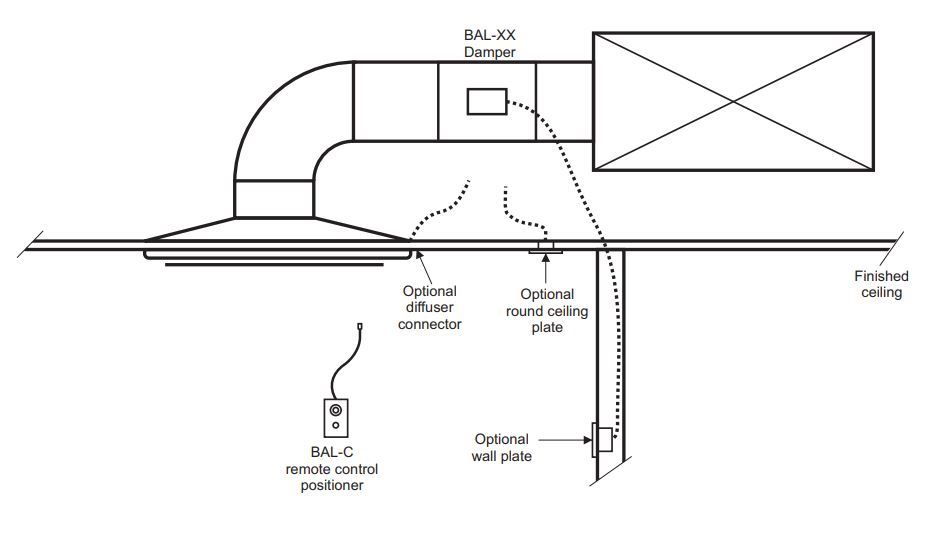

The round, remote-powered balancing damper is designed to balance air flow in an HVAC system. It is ideally suited for applications where balancing dampers are located in finished ceilings or are simply difficult to access and adjust manually. A hand-held remote control positioner equipped with a 9-volt power supply (BAL-C - sold separately*) operates the damper actuator via a plug-in RJ11 cable terminating at an optional wall box, round ceiling plate, or diffuser connector.
Technical details
Main features
- Size (in) 5
- Shaft 1/2" solid aluminum
- Sizes 5"
- Body Length 8"
- Gasket Low leakage
- Leakage Class 2 - 10 cfm/ft2 at 1" w.g. (3 cmm/m2 at .25 kPa)
- Maximum Static Pressure 2" W.C.
- Actuator Factory mounted, 9-volt, gear-driven, fail-in-place motor with dual RJ11 connectors
- Actuator Bracket 18-gauge galvanized steel
- Bushings Bronze Oilite
- Maximum System Velocity 2,000 FPM
- Damper Shell 20-gauge galvanized steel
- Damper Blade 24-Gauge Galvanized Steel
