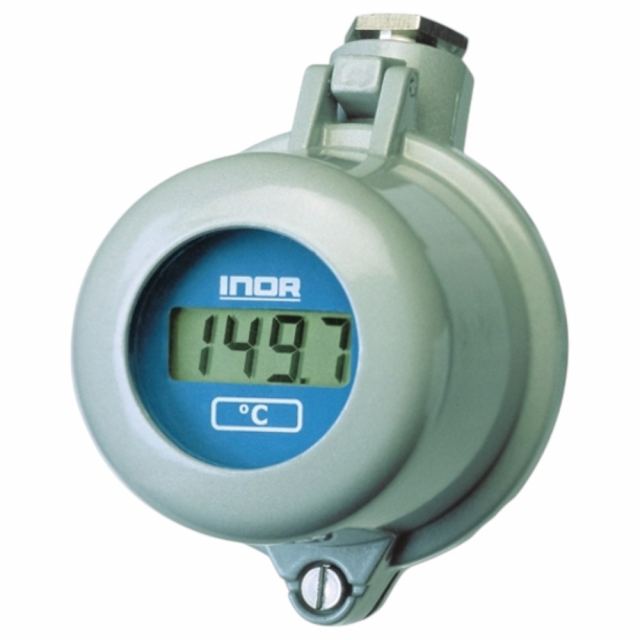

Inor 70LCDH20-US Loop Powered LCD Indicator for In-Head Mounting
Condition:
Brand New
Brand New $310.00 /Each
Manufacturer warranty Description
Features:
- LCD-H20 is a digital indicator for installation directly in a 4-20 mA loop without need for external power.

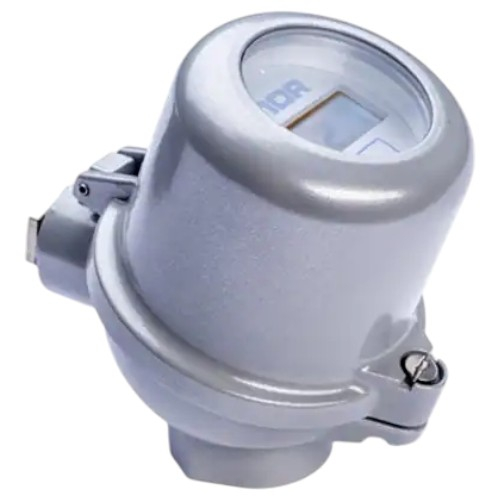

- LCD-H20 is designed for in-head mounting in a sensor connection head with glass window. The indicator is equipped with high-contrast, easy-to-read LCD digits.
- The scale is easily programmable, without reference signal, by 3 pushbuttons for any values between -1999 and 9999. As an option, LCD-H20 can be delivered mounted in a connection head.
- Loop-powered Indicator mounted in Weather-proof, Flip-top Enclosure (Transmitter sold separately)
Technical details
Main features
- Dimensions Diameter 59 mm, thickness 20 mm
- Display Black LCD with 4 digits incl. minus sign
- Protection IP20 (IP65 in connection head)
- Connection Stranded, ≤ 1 mm2, AWG 16
- Operating Temperature -20 to +70 °C / -4 to +158 °F
- Response Time Adjustable 0.25 s to 2 s
- Input Current 4 - 20 mA
- Digit Height 12 mm
- Operating Range 3.8 - 22 mA
- Voltage drop 2.5 V
- Typical accuracy ±0.1 % of programmed span ±1 digit
- Indication range Any range between -1999 to 9999
- Decimals Selectable, 0 to 3
- Engineering units Set of labels included (including blanks)
- Scale setting 3 pushbuttons
