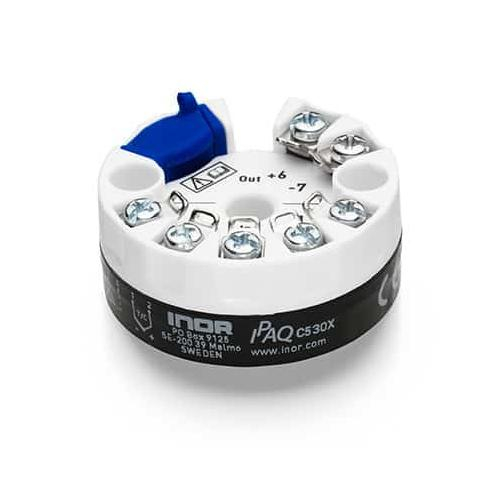

Buy INOR 70C530X010, IPAQ C530X HART Universal Dual-Input Transmitter

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Intrinsic Safety:: Intrinsic Safety: ATEX / IECEx

It is a modern, HART temperature transmitter developed to meet the highest standards of accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors, offering high flexibility and reduces the number of installed product variants.

It is fully compatible with HART 7 and offers extended diagnostic information (for example device error, sensor and wiring conditions) making it reliable and highly precise.

It supports communication via NFC (Near-field communication) and Bluetooth which makes it possible to configure and monitor the transmitter remotely.

For more information, please see Data Sheet

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for INOR items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Type	Head-mounted
Input	RTD, TC, mV, ohm
Input RTD	Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input thermocouple	Type B, C, D, E, J, K, N, R, S, T
Type of transmitter	Digital
Output	4-20 mA, HART protocol
Galvanic isolation	1500 VAC
Measuring channels	1 channel
Sensor connection	2-, 3-, 4-wire connection
Power supply	8,5 to 30 VDC
HART compliance	Fully compliant with the HART 7 protocol as well as the previous HART 6 and 5
Typical accuracy	Max. ±0.08K or ±0.08% of span
Accuracy over time	Max. drift ±0,02% of span/year
Configuration	ConSoft, INOR Connect or EDD, DTM / FDT-system
Wireless connectivity	NFC and Bluetooth
Vibration	IEC 60068-2-6, 10 g
EMC	EN 61326-1 and EN 61326-2-3
Humidity	0...98% RH (non-condensing)
Ambient temperature	-40...+85 °C / -40...+185 °F
Runtime counter	Hour counter for elapsed operational time
Simulated output	Fixed current output during a maximum time of 15 min
Adjustable filtering level	0,17 to 90 s (standard 0.9 s) (3-wire RTD)
Adjustments - Min. span	10°C / 18°F or according to the sensor
Adjustments - Zero point	Any value within range limits
Sensor error	NAMUR NE43
Error compensation	Sensor and system error correction
Intrinsic safety	ATEX / IECEx

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Type	Head-mounted
Input	RTD, TC, mV, ohm
Input RTD	Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input thermocouple	Type B, C, D, E, J, K, N, R, S, T
Type of transmitter	Digital
Output	4-20 mA, HART protocol
Galvanic isolation	1500 VAC
Measuring channels	1 channel
Sensor connection	2-, 3-, 4-wire connection
Power supply	8,5 to 30 VDC
HART compliance	Fully compliant with the HART 7 protocol as well as the previous HART 6 and 5
Typical accuracy	Max. ±0.08K or ±0.08% of span
Accuracy over time	Max. drift ±0,02% of span/year
Configuration	ConSoft, INOR Connect or EDD, DTM / FDT-system
Wireless connectivity	NFC and Bluetooth
Vibration	IEC 60068-2-6, 10 g
EMC	EN 61326-1 and EN 61326-2-3
Humidity	0...98% RH (non-condensing)
Ambient temperature	-40...+85 °C / -40...+185 °F
Runtime counter	Hour counter for elapsed operational time
Simulated output	Fixed current output during a maximum time of 15 min
Adjustable filtering level	0,17 to 90 s (standard 0.9 s) (3-wire RTD)
Adjustments - Min. span	10°C / 18°F or according to the sensor
Adjustments - Zero point	Any value within range limits
Sensor error	NAMUR NE43
Error compensation	Sensor and system error correction
Intrinsic safety	ATEX / IECEx
