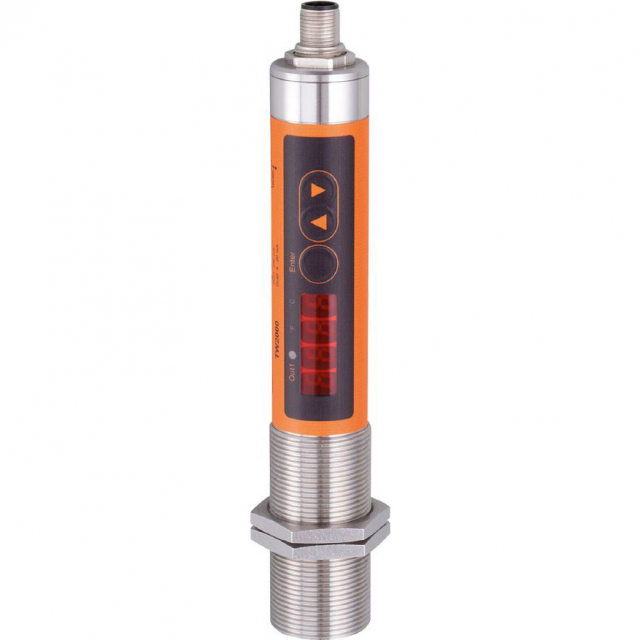

| Product Characteristics |
| Number of Inputs and Outputs | - Number of Digital Outputs: 1
- Number of Analog Outputs: 1
|
| Communication Interface | IO-Link |
| Application | Asphalt; coated metal; liquids; glass; rubber; wood; ceramics; plastics; lacquers; food products; paper; fabric |
| Electrical Data |
| Operating Voltage [V] | 18 - 32 DC; (to SELV/PELV) |
| Current Consumption [mA] | < 50 |
| Minimum Insulation Resistance [MΩ ] | 100; (50 V DC) |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay Time [s] | < 1 |
| Inputs / Outputs |
| Number of Inputs and Outputs | - Number of Digital Outputs: 1
- Number of Analog Outputs: 1
|
| Inputs |
| Test input | Type 3 (IEC 61131-2) |
| Outputs |
| Total Number of Outputs | 2 |
| Output Signal | Switching signal; analog signal; IO-Link; (configurable) |
| Electrical Design | PNP |
| Number of Digital Outputs | 1 |
| Output Function | Normally open / closed; (configurable) |
| Maximum Voltage Drop Switching Output DC [V] | 2.5 |
| Permanent Current Rating of Switching Output DC [mA] | 150 |
| Number of Analog Outputs | 1 |
| Analog Current Output [mA] | 4 - 20 |
| Maximum Load [Ω ] | 500 |
| Short-Circuit Protection | Yes |
| Type of Short-Circuit Protection | Yes (non-latching) |
| Short-circuit proof | Yes |
| Overload Protection | Yes |
| Monitoring Range |
| Wave length range [μ m] | 8 - 14 |
| Measuring/Setting Range |
| Resolution |
| Resolution of switching output [K] | 0.5 |
| Resolution of Analog Output [K] | 0.2; (+ 0.03 % of the set measuring span) |
| Resolution of display [K] | 0.5 |
| Accuracy / Deviations |
| Accuracy [K] | < ± 1 %; (of measured value, min. 2 K (degree of emission = 1, T = 23 ° C)) |
| Repeatability [K] | 1 |
| Reaction Times |
| Response Time [ms] | 100 |
| Software / Programming |
| Adjustment of the switch point | Programming buttons |
| Parameter Setting | Analog range; normally open / closed; switch-on/switch-off delay; Damping; Peakhold; emissivity; simulation function |
| Interfaces |
| Communication Interface | IO-Link |
| Transmission Type | COM2 (38,4 kBaud) |
| IO-Link Revision | 1.1 |
| SDCI Standard | IEC 61131-9 |
| SIO Mode | Yes |
| Required Master Port Class | A |
| Process Data Analog | 16 |
| Process Data Binary | 1 |
| Minimum Process Cycle Time [ms] | 3.6 |
| Operating Conditions |
| Ambient Temperature [° C] | 0 - 65 |
| Storage Temperature [° C] | -20 - 80 |
| Maximum Relative Air Humidity [%] | 95; (non condensing) |
| Protection | IP 65 |
| MTTF [Years] | 88 |
| Mechanical Data |
| Weight [g] | 411.5 |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 |
| Thread Designation | M30 x 1.5 |
| Material | Threaded sleeve: stainless steel (1.4305 / 303); polYester |
