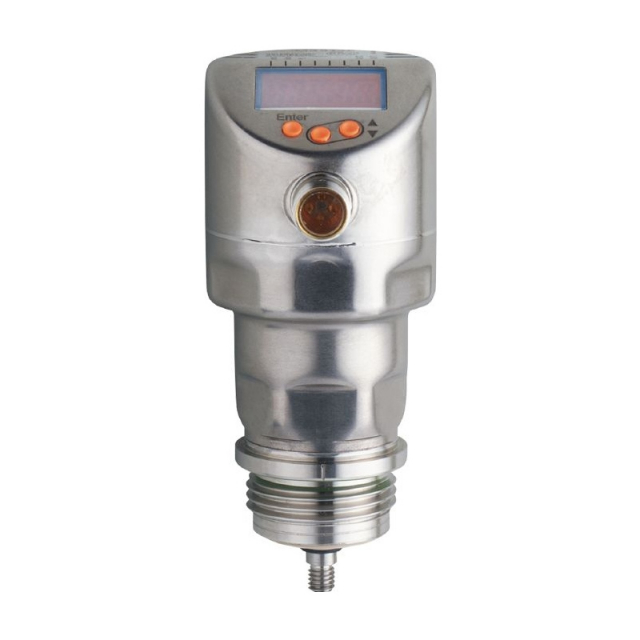

| Product Characteristics |
| Number of Inputs and Outputs | - Number of Digital Outputs: 1
- Number of Analog Outputs: 1
|
| Probe Length L [mm] | 150 - 2000 |
| Process Connection | Threaded connection G 1 external thread Aseptoflex Vario |
| System | gold-plated contacts |
| Application | Hygienic systems |
| Media | Liquids |
| Dielectric Constant of the Medium | >5 |
| Recommended Media | Water; water-based media |
| Process temperature [°C] | -40 - 150 |
| Pressure Rating [bar] | 40 |
| Vacuum Resistance [mbar] | -1000 |
| MAWP (for Applications According to CRN) [bar] | 25 |
| Electrical Data |
| Operating Voltage [V] | 18 - 30 DC |
| Current Consumption [mA] | <50 |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay Time [s] | <3 |
| Measuring Principle | guided wave radar |
| Inputs / Outputs |
| Number of Inputs and Outputs | - Number of Digital Outputs: 1
- Number of Analog Outputs: 1
|
| Outputs |
| Total Number of Outputs | 2 |
| Output Signal | Switching signal; analog signal; IO-Link |
| Electrical Design | PNP/NPN |
| Number of Digital Outputs | 1 |
| Output Function | Normally open / closed; (configurable) |
| Maximum Voltage Drop Switching Output DC [V] | 2.5 |
| Permanent Current Rating of Switching Output DC [mA] | 150; (200 ( - 60 °C)) |
| Number of Analog Outputs | 1 |
| Analog Current Output [mA] | 4 - 20, invertible; (scalable) |
| Maximum Load [Ω] | 500 |
| Short-Circuit Protection | Yes |
| Type of Short-Circuit Protection | Yes (non-latching) |
| Overload Protection | Yes |
| Measuring/Setting Range |
| Probe Length L [mm] | 150 - 2000 |
| Active Range A [mm] | L-40 |
| Inactive Range I1 / I2 [mm] | 30 / 10 |
| Sampling rate [Hz] | 4 |
| Setting Range |
| Set Point SP [mm] | 15 - L-30 |
| Reset Point rP [mm] | 10 - L-35 |
| In Steps of [mm] | 1 |
| Hysteresis [mm] | >5 |
| Accuracy / Deviations |
| Measuring Error [mm] | ± 7 |
| Offset Error [mm] | 5 |
| Resolution [mm] | 1 |
| Zero Signal (Current) [mA] | 4.0 |
| Full Signal (Current) [mA] | 20 |
| Temperature Drift per 10 K | ± 0.2 % |
| Interfaces |
| Communication Interface | IO-Link |
| Transmission Type | COM2 (38,4 kBaud) |
| IO-Link Revision | 1.1 |
| SDCI Standard | IEC 61131-9 |
| Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| SIO Mode | Yes |
| Required Master Port Class | A |
| Process Data Analog | 1 |
| Process Data Binary | 2 |
| Minimum Process Cycle Time [ms] | 2.3 |
| Operating Conditions |
| Ambient Temperature [°C] | -40 - 80 |
| Storage Temperature [°C] | -40 - 100 |
| Protection | IP 68; IP 69K |
| MTTF [Years] | 216 |
| Mechanical Data |
| Weight [g] | 330.75 |
| Material | - Stainless steel (1.4404 / 316L)
- PEI
- PFA
- PBT
- FKM
|
| Materials (Wetted Parts) | - Stainless steel (1.4404 / 316L)
- PEEK
- EPDM
|
| Process Connection | Threaded connection G 1 external thread Aseptoflex Vario |
| Surface characteristics Ra/Rz of the wetted parts | <0.8 |
| Notes | For high process temperatures: The temperature at the Process Connection is decisive. The actual medium temperature may be higher.; For 3-A applications, the medium temperature is limited to 121 °C and COP cleaning is required. |
| Electrical Connection |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
