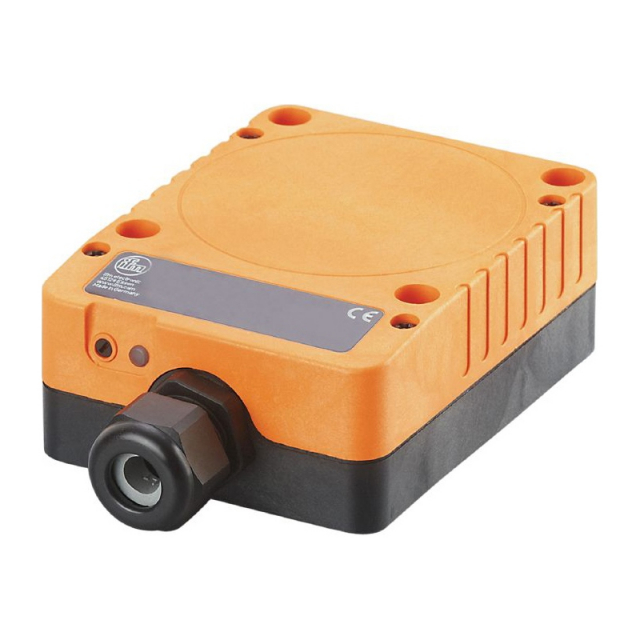

Buy IFM KD3500, Normally Open / Closed PPE Capacitive Sensor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Easy setting of the sensing range via potentiometer
High noise immunity
Robust housing for use in harsh industrial environments
With combined AC/DC output and two-wire technology
Long sensing range of 60 mm

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Characteristics

Output Function

Normally open / closed; (selectable)

Sensing Range [mm]

Housing

Rectangular

Electrical Data

Operating Voltage [V]

20 - 250 AC/DC

Protection Class

Reverse Polarity Protection

Outputs

Output Function

Normally open / closed; (selectable)

Maximum Voltage Drop Switching Output DC [V]

8.5

Maximum Voltage Drop Switching Output AC [V]

8.5

Minimum Load Current [mA]

Maximum Leakage Current [mA]

2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)

Permanent Current Rating of Switching Output AC [mA]

200; (250 ( - 50 °C))

Permanent Current Rating of Switching Output DC [mA]

100

Short-Time Current Rating of Switching Output [mA]

2200; (20 ms / 0,5 Hz)

Switching Frequency AC [Hz]

Switching Frequency DC [Hz]

Short-Circuit Proof

Overload Protection

Monitoring Range

Sensing Range [mm]

Sensing Range Adjustable

Yes

Factory Setting Sensing Range [mm]

Real Sensing Range Sr [mm]

60 ± 10 %

Operating Distance [mm]

0 - 48.6

Accuracy / Deviations

Correction Factor

Glass: 0.4
Water: 1
Ceramics: 0.2
PVC: 0.2

Hysteresis [% of Sr]

1 - 15

Switch-Point Drift [% of Sr]

-15 - 15

Operating Conditions

Ambient Temperature [°C]

-25 - 80

Protection

IP 65

Increased Immunity

Yes; (Increased Immunity to conducted radio frequency interference)

Mechanical Data

Weight [g]

335.658

Housing

Rectangular

Mounting

Non-flush mountable

Material

PPE

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Product Characteristics

Output Function

Normally open / closed; (selectable)

Sensing Range [mm]

Housing

Rectangular

Electrical Data

Operating Voltage [V]

20 - 250 AC/DC

Protection Class

Reverse Polarity Protection

Outputs

Output Function

Normally open / closed; (selectable)

Maximum Voltage Drop Switching Output DC [V]

8.5

Maximum Voltage Drop Switching Output AC [V]

8.5

Minimum Load Current [mA]

Maximum Leakage Current [mA]

2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)

Permanent Current Rating of Switching Output AC [mA]

200; (250 ( - 50 °C))

Permanent Current Rating of Switching Output DC [mA]

100

Short-Time Current Rating of Switching Output [mA]

2200; (20 ms / 0,5 Hz)

Switching Frequency AC [Hz]

Switching Frequency DC [Hz]

Short-Circuit Proof

Overload Protection

Monitoring Range

Sensing Range [mm]

Sensing Range Adjustable

Yes

Factory Setting Sensing Range [mm]

Real Sensing Range Sr [mm]

60 ± 10 %

Operating Distance [mm]

0 - 48.6

Accuracy / Deviations

Correction Factor

Glass: 0.4
Water: 1
Ceramics: 0.2
PVC: 0.2

Hysteresis [% of Sr]

1 - 15

Switch-Point Drift [% of Sr]

-15 - 15

Operating Conditions

Ambient Temperature [°C]

-25 - 80

Protection

IP 65

Increased Immunity

Yes; (Increased Immunity to conducted radio frequency interference)

Mechanical Data

Weight [g]

335.658

Housing

Rectangular

Mounting

Non-flush mountable

Material

PPE

Note

Note: Please read description carefully. Do not base your order on the picture presented.
