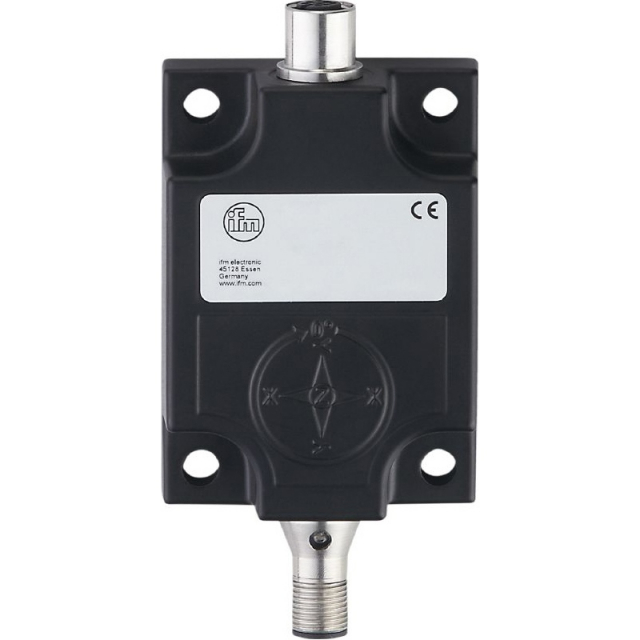

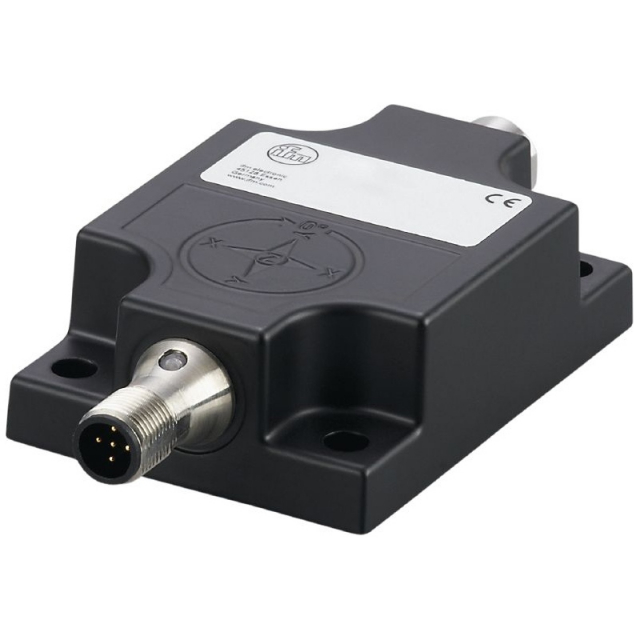

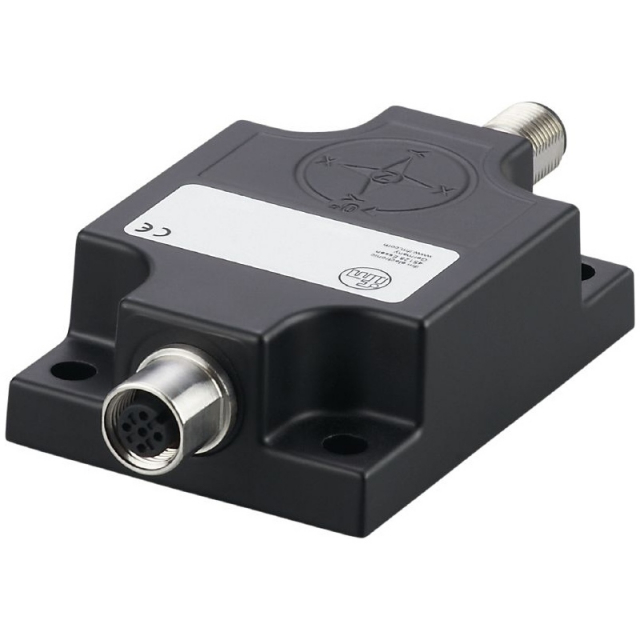

Buy IFM JD1121, MEMS Capacitive 9-30DCV Inclination Sensor

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Fusion of acceleration sensor and gyroscope (IMU)
Compensation of external accelerations
High measurement accuracy in dynamic applications
Compact and robust housing

Applications:

High-precision inclination measurement in dynamic applications

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Characteristics

Measuring Principle

MEMS capacitive; (Accelerometer; gyroscope)

Number of Measurement Axes

1; (Z)

Communication Interface

CAN

Inclination Measurement

Angular Range [°]

0 - 360

Function Principle

Dynamic

Electrical Data

Operating Voltage [V]

9 - 30 DC

Current Consumption [mA]

<65; (9 - 30 V DC)

Minimum Insulation Resistance [MΩ]

100; (500 V DC)

Protection Class

III

Reverse Polarity Protection

Yes

Reverse Polarity Protection

Yes

Measuring/Setting Range

Measuring Principle

MEMS capacitive; (Accelerometer; gyroscope)

Number of Measurement Axes

1; (Z)

Inclination Measurement

Angular Range [°]

0 - 360

Measuring Range Acceleration [g]

± 4

Measuring Range Vehicle Yaw Rate [°/s]

± 500

Accuracy / Deviations

Hysteresis [°]

≤ ± 0,05

Repeatability [°]

± 0,05

Resolution [°]

0.01; (configurable)

Temperature Coefficient [1/K]

≤ ± 0,008°

Dynamic Measurement

Accuracy [°]

± 0,5

Static Measurement

Accuracy [°]

± 0,3

Interfaces

Communication Interface

CAN

Number of CAN Interfaces

Terminating Resistor

Yes; (internal; configurable)

CAN

Protocol

CANopen

Version

CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0

Operating Conditions

Ambient Temperature [°C]

-40 - 85

Storage Temperature [°C]

-40 - 85

Protection

IP 67
IP 68
IP 69K

MTTF [Years]

260

Mechanical Data

Weight [g]

211

Dimensions [mm]

27 x 59 x 118.5

Material

Housing: diecast aluminium black
Potting compound: polyurethane resin

Mounting Orientation

vertical

Product Details

Product Characteristics

Measuring Principle

MEMS capacitive; (Accelerometer; gyroscope)

Number of Measurement Axes

1; (Z)

Communication Interface

CAN

Inclination Measurement

Angular Range [°]

0 - 360

Function Principle

Dynamic

Electrical Data

Operating Voltage [V]

9 - 30 DC

Current Consumption [mA]

<65; (9 - 30 V DC)

Minimum Insulation Resistance [MΩ]

100; (500 V DC)

Protection Class

III

Reverse Polarity Protection

Yes

Reverse Polarity Protection

Yes

Measuring/Setting Range

Measuring Principle

MEMS capacitive; (Accelerometer; gyroscope)

Number of Measurement Axes

1; (Z)

Inclination Measurement

Angular Range [°]

0 - 360

Measuring Range Acceleration [g]

± 4

Measuring Range Vehicle Yaw Rate [°/s]

± 500

Accuracy / Deviations

Hysteresis [°]

≤ ± 0,05

Repeatability [°]

± 0,05

Resolution [°]

0.01; (configurable)

Temperature Coefficient [1/K]

≤ ± 0,008°

Dynamic Measurement

Accuracy [°]

± 0,5

Static Measurement

Accuracy [°]

± 0,3

Interfaces

Communication Interface

CAN

Number of CAN Interfaces

Terminating Resistor

Yes; (internal; configurable)

CAN

Protocol

CANopen

Version

CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0

Operating Conditions

Ambient Temperature [°C]

-40 - 85

Storage Temperature [°C]

-40 - 85

Protection

IP 67
IP 68
IP 69K

MTTF [Years]

260

Mechanical Data

Weight [g]

211

Dimensions [mm]

27 x 59 x 118.5

Material

Housing: diecast aluminium black
Potting compound: polyurethane resin

Mounting Orientation

vertical

Note

Note: Please read description carefully. Do not base your order on the picture presented.
