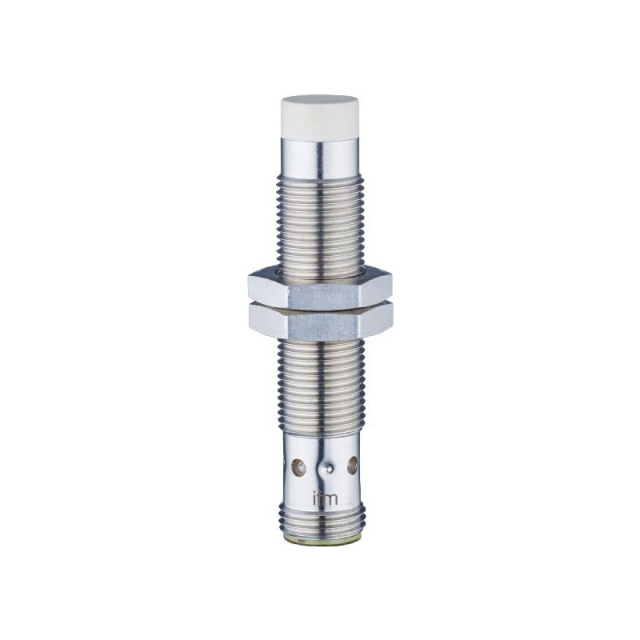

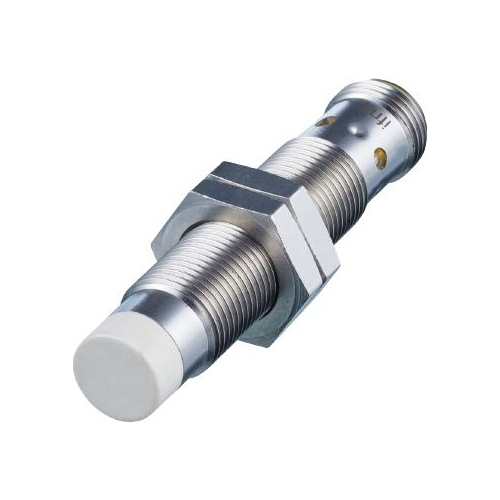

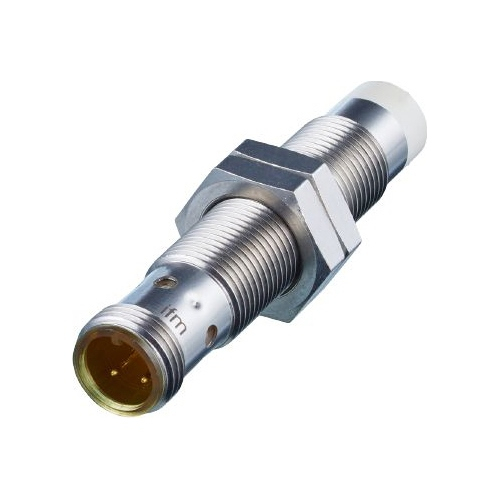

Buy IFM IFP201, PNP/NPN Inductive Sensor with 0.4 - 4mm Measuring Range

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Measuring Range IO-Link (mm):: Measuring Range IO-Link (mm): 0.4 - 4

Features:

For a precise position monitoring on machines
Wide operating temperature range
Very high repeatability

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Characteristics

Electrical Design

PNP/NPN; (configurable)

Output Function

Normally open / closed; (configurable)

Communication Interface

IO-Link

Housing

Threaded type

Dimensions [mm]

M12 x 1 / L = 60

System

Magnetic-Field Immune

Yes

Maximum Electromagnetic Field Immunity [mT]

300

Electrical Data

Operating Voltage [V]

10 - 30 DC

Current Consumption [mA]

<20

Protection Class

III

Reverse Polarity Protection

Yes

Outputs

Electrical Design

PNP/NPN; (configurable)

Output Function

Normally open / closed; (configurable)

Maximum Voltage Drop Switching Output DC [V]

2.5

Permanent Current Rating of Switching Output DC [mA]

100

Switching Frequency DC [Hz]

Short-Circuit Protection

Yes

Overload Protection

Yes

Monitoring Range

Switch Point IO-Link [mm]

0.8 - 3.88

Measuring Range IO-Link [mm]

0.4 - 4

Accuracy / Deviations

Repeatability

10 μm

Factory Calibration (Target: Aluminium, 36x36 mm)

Resolution [μm]

Temperature Drift

± 1,6 μm/K

Linearity Deviation

± 10 μm

Application Calibration (1-Point Calibration; Target: Steel, 36x36 mm)

Resolution [μm]

Temperature Drift

± 4 μm/K

Linearity Deviation

± 75 μm

Application Calibration (3-Point Calibration; Target: Steel, 24x24 mm)

Resolution [μm]

Temperature Drift

± 4 μm/K

Linearity Deviation

± 50 μm

Interfaces

Communication Interface

IO-Link

Transmission Type

COM2 (38,4 kBaud)

IO-Link Revision

1.1

SDCI Standard

IEC 61131-9 CDV

Profiles

Smart Sensor: Device Identification
Device Diagnosis
Device Teach Channel
Binary Data Channel
Process Data Variable

SIO Mode

Yes

Required Master Port Class

Minimum Process Cycle Time [ms]

3.2

Operating Conditions

Ambient Temperature [°C]

-25 - 70

Protection

IP 65
IP 66
IP 67
IP 68
IP 69K

MTTF [Years]

1341

Embedded Software Included

Yes

Mechanical Data

Weight [g]

53.9

Housing

Threaded type

Mounting

Flush mountable

Dimensions [mm]

M12 x 1 / L = 60

Thread Designation

M12 x 1

Material

Housing: stainless steel (1.4404 / 316L)
Sensing face: LCP white
LED window: PEI
Lock nuts: stainless steel (1.4404 / 316L)

Tightening Torque [Nm]

Notes
