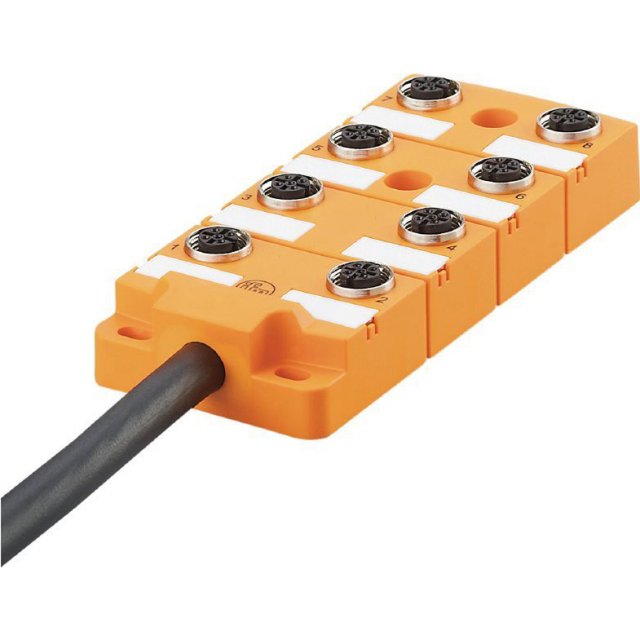

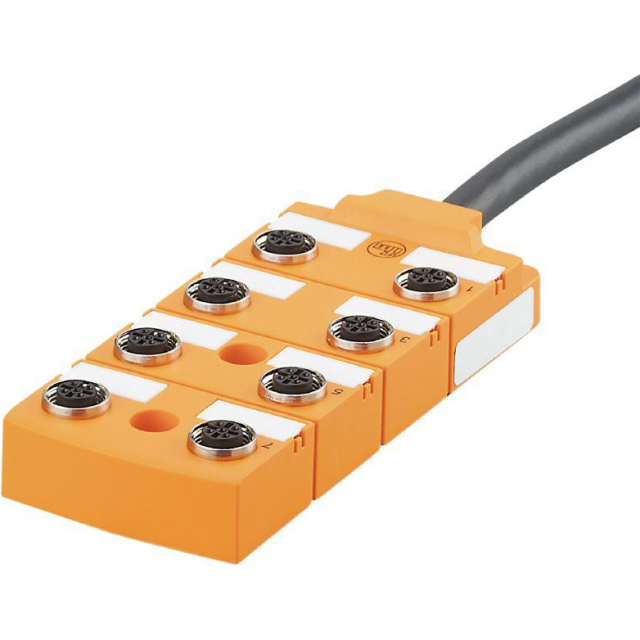

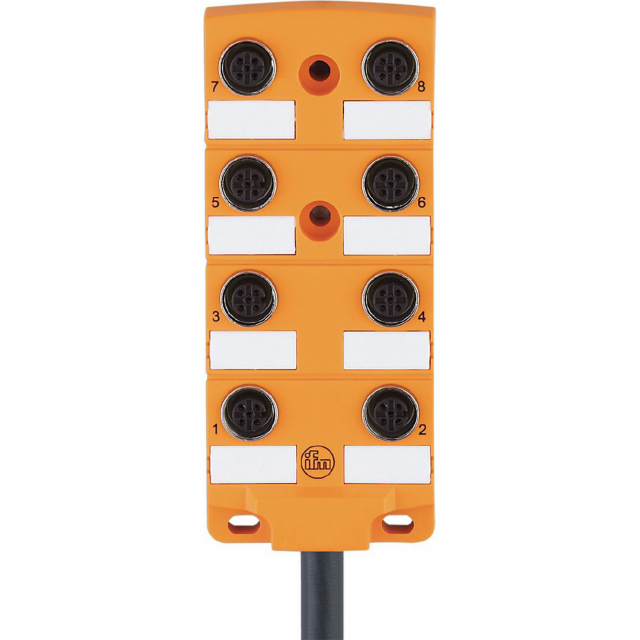

IFM EBC034 8-Port 12A Wiring Block
Condition:
Brand New
Brand New $365.70 /Each
Manufacturer warranty Description
Features:
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
For more information, please see
Data Sheet
Technical details
Main features
- Material PA
- System Free from Silicone Halogen-free Gold-plated contacts Drag Chain Suitability
- Protection Class II
- Number of Ports 8
- Protection IP 67; IP 68
- Operating voltage [V] 30 DC; (cULus - Class 2 source required)
- Weight [g] 1575.5
- Drag Chain Suitability Yes
- Dimensions [mm] 22 x 54 x 127
- Ambient Temperature [°C] -25 - 80
- Ambient Temperature (Moving) [°C] -5 - 60
- Maximum Current Load Total [A] 12
- Free from Silicone Yes
- Maximum Current Load per Module/Slot [A] 4
- Molded-Body Material PA
- Number of Ports Splitter Box 8
