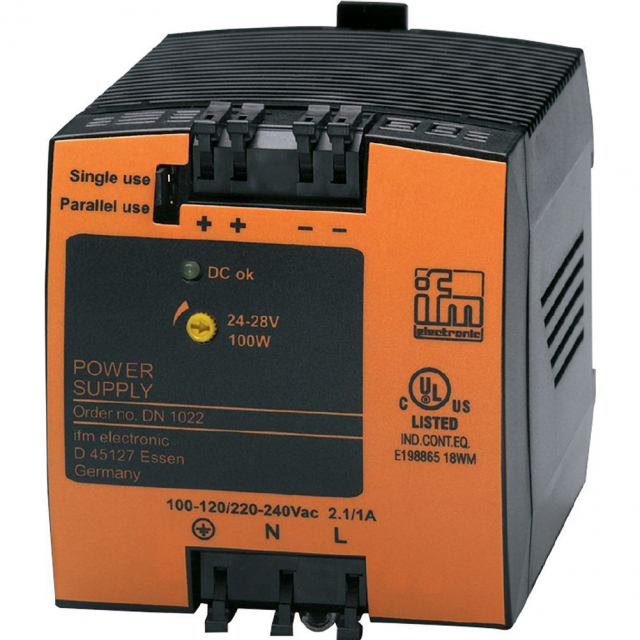

IFM DN1022 Switched-Mode 24VDC Power Supply with 90% Efficiency
Condition:
Brand New
Brand New $554.00 /Each
Manufacturer warranty Description
Features:
- For the regulated power supply for controllers, sensors, actuators, and industrial electronics
- High efficiency for low power loss
- High mains buffering time
- Space-saving design
- Low heating of the control cabinet
For more information, please see
Data Sheet
Technical details
Main features
- Protection Class I; (IEC 61140)
- Efficiency (%) 90
- Overload Protection Yes
- Short-circuit protection Yes
- Nominal Voltage AC [V] <230
- Nominal frequency AC [Hz] 50 - 60
- Input Voltage Range AC [V] 100 - 240
- Output Voltage DC [V] 24 - 28
- Output Voltage [V] Adjustable
- Maximum Output Current at Minimum Output Voltage [A] 4.1
- Number of Output Circuits 1
- Maximum Residual Ripple [mV] 50
- Efficiency (Nominal Voltage 230 V AC / 50 Hz) [%] 90
- Derating [W/K] 2 (60 - 70 °C)
- Mains Buffering Time (Nominal Voltage 230 V AC / 50 Hz) [ms] 40
- Output Voltage Tolerance [%] 2
