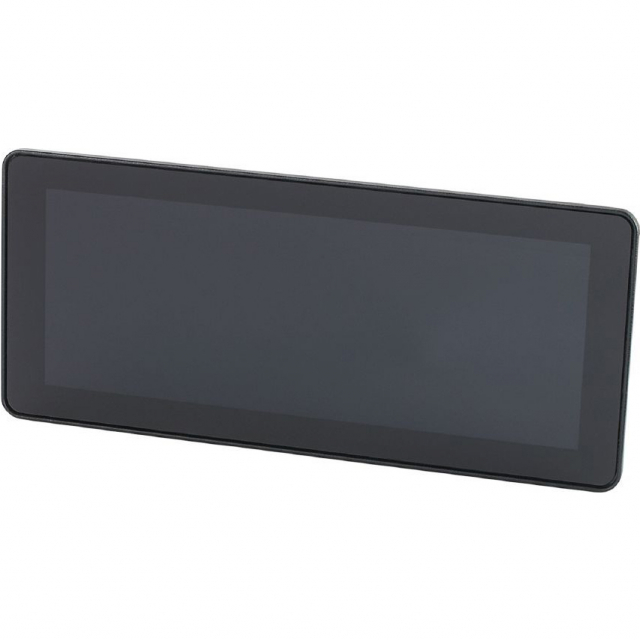

IFM CR1202 12.3" Programmable Graphic Display for Mobile Machines
Condition:
Brand New
Brand New $3,497.00 /Each
Manufacturer warranty Description
IFM, CR1202, 12.3" Programmable Graphic Display for Controlling Mobile Machines
Features:
- Powerful, robust HMI with modern 64-bit architecture
- High-performance USB interface for data logging and support of analog cameras and Ethernet cameras
- High-performance CAN and Ethernet interfaces for various communication tasks
- Freely programmable to IEC 61131-3 with CODESYS 3.5
For more information, please see
Data Sheet
Technical details
Main features
- Processor ARM Dual Core 64 Bit 800 MHz
- Display Type Color display
- Interface CAN Interface 2.0 A/B ISO 11898
- Operating System Embedded Linux 4.14
- Audio Output Stereo Line-Out
- Material Diecast aluminium powder-coated Display: glass anti-reflective and hardened
- Protocol CANopen; SAE J1939; free protocol, TCP/IP; UDP; Modbus TCP; OPC UA; EtherNet/IP
- Communication Interface Ethernet; CAN; USB
- Number of Digital Outputs 2
- Display Size (in) 12.3
- Version 2.0
- Protection IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
- Profile CiA DS 301 Version 4; CiA DS 401 Version 1.4
- Video Input PAL, NTSC
- Contrast Ratio 1000:1
- Real-Time Clock Yes; UTC, battery buffered
- Aspect Ratio 8:3
- Display Size 12.3"
- Mass Storage 4 GByte Flash
- Number of Video Inputs 2; (analog)
- Number of digital inputs 2
- Operating voltage [V] 8 - 32 DC
- Power consumption [W] 29
- Display Resolution 1280 x 480
- Color Depth 24 bit
- Transmission Rate 20 kBit/s - 1 MBit/s, 100 MBit/s, <480 MBit/s
- Type of Mounting Panel/surf.
- Current Consumption [mA] <1208; (24 V DC; with switched outputs:<5000 mA)
- Maximum Relative Air Humidity [%] 90; (non condensing)
- MTTF [Years] 41
- Weight [g] 2178.5
- Number of Inputs and Outputs Number of Digital Inputs: 2 Number of Digital Outputs: 2
- Dimensions [mm] 339.1 x 160.5 x 47.7
- Parameter Setting CODESYS 3.5
- Maximum Current Load per Output [mA] 2500
- Ambient Temperature [°C] -30 - 65
- Maximum Height above Sea Level [m] 3000
- Nominal Voltage DC [V] 12 / 24
- PLC Function to IEC 61131-3 Yes
- Number of CAN Interfaces 4
- Number of Ethernet Interfaces 1
- Number of USB Interfaces 1
- Number of Video Interfaces (CVBS) 2
- Transmission Standard 10Base-T; 100Base-TX
- Storage Temperature [°C] -35 - 85
- Degree of Soiling 2
- Display Background Illumination LED
- Brightness [cd/m²] <1000; (adjustable: 0 - 100 %; In steps of: 1 %)
- Working Memory 1 GByte RAM
