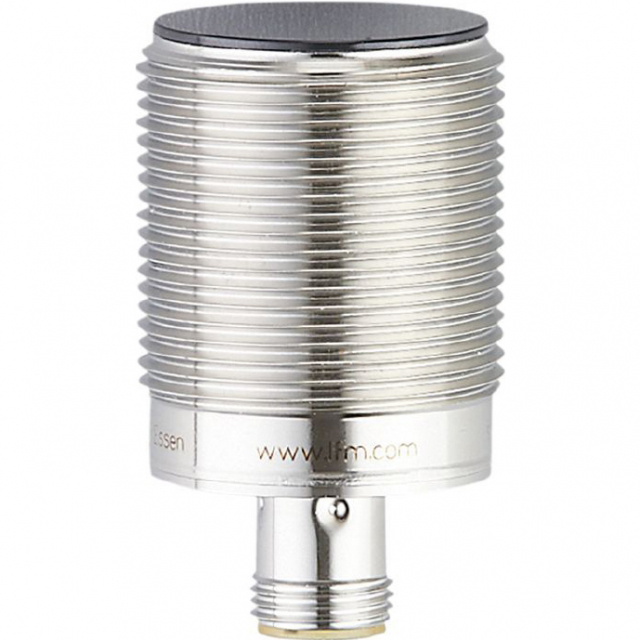

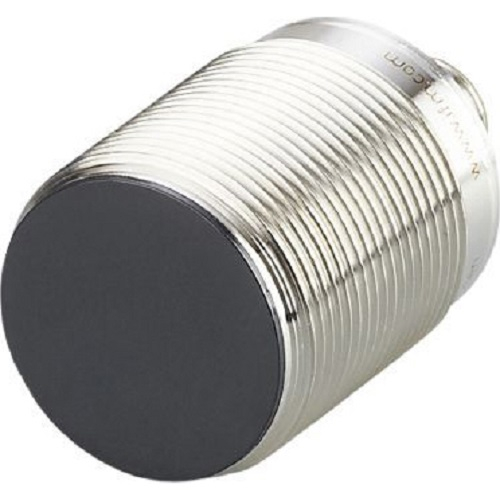

Buy IFM ANT430, RFID Read/Write 50mm Head HF with 100mm Distance Write

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Total Length (mm):: Total Length (mm): 50

Features:

For the reliable identification of ID tags on workpiece carriers and products
Robust stainless steel housing for applications in mounting, feeding and handling technology
Suitable for use with RFID antenna adapters to increase the ranges
RFID read/write Head HF for flush mounting
For the connection to RFID evaluation units LF/HF using the tried-and-tested M12 connection

Applications

Detection of objects on transport equipment

For more information, please see pdf file Data Sheet

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Radio Approval for

USA
Canada
EU/RED
Australia
Japan; China; Taiwan; India
Singapore
Ukraine
South Korea

Electrical Data

Operating Voltage [V]

19.2 - 28.8 DC; (Supply only via the DTE10x evaluation unit (to EN 60950-1))

Current Consumption [mA]

<50

Protection Class

III

Operating Frequency [MHz]

13,56

RFID Standard

ISO 15693

Monitoring Range

Distance Write/Read Head front [mm]

100

Distance Write/Read Head Side [mm]

Interfaces

Communication Interface

DATA / DTE10x

Operating Conditions

Ambient Temperature [°C]

-20 - 60

Storage Temperature [°C]

-25 - 80

Protection

IP 67
IP 69K

Mechanical Data

Weight [g]

187.5

Housing

Tubular

Mounting

Flush mountable

Dimensions [mm]

M30 x 1.5 / L = 50

Thread Designation

M30 x 1.5

Material

Housing: stainless steel
Protective cover: PPS

Notes
