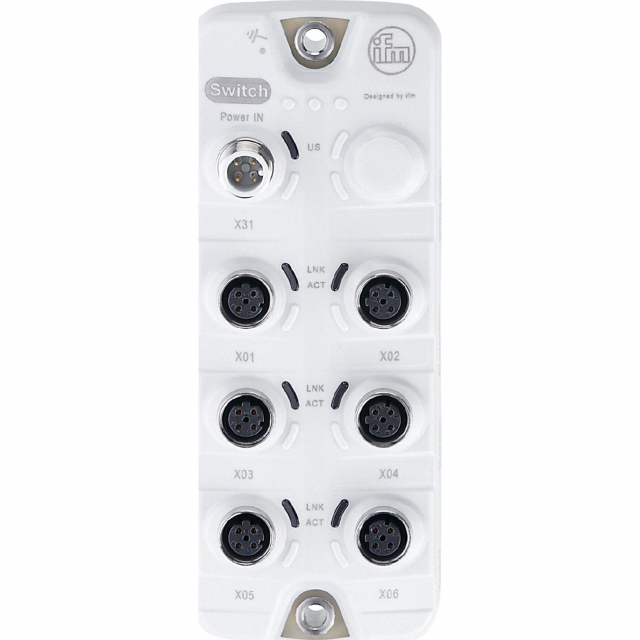

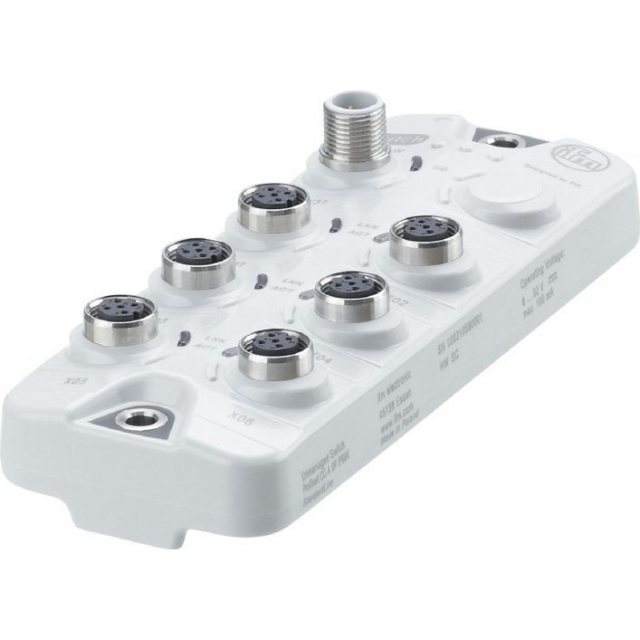

IFM AL3001 ProfiNet-Switch with Stainless Steel Socket
Condition:
Brand New
Brand NewChoose Socket Material
$444.30 /Each
Manufacturer warranty Description
Features:
- 6-port switches (unmanaged) for ProfiNet Class A
- Voltage supply with standardized A-coded M12 connection technology
- For use in sanitary and wet areas in the food industry
Applications
- For ProfiNet-Netzwerke
For more information, please see
Data Sheet
Technical details
Main features
- Material Housing: PA grey Socket: stainless steel (1.4404 / 316L)
- Design Unmanaged switch for field applications
- Communication Interface Ethernet
- Protection Class III
- Socket Material Stainless Steel
- Protection IP 65 IP 66 IP 67 IP 69K; (operation with stainless steel protective caps: IP 69K)
- Operating voltage [V] 8 - 32 DC; (US; to SELV/PELV; cULus: 8 - 28 DC)
- Transmission Rate 10 MBit/s; 100 MBit/s
- Sealing Material EPDM
- Reverse Polarity Protection Yes
- Current Consumption [mA] 100; (US; 24 V: 50 mA)
- Maximum Relative Air Humidity [%] 90
- Weight [g] 306.4
- Ambient Temperature [°C] -25 - 70
- Maximum Height above Sea Level [m] 4000
- Nominal Voltage DC [V] 12 / 24
- Number of Ethernet Interfaces 6
- Transmission Standard 10Base-T; 100Base-TX
- Storage Temperature [°C] -25 - 85
- Degree of Soiling 2
- Protection Rating (NEMA 250) 6P
