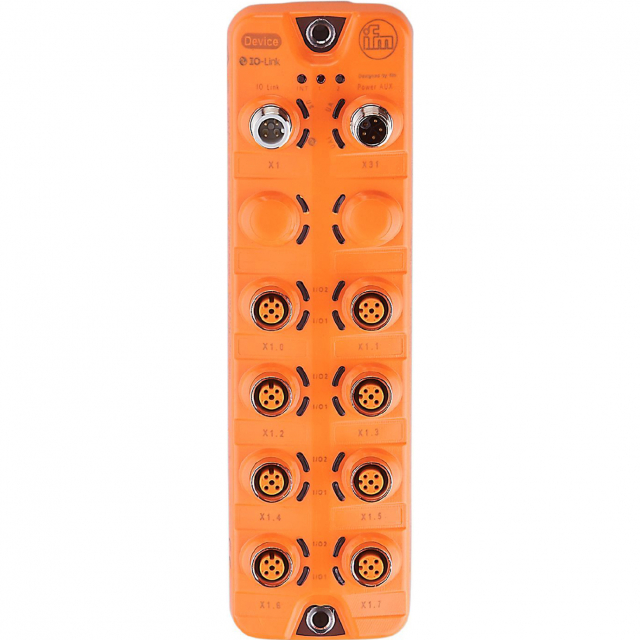

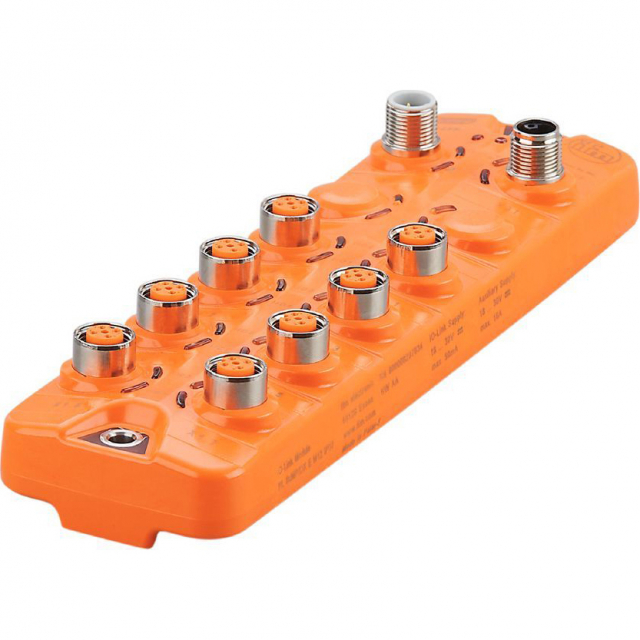

Buy IFM AL2605, IO-Link Input/Output Module

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

High protection rating

For more information, please see pdf file Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Electrical Data

Operating Voltage [V]

18 - 30 DC

Current Consumption [mA]

100; (US)

Protection Class

III

Additional Voltage Supply [V]

18 - 30 DC; (UA UAi)

Maximum Current Consumption from Additional Supply [mA]

16000; (UA; UAi: 800 mA)

Inputs / Outputs

Total Number of Inputs and Outputs

Number of Inputs and Outputs

Number of Digital Inputs: 16
Number of Analog Inputs: 8; Number of Digital Outputs: 16

Inputs

Number of Digital Inputs

16; (configurable)

Input Circuit of Digital Inputs

PNP; (type 3 (IEC 61131-2))

Sensor Supply of the Inputs

AUX (UA, UAi)

Voltage Supply [V]

18 - 30

Input Current High [mA]

2 - 15

Input Current Low [mA]

0 - 1.5

Switching Level High [V]

11 - 28

Switching Level Low [V]

0 - 5

Number of Analog Inputs

8; (configurable current/voltage input)

Analog Input (Current) [mA]

4 - 20

Analog Input (Voltage) [V]

0 - 10

Resolution of Analog Input

16 Bit

Outputs

Number of Digital Outputs

16; (configurable)

Maximum Current Load per Output [mA]

2000

Maximum Current Load Outputs Total [A]

Short-Circuit Protection

Yes

Actuator Supply Outputs

AUX (UA)

Interfaces

Communication Interface

IO-Link

SDCI Standard

IEC 61131-9

Transmission Type

COM3 (230,4 kBaud)

IO-Link Revision

1.1

SIO Mode

Required Master Port Class

Minimum Process Cycle Time [ms]

Operating Conditions

Ambient Temperature [°C]

-25 - 60

Storage Temperature [°C]

-25 - 70

Maximum Relative Air Humidity [%]

Maximum Height above Sea Level [m]

2000

Protection

IP 65; IP 67

Protection Rating (NEMA 250)

Degree of Soiling

MTTF [years]

Mechanical Data

Weight [g]

394

Dimensions [mm]

26 x 59.3 x 208

Material

Housing: PA orange
Socket: brass nickel-plated

Sealing Material

FKM

Tightening Torque [Nm]

<0.8

Notes
