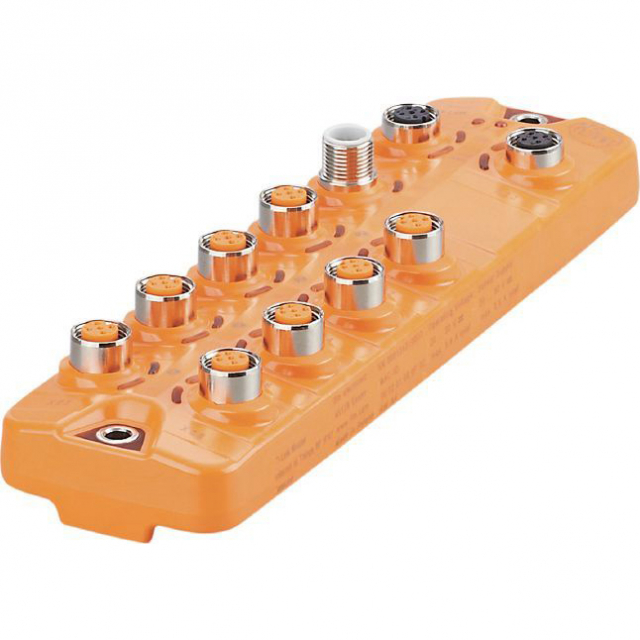

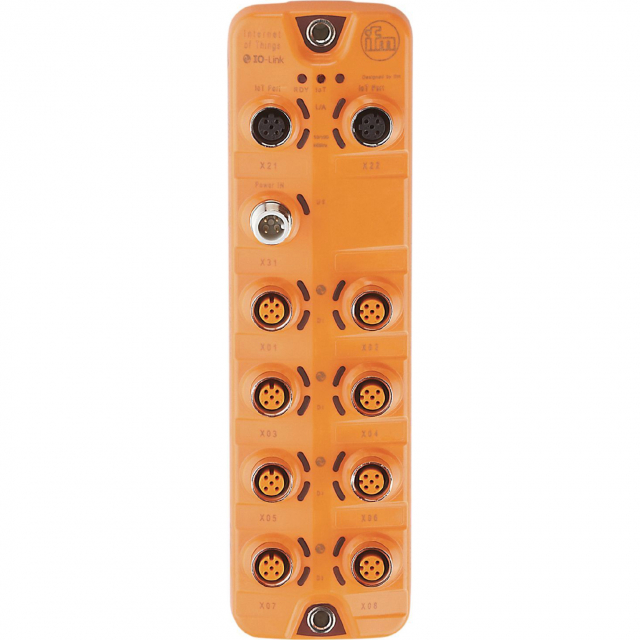

Buy IFM AL1352, 20 - 30V IO-Link Master with 16 Inputs and 8 Outputs

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

- Sale Price
  $525.00 Each

Buy in Bulk 4 Applicable Promotion(s)

Show All

Buy 200 pcs, get 7% off
Save 7% each on IFM AL1352 20 - 30V IO-Link Master with 16 Inputs and 8 Outputs when you purchase 200 or more
Buy 100 pcs, get 5% off
Save 5% each on IFM AL1352 20 - 30V IO-Link Master with 16 Inputs and 8 Outputs when you purchase 100 or more
Buy 50 pcs, get 3% off
Save 3% each on IFM AL1352 20 - 30V IO-Link Master with 16 Inputs and 8 Outputs when you purchase 50 or more
Buy 25 pcs, get 1% off
Save 1% each on IFM AL1352 20 - 30V IO-Link Master with 16 Inputs and 8 Outputs when you purchase 25 or more

Availability: Typically In Stock

Check Availability

Quantity

Options and Related Products

Version:: Version: Master with 16 Inputs and 8 Outputs
Operating Voltage (V):: Operating Voltage (V): 20 - 30

Features:

Robust housing for use in harsh industrial environments

Applications

IO modules for field applications

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Daisy-Chain Function

Fieldbus interface

Electrical Data

Operating Voltage [V]

20 - 30 DC; (US; to SELV/PELV)

Current Consumption [mA]

300 - 3900; (US)

Protection Class

III

Sensor Supply US

Maximum Current Load Total [A]

3.6

Inputs / Outputs

Total Number of Inputs and Outputs

16; (configurable)

Number of Inputs and Outputs

Number of Digital Inputs: 16
Number of Digital Outputs: 8

Inputs

Number of Digital Inputs

16; (IO-Link Port Class A: 8 x 2)

Switching Level High [V]

11 - 30

Switching Level Low [V]

0 - 5

Digital Inputs Protected Against Short Circuits

Yes

Outputs

Number of Digital Outputs

8; (IO-Link Port Class A: 8 x 1)

Maximum Current Load per Output [mA]

300

Short-Circuit Proof

Yes

Interfaces

Communication Interface

Ethernet; IO-Link

Ethernet - Internet of Things

Transmission Standard

10Base-T; 100Base-TX

Transmission Rate

10 MBit/s; 100 MBit/s

Protocol

MQTT JSON

IO-Link Master

Transmission Type

COM1 (4,8 kBaud)
COM2 (38,4 kBaud)
COM3 (230,4 kBaud)

IO-Link Revision

1.1

Number of Ports Class A

Operating Conditions

Ambient Temperature [°C]

-25 - 60

Storage Temperature [°C]

-25 - 85

Maximum Relative Air Humidity [%]

Protection

IP 65
IP 66
IP 67

Protection Rating (NEMA 250)

Degree of Soiling

MTTF [years]

Mechanical Data

Weight [g]

397

Material

Housing: PA orange
Socket: brass nickel-plated

Sealing Material

FKM

Electrical Connection - Ethernet

IoT X21, X22

Connector: M12; coding: D; sealing: FKM

Electrical Connection - Process Connection

IO-Link Port Class A X01 - X08

Connector: M12; coding: A; sealing: FKM

Electrical Connection - Voltage Supply

X31

Connector: M12; coding: A

Product Details

Daisy-Chain Function

Fieldbus interface

Electrical Data

Operating Voltage [V]

20 - 30 DC; (US; to SELV/PELV)

Current Consumption [mA]

300 - 3900; (US)

Protection Class

III

Sensor Supply US

Maximum Current Load Total [A]

3.6

Inputs / Outputs

Total Number of Inputs and Outputs

16; (configurable)

Number of Inputs and Outputs

Number of Digital Inputs: 16
Number of Digital Outputs: 8

Inputs

Number of Digital Inputs

16; (IO-Link Port Class A: 8 x 2)

Switching Level High [V]

11 - 30

Switching Level Low [V]

0 - 5

Digital Inputs Protected Against Short Circuits

Yes

Outputs

Number of Digital Outputs

8; (IO-Link Port Class A: 8 x 1)

Maximum Current Load per Output [mA]

300

Short-Circuit Proof

Yes

Interfaces

Communication Interface

Ethernet; IO-Link

Ethernet - Internet of Things

Transmission Standard

10Base-T; 100Base-TX

Transmission Rate

10 MBit/s; 100 MBit/s

Protocol

MQTT JSON

IO-Link Master

Transmission Type

COM1 (4,8 kBaud)
COM2 (38,4 kBaud)
COM3 (230,4 kBaud)

IO-Link Revision

1.1

Number of Ports Class A

Operating Conditions

Ambient Temperature [°C]

-25 - 60

Storage Temperature [°C]

-25 - 85

Maximum Relative Air Humidity [%]

Protection

IP 65
IP 66
IP 67

Protection Rating (NEMA 250)

Degree of Soiling

MTTF [years]

Mechanical Data

Weight [g]

397

Material

Housing: PA orange
Socket: brass nickel-plated

Sealing Material

FKM

Electrical Connection - Ethernet

IoT X21, X22

Connector: M12; coding: D; sealing: FKM

Electrical Connection - Process Connection

IO-Link Port Class A X01 - X08

Connector: M12; coding: A; sealing: FKM

Electrical Connection - Voltage Supply

X31

Connector: M12; coding: A

Note

Note: Please read description carefully. Do not base your order on the picture presented.
