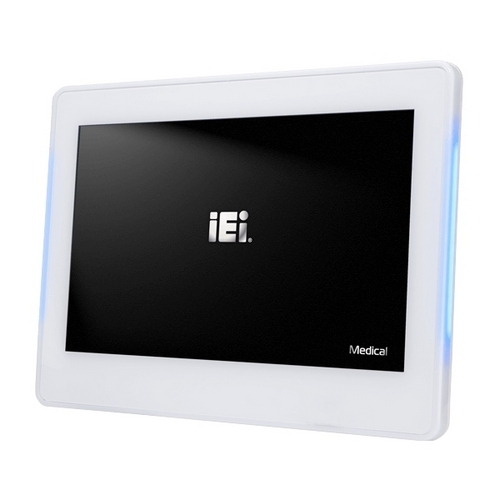

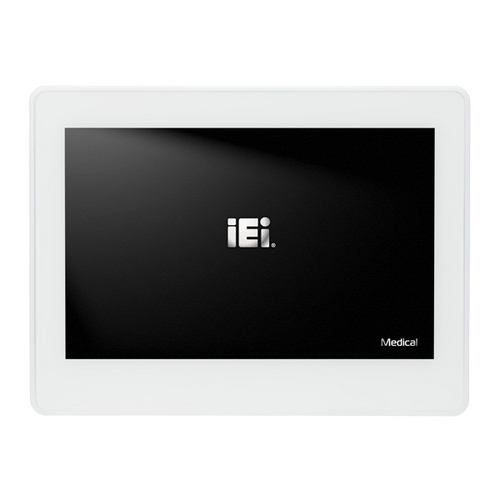

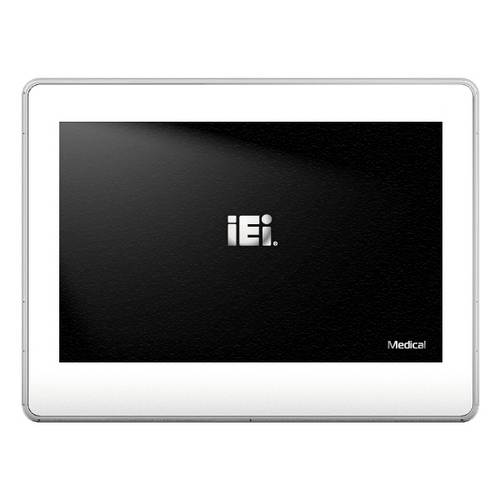

IEI, IASO-W10B-N6210/4G-R10, 10.1", 400cd/m², Medical Panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, One 4GB DDR4 RAM,Wi-Fi 6E Module, PCAP Touchscreen
IASO-W10B-N6210/4G-R10 Includes Only:
- 1 x IASO-W10B-N6210/4G-R10
- 1 x Power Adapter
- 1 x Power Cord
Features:
- Intel® Celeron® Processor N6210
- Programmable LED light bar on both sides
- 10-point PCAP touch with optical bonding
- LCD Humid & Dust Protection Panel
- Anti-UV
- Medical glove touch
- Reduced Weight
- Better Visibility
Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP)
CPU TDP 6.5W
Either lower power consumption at the same performance, or higher performance at equal TDP
Integrated gigabit Ethernet (2.5GbE)
Hard real-time-even via standard Ethernet

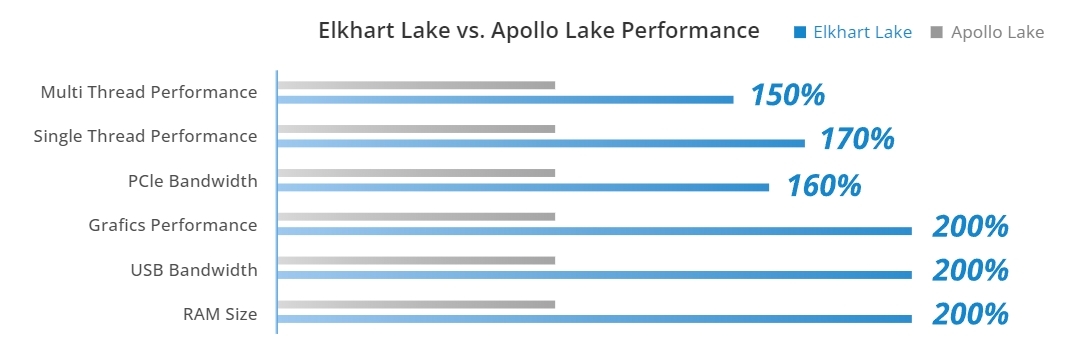

Up to a 1.7x improvement in single-thread performance
Processor performance boost
Up to a 1.5x improvement in multi-thread performance generation over generation
Processor performance boost
Up to 2x performance improvement in graphics over previous generation
Doubling graphics speed for immersive experiences

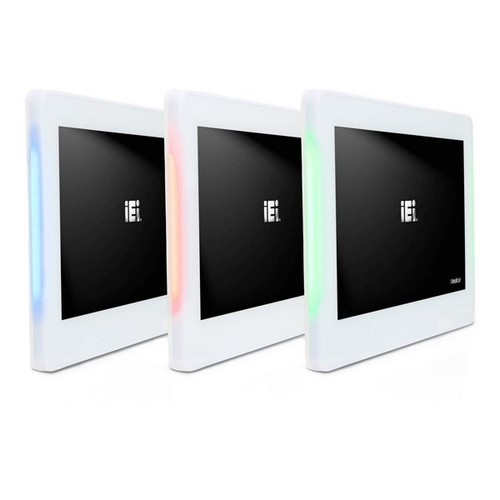

Programmable LED Light
Bars on Both Sides
1. LED light bars on both sides
Bright and simple outlook with programmable LED lights on both sides. The colorful light and display can be adjusted according to use conditions.
2. Usage scenarios
It can be used to detect the status light signal, or to warn the ward aisle.
3. Programmable LEDs
Each light bar has 10 programmable RGB LEDs with IEC62471 certification.
4. Translucent front frame
The front frame is made of translucent material to make the frame light and thin.
Color Codes for Safety Signs
IEC60601-1-8:General requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.
ANSI Z535.1-2017:A standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguishers, trip/slip hazards, and other potential hazards or safety equipment.

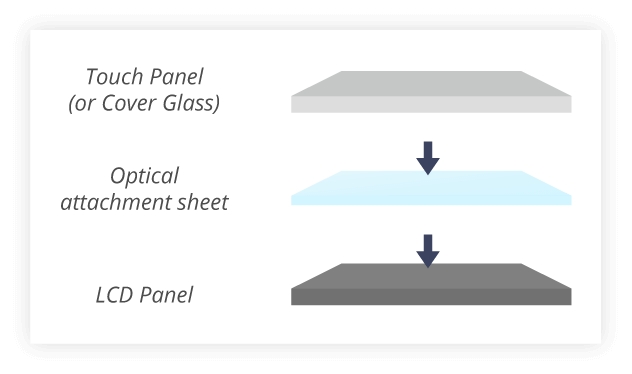

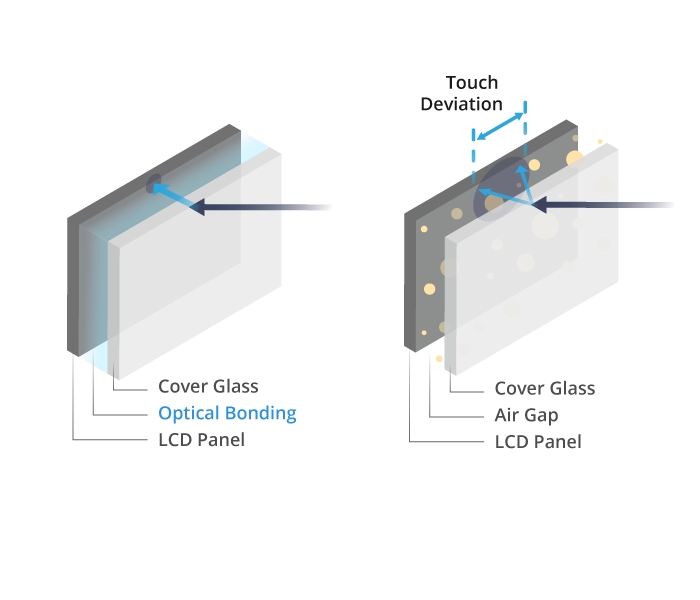

10-Point Touch Screen with Optical Bonding
10-Point touch screen with 6H surface scratch resistance supports control with multiple layers of surgical gloves. Optical bonding can dramatically reduce the internal reflections, help improve the brightness and contrast ratio of the display, enhance system ruggedness, and strengthen shock and vibration resistance.

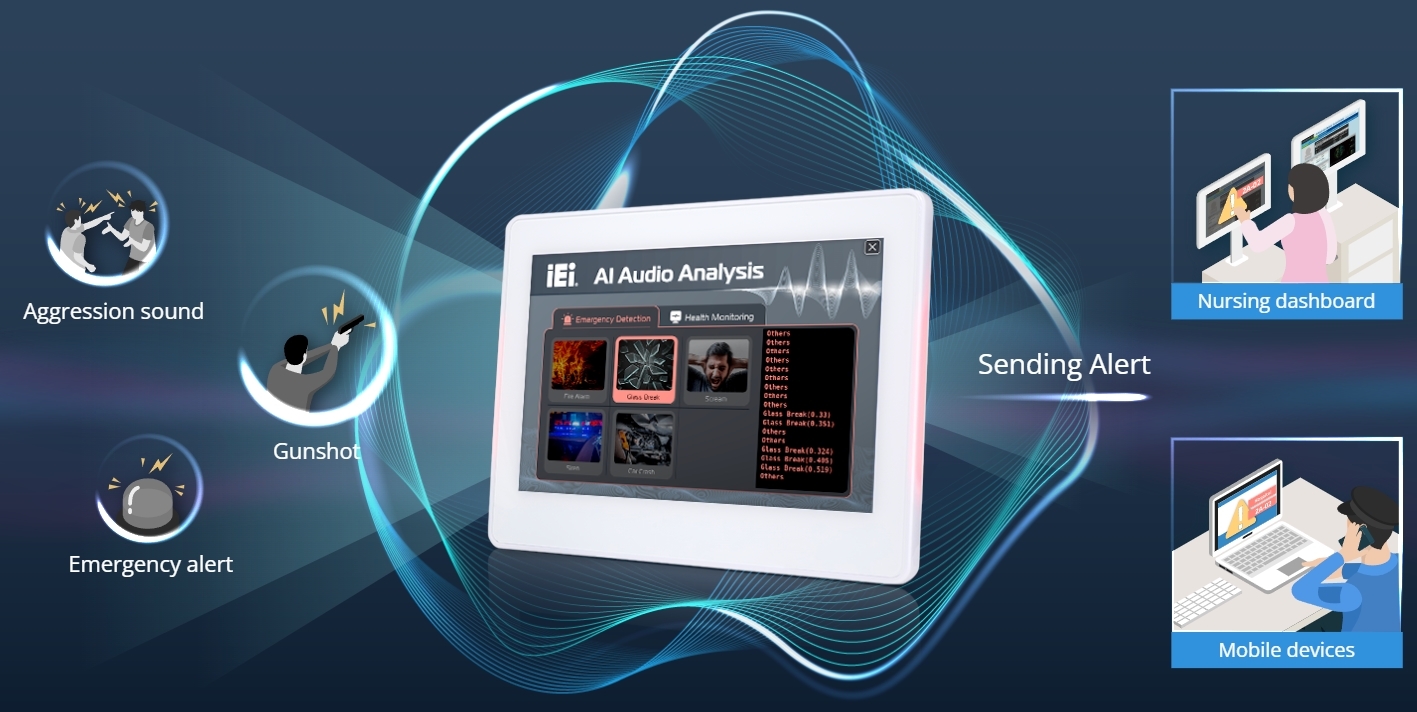

AI Audio Analytics Workflow
IASO-W10B-N6210 provides fully deep learning-based, top-quality AI audio analytics. Real-time detect emergencies in the hospital lounge/ward, including under-staffed areas, restricted areas and surveillance blind spots. Notify staffs to enable faster response and reduce rescue time.

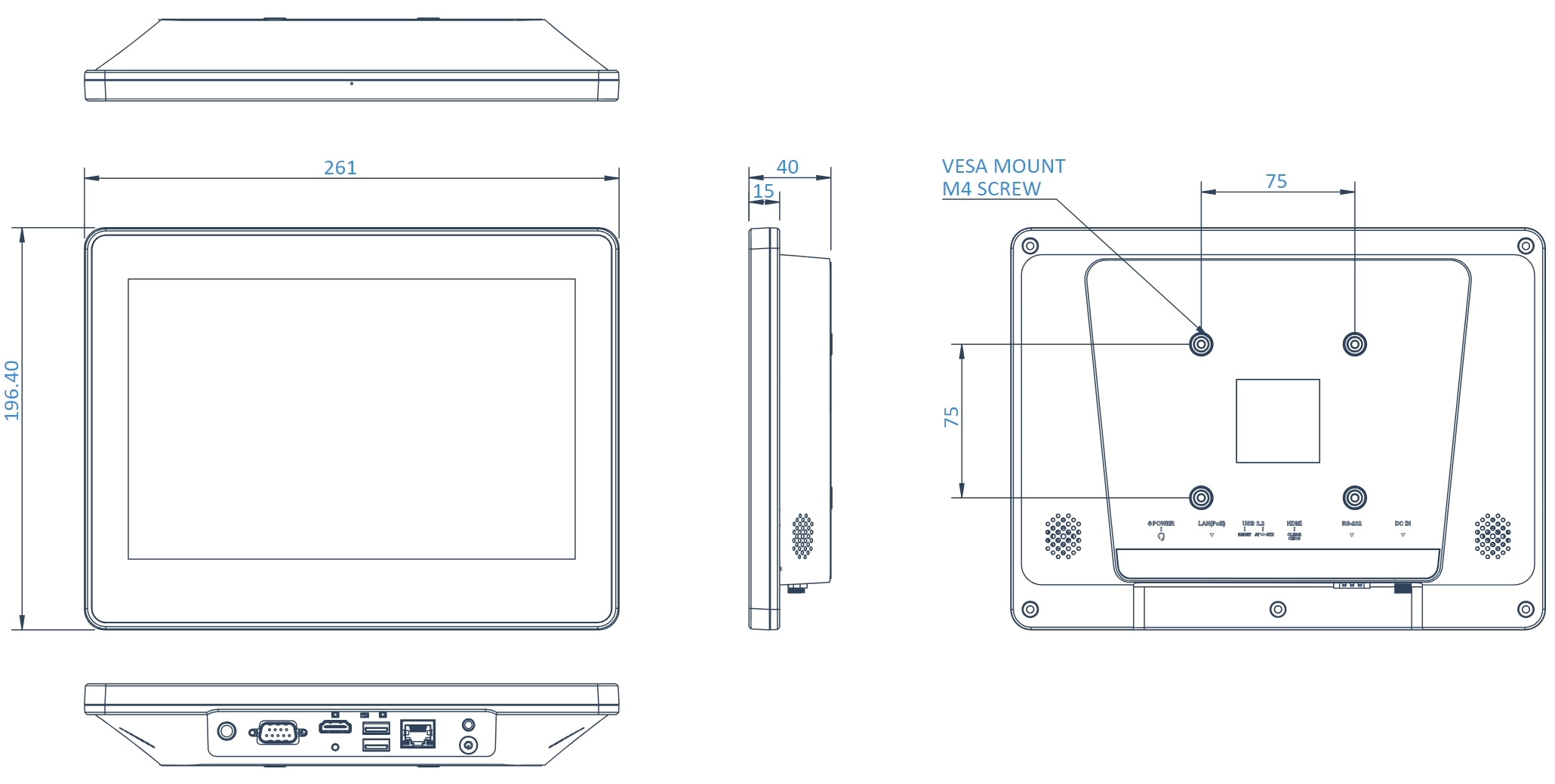

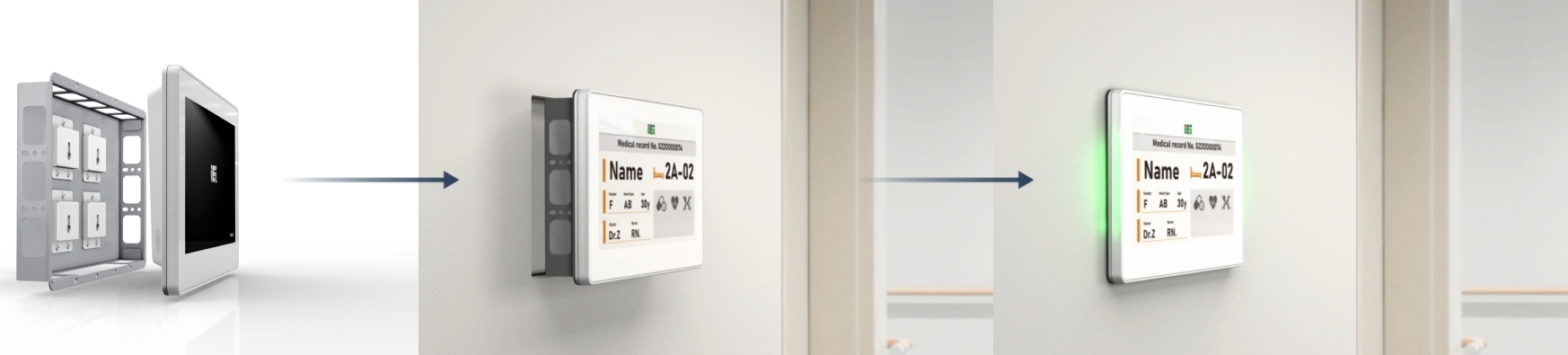

In-Wall Mounting
- Easy maintenance - just removing five screws for disassembly
- IASO-W10B-N6210 can be embedded in or on the wall.
For more information, please see
Data Sheet
