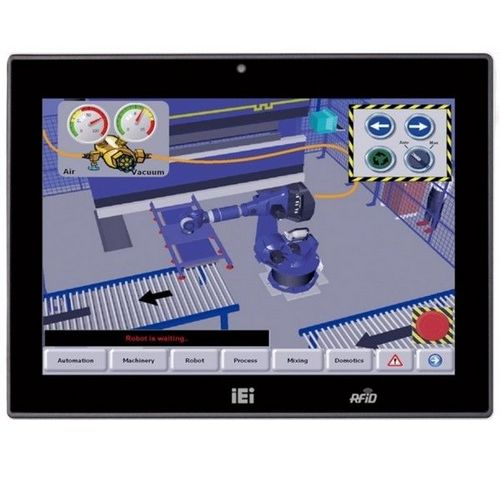

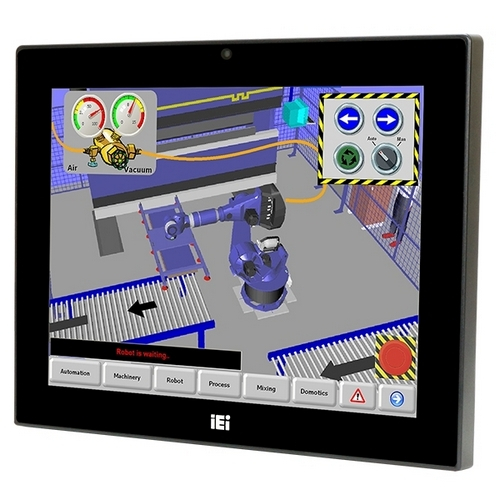

IEI, AFL3-12A-BT-J1/R/2G-R16, AFOLUX Series 12.1", 500 cd/m², XGA Fanless Panel PC with Intel® Celeron® J1900 Quad Core 2 GHz, 802.11 A/B/G/N/AC Wireless Module, Resistive Touch Screen, 2GB DDR3L RAM, with AG, R16

AFL3-12A-BT-J1/R/2G-R16 Includes Only:

1 x AFL3-12A-BT
10 x Screw Pack M2
1 x Power Adpater
1 x Touch Pen
1 x RJ45 to RS-232 Transfer Cable

Features:

12" light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

Inputs and Outputs

Dimensions

For more information, please see pdf file Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

LCD

Size

12.1”

Resolution

1024 x 768 (4:3)

Brightness (cd/m²)

500

Contrast Ratio

700:1

LCD Color

16.2M

Pixel Pitch (mm)

0.240 (H) x 0.240 (V)

Viewing Angle (H-V)

160° / 140°

Backlight MTBF(hrs)

50000 hrs

Touch

5-wire resistive with RS-232 interface (anti-glare coating)
Projected capacitive with USB interface (anti-UV / anti-glare coating)

Touch Controller

PenMount DMC9000/ EETI EXC3146

Motherboard

CPU

Intel® Celeron® J1900 (quad core, 2.0 GHz)

RAM

One 204-pin 2 GB 1333MHz single-channel
2GB DDR3L SO-DIMM pre-installed (system max. 8GB)

Ethernet

2 x PCIe GbE by RTL8111HN-CG controller

Audio Codec

Realtek ALC 888S

Storage

1 x mSATA
1 x 2.5” SATA 3Gb/s HDD bay

I/O Ports & Switch

1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power Button
1 x Audio port (line-out)
1 x Reset button
1 x at /ATX switch
1 x 9-30V lockable power jack

Audio

AMP 3W + 3W (internal speaker)

Camera and Microphone

2-megapixel with low light function, digital microphone

OSD Function

Software OSD

Physical

Front Panel Construction

PC + ABS Plastic

Mounting

Panel
Wall
Rack
Stand
Arm
VESA 75mm x 75mm / 100mm x 100mm

Dimensions (WxHxD) (mm)

304 x 243 x 44

Cut-out Dimensions (WxH)
(mm)

243 x 205

Net/Gross Weight (kgs)

1.92/3.95

Environment

Operating Temperature
(Ambient with air flow)

-20°C ~ 50°C

Storage Temperature

-20°C ~ 60°C

Humidity

10% to 95% (non-condensing)

IP Level

IP 64 compliant front panel

Safety & EMC

CE / FCC

Thermal Solution

Fanless

Power Requirement

9 V ~ 30 V

Power Consumption

12V at 3.58A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)

Notes
