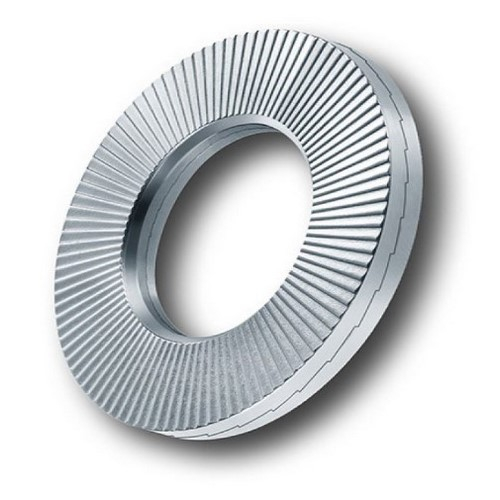

HEICO HLS-45 Heiko-Lock Wedge Washers, Steel, Zinc-Flake Coated

Type: Outer Diameter 2.756 Inch, Steel, Zinc-Flake Coated, Pair
  • Brand HEICO
  • Part # HLS-45
  • Model # Heiko-Lock
  • Condition
    Brand New
  • List Price
    $10.71
    • Sale Price
      $10.50 Pair
Availability
Typically In Stock
Check Availability
Quantity
Notify Me if The Price Drops
Share:

Options and Related Products

Type:
Type: Outer Diameter 2.756 Inch, Steel, Zinc-Flake Coated, Pair

HEICO, HLS-45, Heiko-Lock Wedge Lock Washers Standard Diameter, Steel, Zinc-Flake Coated

Features:

  • Certified system for securing bolts, working at low and high preload levels
  • Particularly suitable for dynamic loads - including when using lubricants
  • Can be re-used
  • Very easy to install and remove (wedge lock washers are supplied as a pre-assembled pair)

When the bolt is tightened, the external radial teeth of the HEICO-LOCK Wedge Lock System embed themselves in an interlocking fashion with the respective mating surface.

If the securing system is subject to dynamic stress, movement is only possible between the internal washer surfaces. This results in an increase in the clamping force.

In addition to HEICO-LOCK® Wedge Lock Washers made from steel [1.1191 / C45E] and stainless steel [1.4404 / 316L] we also produce products from other special materials like 254 SMO® [1.4547] and INCONEL® / Alloy 718 [2.4668]. These special materials are resistant in highly corrosive environments (i.e. seawater or acids) with a high temperature stability. This leads to a wide variety of applications, especially within the offshore industry, energy sector, chemical industry and many more.

Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
TypeSteel (Narrow)
M45
UNC1-3/4"
Inner Diameter (in)1.819
Outer Diameter (in)2.756
Inner Diameter (mm)46.2
Outer Diameter (mm)70
Product Details
TypeSteel (Narrow)
M45
UNC1-3/4"
Inner Diameter (in)1.819
Outer Diameter (in)2.756
Inner Diameter (mm)46.2
Outer Diameter (mm)70
Note

Note: Please read description carefully. Do not base your order on the picture presented.
