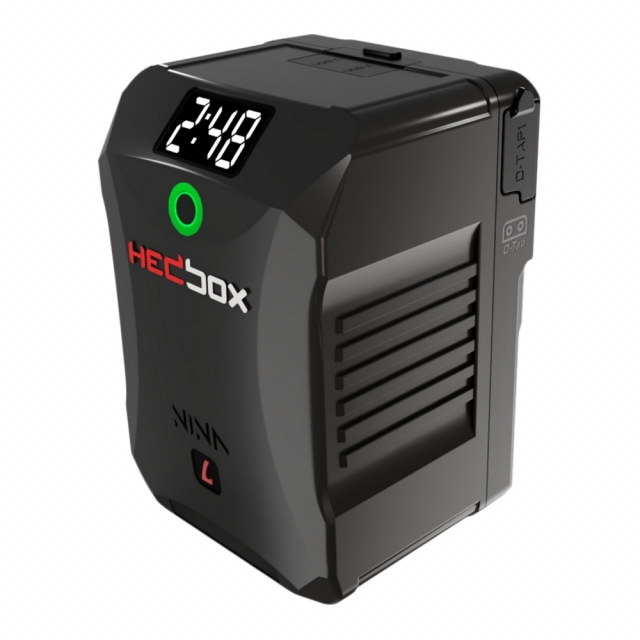

Hedbox NINA-L SMART Mini V-Mount Battery 150 Wh LCA

Hedbox, NINA-L, SMART Mini V-Mount Battery, 150 Wh, LCA Low Capacity Alarm, OLED Display with IDR System, 2x D-Tap, USB-A and USB-C Out

NINA-L Includes Only:

• 1 x Advance Li-Ion Battery pack
• 1 x USB-C to USB-C LED Display Cable 1.2M
• 1 x User manual (English)

Features:

• Cine V Lock Mount (High Dur Aluminium)
• 14.8V / 150Wh / 10050mAh
• 15A / 250W Max Load
• USB-A Output 5V / 3A
• USB-C Output 5V to 22V / 3.25A (65W)
• 2x D-Tap Output 16.8V / 15A
• IDR - Indication Display Ring
• OLED Information Display
• Cell Frame Technology

The NINA series by Hedbox introduces a compact mini Smart Battery Pack with high performance and safety design. A notable feature is the LCA Low Capacity Smart Alarm, alerting users when the battery is below 20% capacity. The IDR Identificational Display Ring provides control and shows battery status. The high-contrast OLED Display offers clear visibility of Battery Capacity, Remaining Operational Time, Battery Circle usage, and Charging function day and night. With an extra 2xD-Tap DC output, USB-C, and USB-A ports, the NINA can power various accessory devices. Conveniently, the D-Tap and USB-C power input allow the battery to be charged using standard USB or D-tap chargers.

SMART Low Capacity Alarm (LCA)

Hedbox R&D is excited to introduce a groundbreaking innovation to the worldwide video & photo market: a cutting-edge continuous Smart monitoring alarm designed for low battery capacity. With a pending patent, IDR Emergency ALARM is engineered to activate when the battery capacity level drops below 20%. It triggers a distinctive and easily visible flashing IDR ring in silent mode (no buzzer). This exclusive feature serves as a prompt for users, signaling that the battery has fallen below the 20% capacity threshold. Upon presing the IDR Button, the user verifies the low capacity, and the OLED Display begins to indicate the current battery status.

Capacity Percentage Display

Upon pressing the IDR button (Indication Display Ring). The OLED Display shows the battery capacity status in percentage (%).

Remaining Time Display

Upon pressing the IDR button (Indication Display Ring). The OLED Display shows the battery capacity remaining time in minutes

Total Usage Display

Upon pressing the IDR button (Indication Display Ring). The OLED Display shows the total usage of the battery lifetime. The usage is counted per circle (one circle is total of 10Ah energy supplied)

Charging Display

In battery charging process, regardless of the power input source. The OLED Display shows the charging process of the battery. The charging readout is shown as an indication and a percentage.

V - Mount Connection Holder

NINA L has a standard V-Mount connection. The V-Wedge is made from a special structure of high-quality dur-aluminum. This material enables safe, rugged, and reliable mounting of the battery on all products on which the battery will be used..

Battery Charging OLED Display

Throughout the battery charging process, regardless of the power input source, the OLED display on the battery provides a real-time depiction of the charging progress. The charging indication progress visibly displays the current state of the battery capacity status, which is measured per one percent (1%).

Additional Power Out's USB-C, USB-A and 2x D-Tap

By integrating additional connections on both sides of the battery, the NINA M battery incorporates a D-Tap DC Power output. This feature enables the battery to deliver dual power outputs of 16.8V, 135W/8A each. Additionally, it includes an extra USB-A port with power outputs of 5V/3A, 9V/2A, and 12V/2A. Furthermore, a USB-C port is capable of supporting 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/3.25A (65W).Both USB outputs are compatible with various charging protocols such as PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A.This versatile configuration enables users to power other accessories using a single battery.

Low Capacity Alarm Display

When the total Battery capacity drops below 20%. The Smart IDR Ring starts fleshing Red color (silnet mode).

Overpower Alarm Display

When the Battery is overpowered during the draining. The Smart IDR start flashing, and the OLED Display shows the OP Alarm.

High Temperature Alarm Display

When the Battery reaches a High Temperature during operation. The Smart IDR start flashing, and the OLED Display shows the OT Alarm.

Low Temperature Alarm Display

When the Battery reaches a Low temperature during operation. The Smart IDR start flashing, and the OLED Display shows the UT Alarm.

USB-C LED Cable Included

The cable has an LED display that in real-time show charging power, charging status. Built-in smart chips monitor the charging power and adjust current and voltage automatically, avoiding damage to the battery in case of an unstable current. (Please note display module just show charging power, it neither increases nor decrease charging current)

• Cable Lenght: 1.2m / 3.93 ft
• Cable Type: USB-C to USB-C
• Power Delivery 3.0, Qualcomm Quick Charge 5.0 protocol (2.0/3.0/4+)
• Super fast charging 2.0 and PPS 65W/45W/25W

Design made in Switzerland

With R&D (research & developing) department located in Switzerland - Europe, Hedbox team has an innovative approach to battery and power management product design.

Eco-Green Consistency

All materials used in Hedbox Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.

IATA Transport Regulations

All Hedbox warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all products worldwide via air, road and sea.

For more information, please see Data Sheet
