Hall Research
VGA + Audio + RS232 Over UTP Receiver

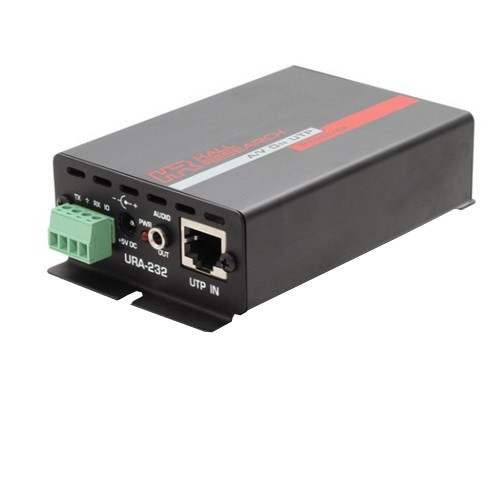

Hall Research URA-232 VGA + Audio + RS232 Over UTP Receiver

Part #:
URA-232
Condition:
Brand New
Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Connectors (1) RJ-45 Female (CATx Input) (1) HD15 Female (Video Output) (1) 3.5mm Female (Audio Output) (1) 2.1mm Female (Power Input) (1) 4 Position TB
  • Enclosure Metal
  • Power Supply 100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2A regulated; 2.1mm
  • Mounting Brackets at each end with screw hole provided for Wall or Rack mounting
  • Frequency Response 20hz to 20kHz, +/- 1 dB
  • Resolution Up to 1920x1200 non-interlaced at 60Hz
  • MTBF 90,000 hours
  • Vibration ISTA 1A in carton (International Safe Transit Association)
  • Safety CE
  • Impedance 75 ohms
  • Cooling Convection, vents on each end
  • Video Standards VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync)
  • EMI/EMC CE/FCC Class A
  • Max Distance Up to 1000 feet depending on resolution
  • Video Gain Unity
  • Nominal Amplitude 1 V p-p for Y of component video 0.7 V p-p for RGB and for Pr and Pb of component video 4.0 V to 5.0 V p-p, for TTL Sync signals of RGBHV, RGBS
  • Audio Gain Unbalanced output: 0 dB
  • Audio Type Monaural, Simulated Stereo (L+R)
  • THD + Noise 0.2% at 1kHz, 0.3% at 20kHz at nominal level
  • Temperature Humidity Storage: -40 to +158 degF (-40 to +70 degC) / 10% to 90%, non-condensing Operating: +32 to +122 degF (0 to +50 degC) / 10% to 90%, non-condensing
