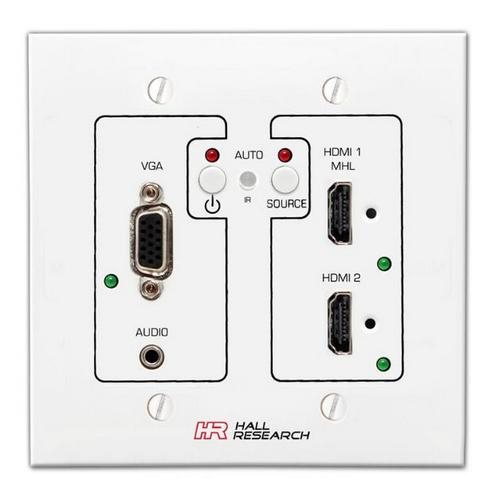

Hall Research UHBX-SW3-WP VGA and Dual HDMI Auto-Switching Wall-Plate

Hall Research, UHBX-SW3-WP, VGA and Dual HDMI Auto-Switching Wall-Plate with HDBaseT

The UHBX-SW3-WP is a multi-input Switcher/Sender with HDBaseT output. The wall-plate accommodates 2 HDMI and 1 VGA inputs with audio. The VGA input also accepts YPbPr Component video. The sender can manually or automatically switch between the various inputs and extends the video using HDBaseT standard. To control the power on/off function of the remote display, the wall-plate can generate RS232, and IR control signals which are extended using the same Cat6 cable. Virtually all VGA and HDMI resolutions are supported including 4K (UHD). 4K video can be extended to 330 ft (100m) while 1080p signals can go as far as 500 ft (150m). The wall-plate is powered through the same cable from the receiver using PoH (Power-Over-HDBaseT) standard, making installations as simple as possible. The UHBX-R-PSE receiver includes a small power supply and provides HDMI, RS-232 and IR outputs. To ensure a proper image on the display, the wall-plate's VGA input is scaled to 1080p. This eliminates compatibility issues with various notebook or PC VGA formats that may not be displayable on an HDMI TV if not scaled to a standard HDTV resolution such as 1080p. The user can also configure the unit to pass-through 3.5 mm audio input from an MP3 audio player independent of the VGA signal.

Features:

• 2 HDMI inputs and 1 VGA input
• Supports all HDMI resolutions including 4K (UHD)
• VGA input is scaled to 1080p to ensure proper image on all HDMI displays
• Manual or automatic input selection
• Automatic Control of display power via RS-232
• Uses only one Cat6
• Distance to 500 ft (150m) at 1080p, or 330 ft (100m) at 4K resolution
• IR Extension
• Uses PoH and does not require a separate power supply
• Charges mobile sources while showing video
• USB port and free Windows software for easy configuration
