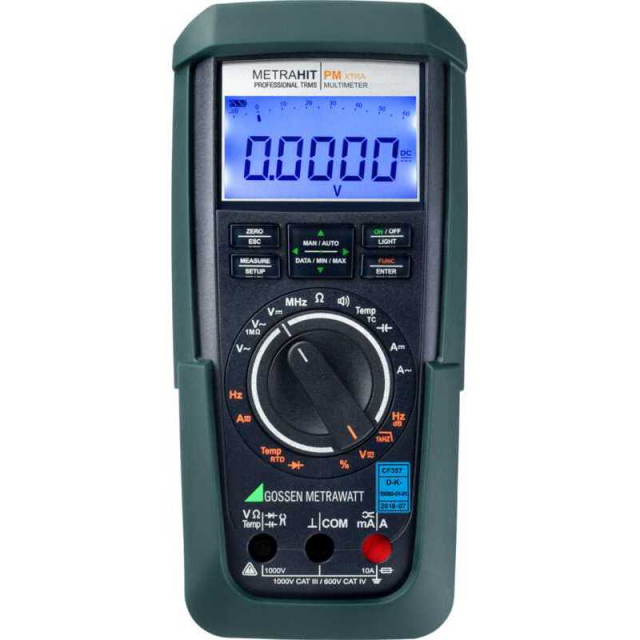

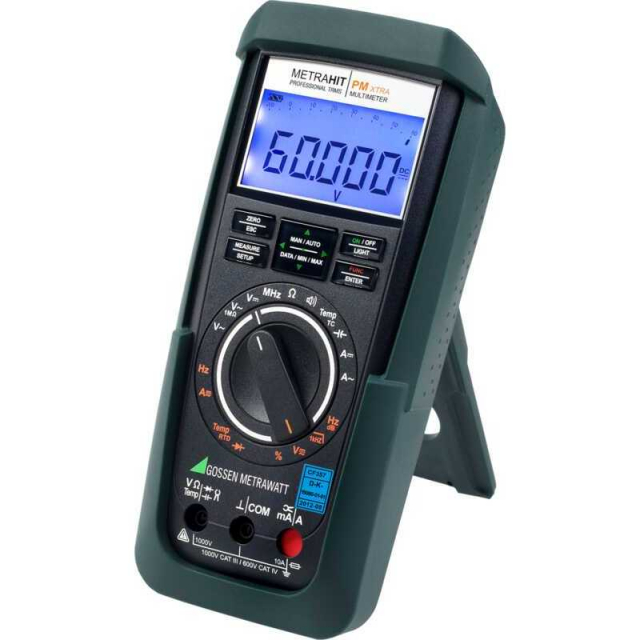

Gossen Metrawatt, M250A, MetraHit PM Xtra High-End TRMS System Multimeter with Digital Display, Data Logger and IR Interface
M250A Includes Only:
- 1 Multimeter
- 1 Pair of safety measurement cables (1.5 m) with 4 mm test tips, 1000 V CAT III, 600 V CAT IV (KS17-2)
- 1 HC20 hard case
- 2 Batteries, 1.5 V, type AA
- 1 Condensed operating instructions, English/German
- 1 CD ROM with operating instructions in German and English
- 1 DAkkS calibration certificate
- 1 Rubber holster
Features:
- TRMS AC, AC+DC measurement up to 100 kHz for voltage and current
- Data logger for 61,600 measured values and IR interface for PC
- Power pack connector socket
- The increased refresh rate of the LCD reacts directly and without time delay to changed adjustments, e.g. of a potentiometer
- Universal use in all fields of electrical engineering!
- TRMS measurement up to 100 kHz with digital display (60,000 digits) and analog scale
- Measurement of voltage and current, DC, AC and AC/DC, dB, ΔREL, resistance, temperature, frequency, duty cycle, capacitance, continuity/diodes
- Automatic measuring range selection and measured value storage
- Safety for the user and the instrument in measuring categories CAT IV up to 600 V and CAT III up to 1000 V
- 26 multimeter functions
- Auto-ranging current measurement from 10 nA to 10 A (16 A) via a single connector jack and a single fuse
- Clip function for TRMS current measurement with sensors and transformers
- Additional filter function and voltage measurement with reduced input impedance for limiting interference, e.g. for measurements at frequency converters
- Automatic and manual measuring range selection
- Zero adjustment
- 2 MB Data memory for 61,600 measured values for long-term measurements with Data logger function
- Infrared interface for communication with the PC
- Large, light-blue Illuminated display with eXtra-large characters (15 mm) and an analog bar graph for dynamic processes
- Separate battery and fuse compartments
- Power pack connector socket for operation without batteries
- Patented automatic blocking sockets (ABS)
- Rubber holster for protection against shocks and impacts
Applications:
- The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc.
- The instrument can be used in the field and is equipped with an internal, mains-independent power supply.
- The additional power pack connector socket is ideal for long-term measurements and laboratory use.
The MetraHit PM Xtra is the top-of-the-line instrument of the MetraHit Professional Multimeter series. Ultramodern, high-quality measuring instruments with unparalleled precision: 60,000 digits and 0.05% basic accuracy ensure extremely reliable results. Ultramodern technology provides for Maximized safety. The diverse range of functions covers a broad spectrum of demanding measuring tasks. The innovative and ergonomic design makes it a pleasure to work with day after day.
