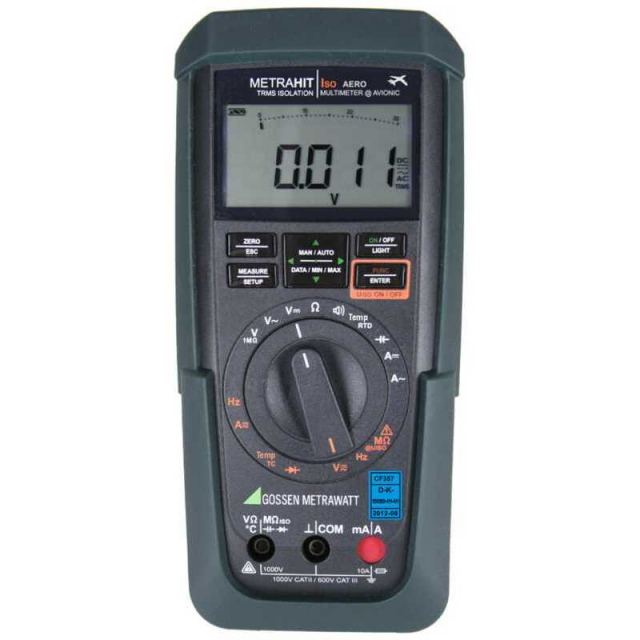

Gossen Metrawatt, M246M, MetraHit ISO Aero TRMS Multimeter with Insulation Measurement for Avionic Services, ±30,000 Digits
M246M Includes Only:
- 1x Insulation multimeter MetraHit ISO AERO
- 1x Protective rubber cover
- 1x Condensed operating instructions
- 1x DAkkS calibration certificate
- 2x Batteries, 1.5 V, type AA, installed
- 1x Power pack NA X-TRA
Features:
- Multimeter with diverse functions (V, Ohm, F, Hz)
- An activatable low-pass filter, 1 kHz / -3 dB in the V AC range
- Direct current measurement, 100 nA to 10 A
- Current measurement with current sensor clamps - CLIP, A transformation ratio of 1 mV:1 mA to 1 mV:1 A can be selected and is taken into consideration at the display.
- Precision temperature indicator, °C or °F, for Pt100 / Pt1000 sensors and type K thermocouples
- Diode measurement (Ishort = 1 mA, Uflow to 5.1 V) and continuity testing
- Acoustic signals for continuity testing, dangerous contact voltages, exceeded overload limits
- Min-Max value storage
- Data memory and internal clock, power pack adapter socket
- IP 54 Housing protection, dust and splash protection, protective cover
- Bidirectional infrared interface for exchanging Data with a PC
- Windows software uses as an accessory for processing and graphic display of measured values
Special version for avionics services with special low-voltage insulation measurement and Data Hold function.
