Buy Gossen Metrawatt GTM5202000R0001, Phase Sequence Indicator - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

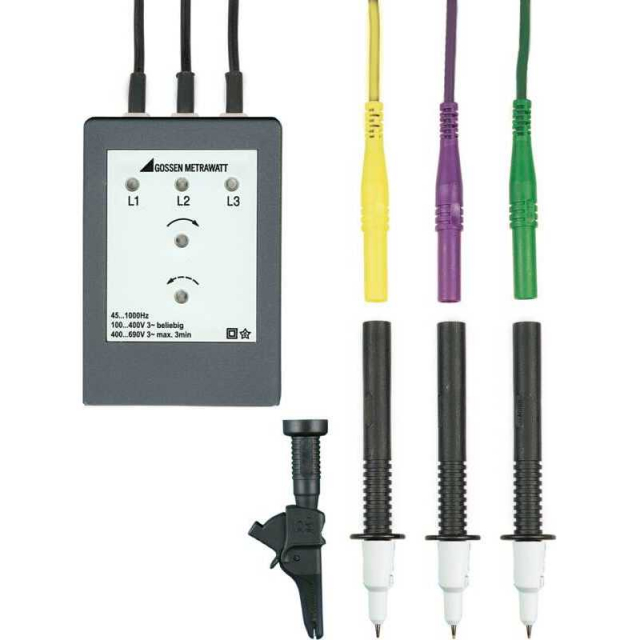

GTM5202000R0001 Includes Only:

1 phase sequence indicator
3 permanently attached connector cables with contact-protected plugs
3 plug-in test probes, each with safety cap applied (600 V CAT III, 1 A)
1 plug-in alligator clip (1000 V CAT III, 16 A)

Features:

Compliance with Equipment Standards EN 61557
Phase Sequence Testing in 3-Phase Systems
Testing for Phase Failure
Large Voltage and Frequency Ranges
Rugged Design

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Electrical Ratings

Nominal Voltage Range: 100 to 230/400 V / 400 to 690 V / 3~ < 3 min
Nominal Frequency Range: 45 to 1000 Hz
Nominal Insulation Voltage: 250 V to ground
Test Voltage: 3 kV
Measuring Category: 600 V CAT III

Protection

Protection Class: II (protective insulation)
Protection Type: IP50

Construction

Case Material: Plastic
Flammability Rating: UL 94 V-0

Physical

Dimensions: 70 × 105 × 38.5 mm
Weight: 0.3 kg

Product Details

Electrical Ratings

Nominal Voltage Range: 100 to 230/400 V / 400 to 690 V / 3~ < 3 min
Nominal Frequency Range: 45 to 1000 Hz
Nominal Insulation Voltage: 250 V to ground
Test Voltage: 3 kV
Measuring Category: 600 V CAT III

Protection

Protection Class: II (protective insulation)
Protection Type: IP50

Construction

Case Material: Plastic
Flammability Rating: UL 94 V-0

Physical

Dimensions: 70 × 105 × 38.5 mm
Weight: 0.3 kg

Note: Please read description carefully. Do not base your order on the picture presented.
