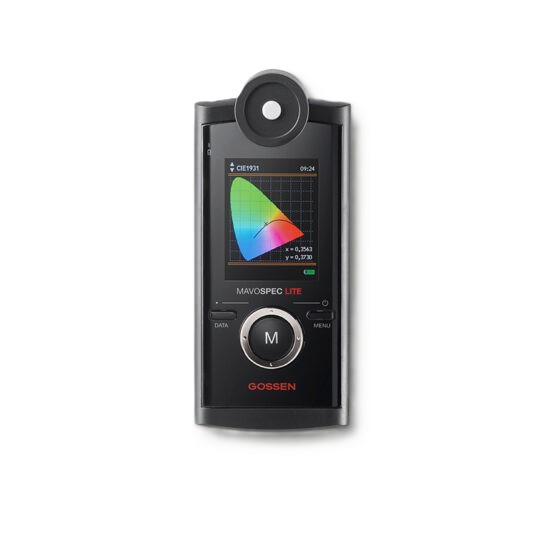

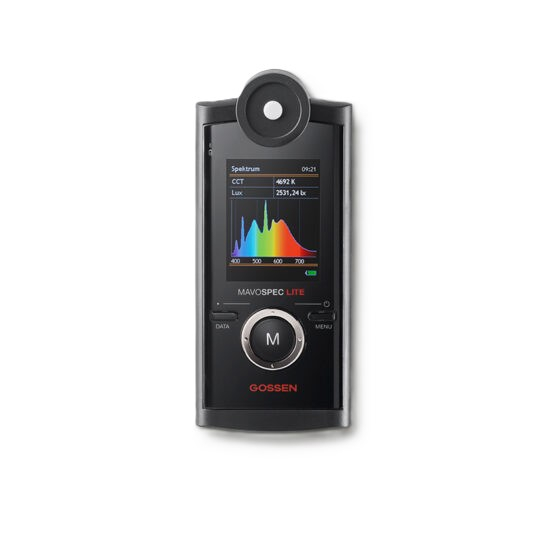

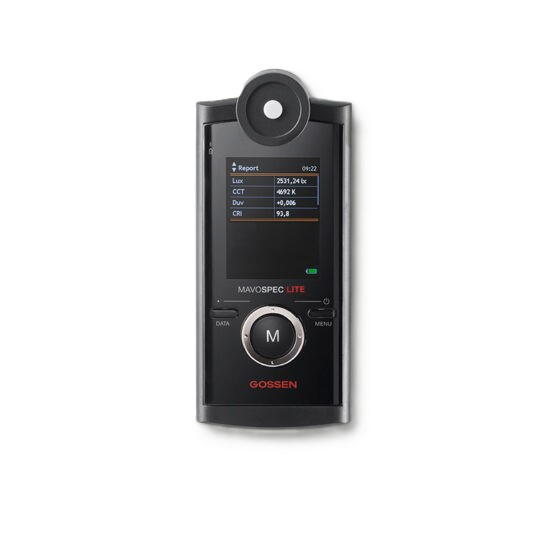

Gossen M530G MAVOSPEC Lite Spectrometer 4 GB MicroSD
Condition:
Brand New
Brand New $2,089.00 /Kit
Manufacturer warranty Description
M530G Includes Only:
- Spectrometer
- Wallet,
- Carrying strap,
- Rechargeable battery,
- USB cable,
- Battery charger,
- 4 GB MicroSD memory card,
- Instruction manual and calibration protocol.
Technical details
Main features
- Interface USB 2.0
- Weight 150 g
- Sensor CMOS image sensor, 256 pixels
- Applications Daylight, LEDs, halogen and more
- Display 2.1" color TFT 320 x 240
- Signal-to-Noise Ratio 1000:1
- Operating Temperature 5 – 40 °C
- Controls 3 keys, ring controller
- Physical Resolution ~ 1.72 nm
- Data Storage 4 GB micro SD / 500,000 measurements
- Spectral Range 380 – 780 nm (VIS)
- Interface Protocol Open
- Automatic Shutdown Programmable for display + device
- Gamut Area Index GAI Yes
- Chromaticity Coordinates [u',v'] per CIE 1976 Yes
- Chromaticity Coordinates [u,v] per CIE 1960 Yes
- Selectable Units of Measure lx / °C – fc / °F
- Illuminance Evis 10 lx … 100 000 lx
- Color temperature CCT 1600 K … 50 000 K (Duv > – 0.1)
- Color temperature difference relative to the Planckian locus Duv (1600 K < CCT < 50 000 K)
- Color rendering index CRI per CIE 13.3 Ra, Re, R1 … R15
- Chromaticity coordinates [x',y'] per CIE 1931 Yes
- Configurable measured value display Yes
- Mains power pack 100 – 240 V (50/60 Hz) 0.15 A 5 V, 1 A (DC) USB port
- Power supply via USB port Yes
- Rechargeable battery Li-Ion 3.7 V – 890 mAh
- Rechargeable battery life ≥ 8 hours continuous operation
- Charging time with power pack 1.5 h
- Dimensions [H x W x D] 139 mm x 60 mm x 30 mm
- Diffusor light-entry surface Φ 7 mm
- Distance diffuser to surface to be measured 25 mm
- Error limit – cos like rating (f2') ≤ 3.00 %
- Full width at half maximum (FWHM) ≤ 15 nm (typically 12 nm)
- A/D converter 16 bit
- Wavelength reproducibility ± 0.5 nm
- Integration time automatic, manual 10 ms – 3000 ms
- Spurious light -25 dB
- Dark current compensation automatic via temperature sensor
- Measurement uncertainty illuminance * ± 3 %
- Reproducibility chromaticity * ± 0.0005
- Measurement uncertainty CCT * ± 2 %
- Measurement uncertainty CRI* ± 1.5 %
- Memory mode Manual, auto
- Data format CSV
