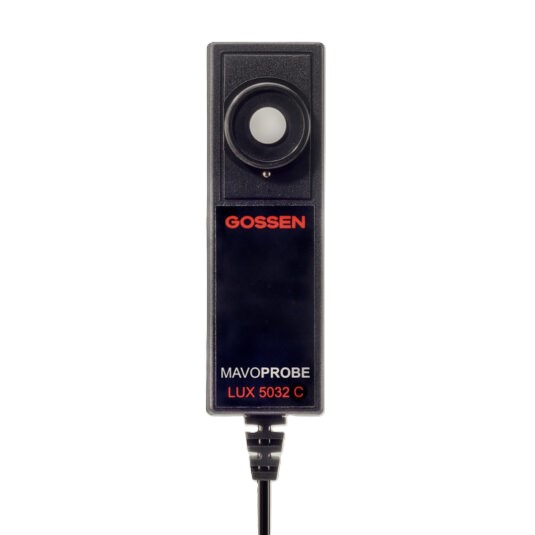

Buy Gossen M528G, LUX 5032 Measuring Probe for Illuminance Class C

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Illuminance:: Illuminance: 0.1 lx - 199 900 lx / 0.01 fc - 19 990 fc

M528G Includes Only:

Measuring probe
Operating instructions
Final test certificate

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Illuminance

0.1 lx … 199 900 lx /
0.01 fc … 19 990 fc

Luminance

1 cd/m²… 1 999 000 cd/m² / 0.1 fL … 199 900 fL with optional luminance adapter, not classified

Sampling rate

2/s

Measuring sensor

Silicon photodiode with V(λ) filter

Probe with ¼" tripod thread

Yes

Probe connector cable

1.5 m, plug-in, Binder
series 711 plug, 5-pin

Compliance with the Standards

DIN 5032-7 class C / DIN EN 13032-1 appendix B / ISO CIE 19476

Characteristic value – V(λ) matching (f1'), typical

< 7,5 %

Characteristic value – cos-like rating f2, typical f2

< 2 %

Temperature dependence

< 0.1%, temperatur compensated

Accuracy

± 3 % rdg ± 1 digit

Power supply

via USB

Interface

USB 2.0 with adapter cable

Software

MAVOSOFT

Operating temperature

-10 °C to +50 °C

Dimensions

33 mm x 115 mm x 27 mm

Weight

110 g

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Illuminance

0.1 lx … 199 900 lx /
0.01 fc … 19 990 fc

Luminance

1 cd/m²… 1 999 000 cd/m² / 0.1 fL … 199 900 fL with optional luminance adapter, not classified

Sampling rate

2/s

Measuring sensor

Silicon photodiode with V(λ) filter

Probe with ¼" tripod thread

Yes

Probe connector cable

1.5 m, plug-in, Binder
series 711 plug, 5-pin

Compliance with the Standards

DIN 5032-7 class C / DIN EN 13032-1 appendix B / ISO CIE 19476

Characteristic value – V(λ) matching (f1'), typical

< 7,5 %

Characteristic value – cos-like rating f2, typical f2

< 2 %

Temperature dependence

< 0.1%, temperatur compensated

Accuracy

± 3 % rdg ± 1 digit

Power supply

via USB

Interface

USB 2.0 with adapter cable

Software

MAVOSOFT

Operating temperature

-10 °C to +50 °C

Dimensions

33 mm x 115 mm x 27 mm

Weight

110 g

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
