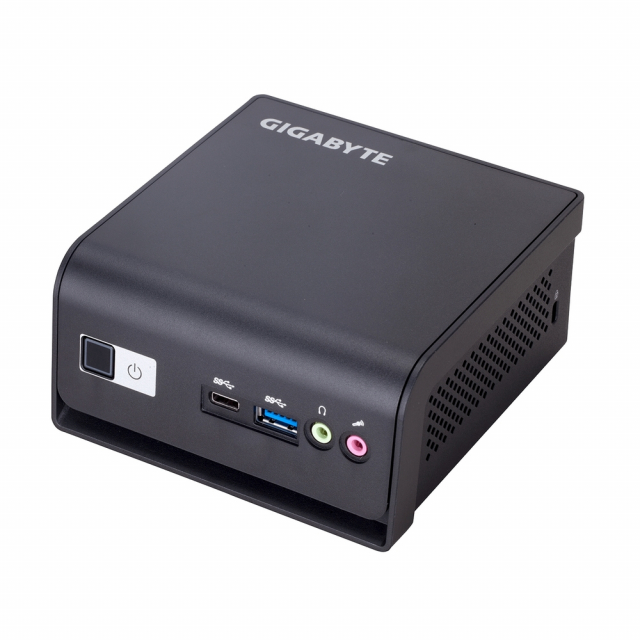

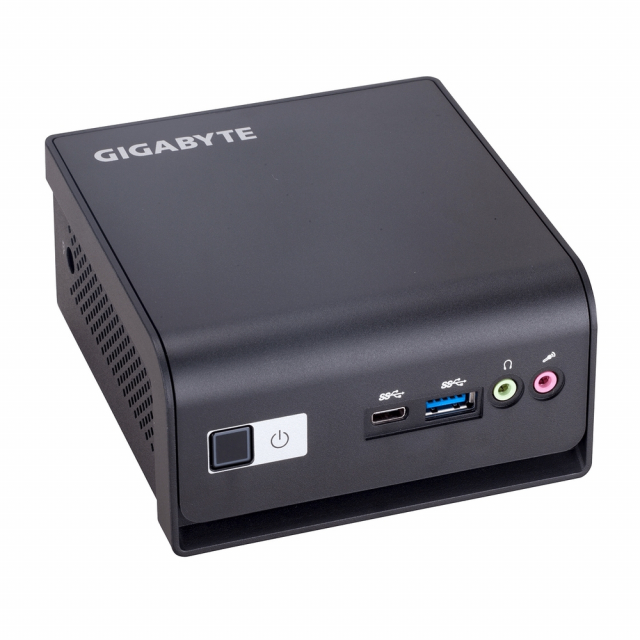

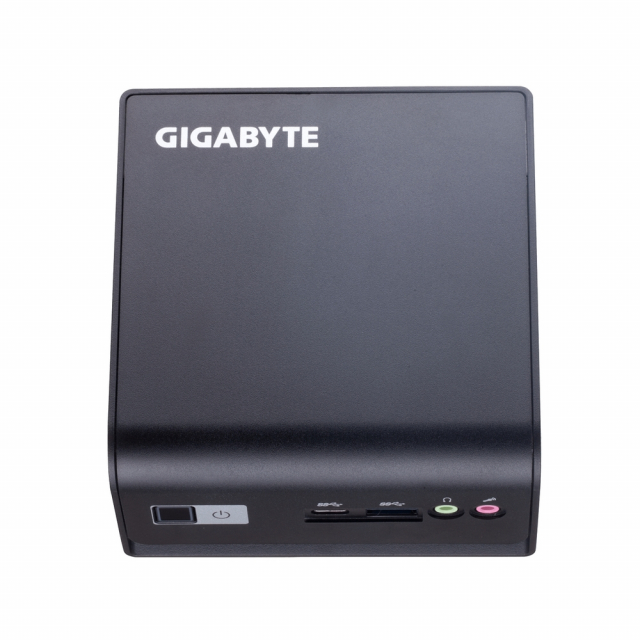

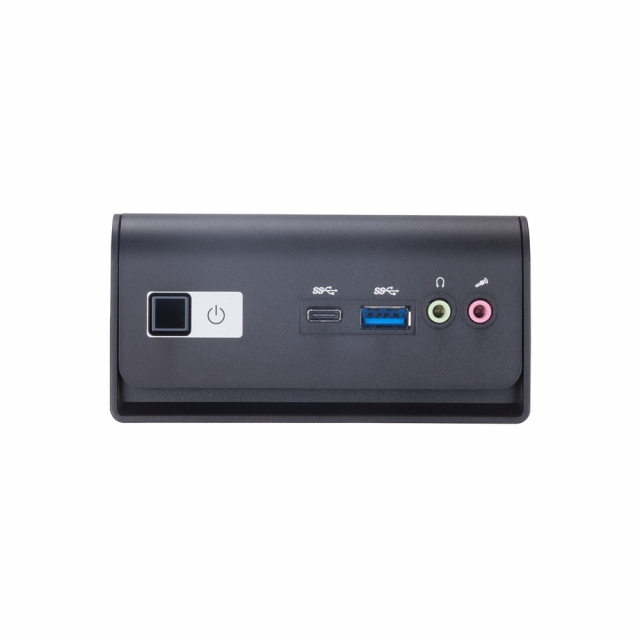

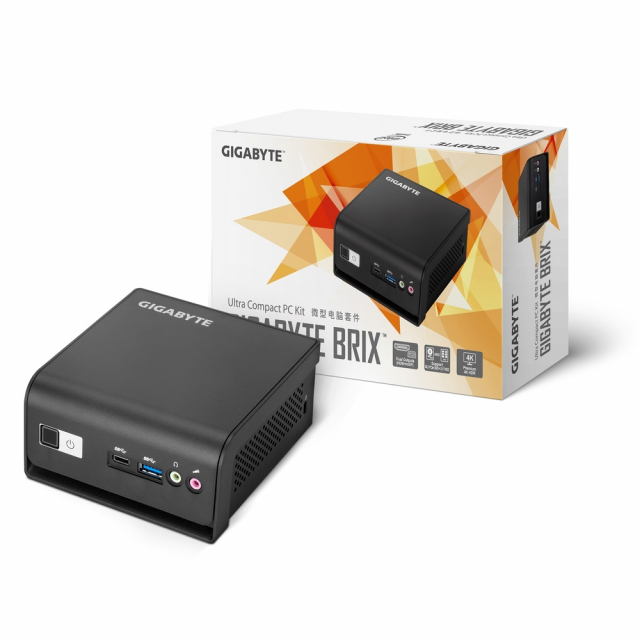

Gigabyte, GB-BMCE-4500C, Brix Ultra Compact PC Kit, Celeron N4500, Maximum 16GB, DDR4, Intel UHD, No OS Retail
Features:
- Fanless desigh with Intel® Celeron® Processor N4500 6W CPU
- Ultra compact PC design at only 0.67L (56.22x103x116.52mm)
- 1st 10 nm small core CPU
- Support M.2 2280 slot for SSD (support PCIe x2+SATA)
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB
- 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2
- Realtek 8111HS Gigabit LAN
- HDMI 2.0b supports 4K at60P HDR10
- MiniDP 1.4 supports 4K at60P HBR2
- Realtek ALC255 Codec
- 4 x USB 3.1 (1 x USB Type-C)
- Headphone Jack
- Mic-phone Jack
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
- AC-DC adapter: 100-240V input, 19V 65W
- OS Support: Microsoft Windows 10 64Bit
- 1x Kensington Lock slot
- System Environment Operating Temperature: 0°C to +35°C
- System Storage Temperature: -20°C to +60°C
Intel® Pentium® Silver and Celeron® Processor
BRIX use the Intel® Pentium® Silver and Celeron® processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.
Latest Intel 10nm Pentium Silver/ Celeron Processor Performance
Intel's small processor is much more powerful than before. Thanks 10nm manufacturing processing and core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP.
Dual Storage Support
BRIX can not only support PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5" HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

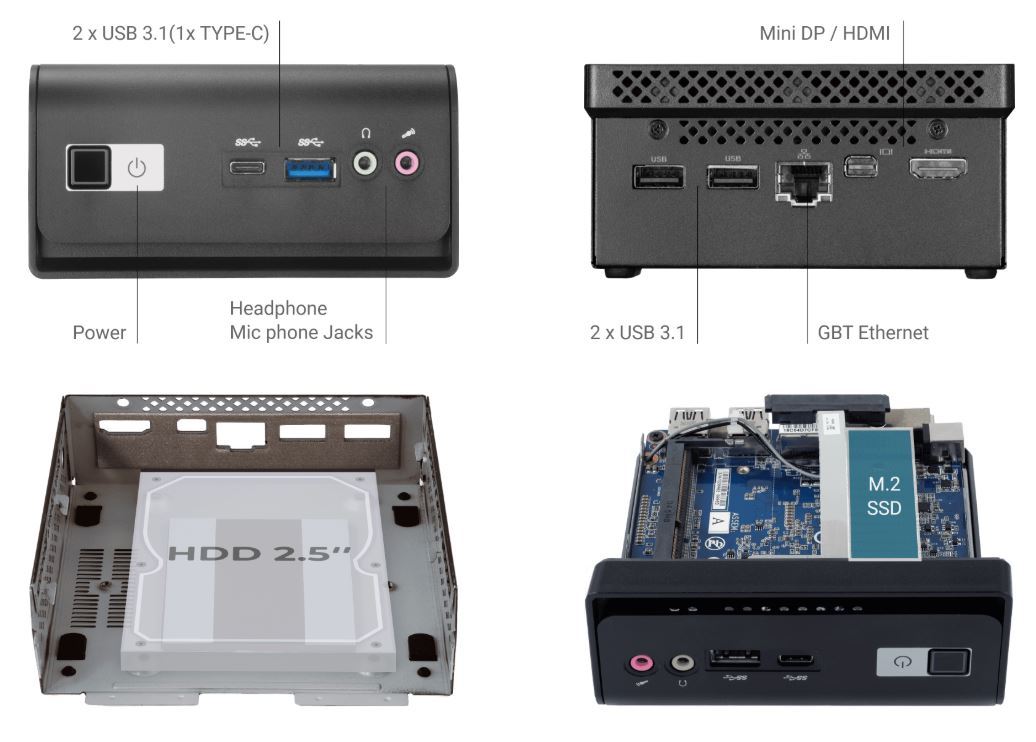

System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.
