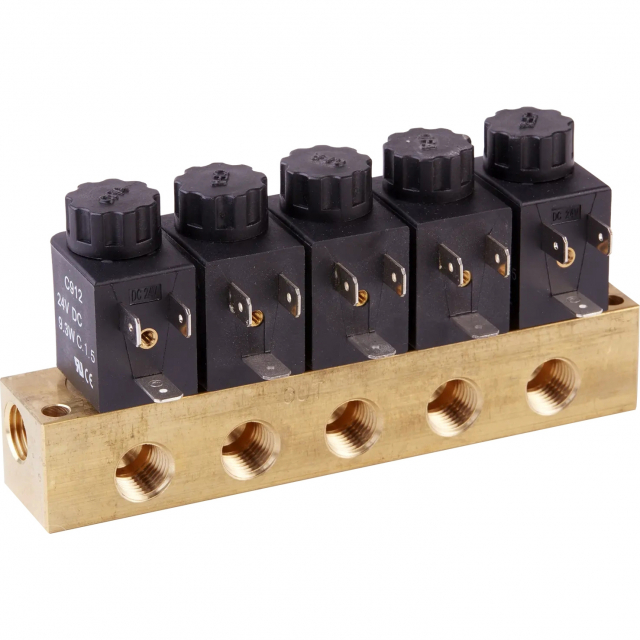

GC Valves, SC951YH24VBBA5, Brass 1/4" NPT Five Station Manifold Direct Acting Valve with FKM Seal

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Stations	5
Operating Mode	2W NC
Coil Housing	DIN
Coil Class	H Class
Coil Voltage	24V/60HZ
Seal	FKM
PSI AC	203
PSI DC	87
Tube Material	Brass
Body Material	Brass
Pipe Size	1/4"
Orifice	2.4mm
Media Type	Aggressive Media, Air & Neutral Gases, Light Oil, Slightly Aggressive Media, Water
Approvals	cURus, CE
Operating Temperature	32°F to 125°F

Stations	5
Operating Mode	2W NC
Coil Housing	DIN
Coil Class	H Class
Coil Voltage	24V/60HZ
Seal	FKM
PSI AC	203
PSI DC	87
Tube Material	Brass
Body Material	Brass
Pipe Size	1/4"
Orifice	2.4mm
Media Type	Aggressive Media, Air & Neutral Gases, Light Oil, Slightly Aggressive Media, Water
Approvals	cURus, CE
Operating Temperature	32°F to 125°F

Note: Please read description carefully. Do not base your order on the picture presented.
