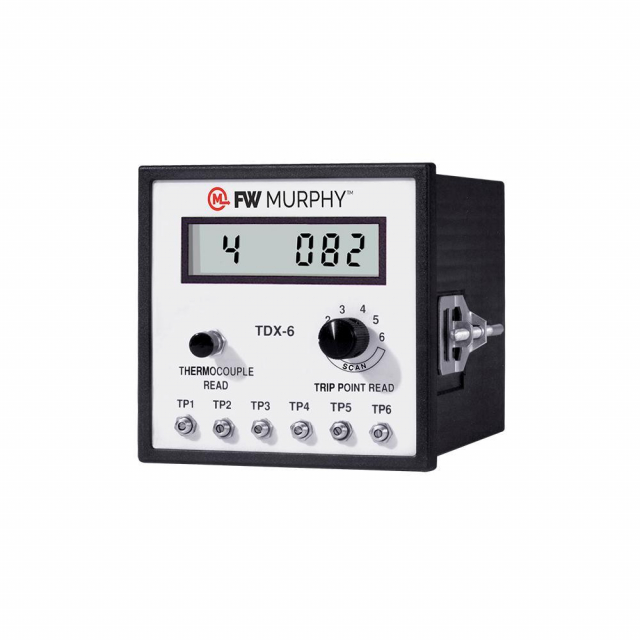

FW Murphy 10703068 TDX6-D-F-J Temperature Scanner/Pyrometer

Features:

• Scans 6 channels
• Adjustable trip points
• Rated for class I, division 2, group D hazardous areas
• Start-up time delay
• Easy to read digital display

The TDX6 is an advanced design six-point temperature scanner and pyrometer. It continually scans up to six thermocouples and sequentially displays the thermocouple number and its reading. Each sensor input has a field settable trip point for alarm, shutdown or control. A read/scan selector allows the operator to set and view each trip point. With the selector in the scan mode, a thermocouple read push button provides a means to manually toggle through the six channels and to lock in on a specific channel. Normal scanning will resume approximately three seconds after releasing the push button. All trip points are continually armed and active during the scanning process.

Applications:

• Gas Compressor Suction/Discharge Temperature
• Engine/Compressor Jacket Water Temperature
• Process Temperatures
• Generators
• Pumps
• Engine Exhaust Temperature

For more information, please see Data Sheet
