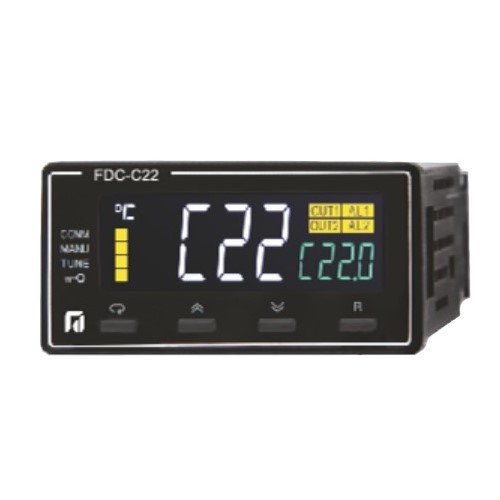

Future Design Controls FDC-C22-4-2-0-0-00 PID Process Control

Future Design Controls, FDC-C22-4-2-0-0-00, C-Series High Performance PID Process Control, SSRD, 5VDC / 30mA

Features:

• Multi-Color Display
• Low Cost High Performance PID Control
• Universal Input T/C-RTD, VDC, mA, mV
• CT inputs (2) with Heater Break/Short Alarm
• Simple to Use & Configure
• SEL configurable prompt sequence
• Alarms configurable with Time Delay "active"
• Soft Start: Power up configurable PID % Out on time or passing through a PV threshold
• PID Fuzzy Assisted Auto Tuning
• Setpoint Logic: Static or Ramp Rate

Ease of Use

The multi-color LCD display, configurable space for output annunciation, PID % output, count down timer or Profile information provide operators with an ease of use not found in this class of instruments. In addition the SEL function provides additional flexibility & operator ease of use by allowing configuring those parameters significant to the operator [up to 8] to display in sequence when the scroll key is depressed. [P, I, D, Shift, Cycle 1, deadband, etc., or nothing displayed].

Input Resolution and Auto Tune

With the highest input resolution for like products, fast scan rate and proprietary Fuzzy Logic Auto Tune the C-Series provides world-class control performance.

Ramp to Setpoint

Ramp Rate to setpoint in degrees per minute or hour with a Soak

Applications:

• Oven - Furnaces - Kilns
• Hot Plates / Melt Pots
• Food Service Equipment
• Environmental Chambers
• Sterilizers / Autoclaves
• Packaging Machines
• Plastics Machinery: Extrusion, Injection, Molding, etc.
