Buy Fibox UL PC F 85 G, PICCOLO Enclosure, Gray Cover, 9.1 x 3.1 x 3.3 in - Prime Buy

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Size (inch):: Size (inch): 9.1 x 3.1 x 3.3
Cover Type:: Cover Type: Gray Cover

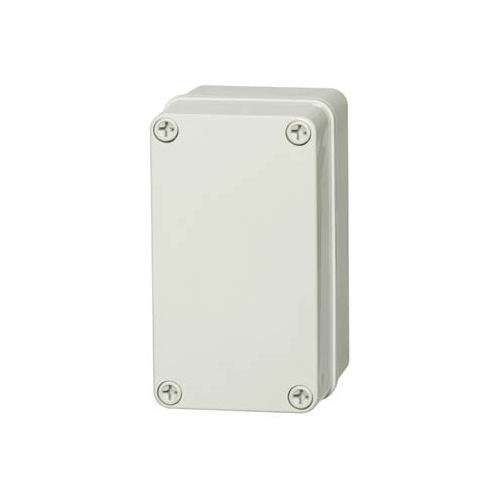

PICCOLO Enclosure, Gray Cover, 9.1 x 3.1 x 3.3 inch.

Features:

UL Enclosure, PC, Gray cover
PICCOLO enclosures are designed to house push buttons, terminal blocks, motor starters, and electronic devices
This enclosure is ideal for mounting and protecting process control sensors and switches with opaque and transparent screw covers
The PICCOLO is rated NEMA 4X box is often used for push-button control stations

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions (HxWxD-inch)	9.1 x 3.1 x 3.3
Material	Polycarbonate
Base colour	RAL 7035 -light gray
Cover colour	RAL 7035 -light gray
Gasket material	Polyurethane
Temperature °C (short term)	-40 - 120
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Ingress Protection (EN 60529)	IP66; IP67
Impact Resistance (EN 62262)	IK08
Electrical insulation	Totally insulated
Halogen free (DIN/VDE 0472, Part 815)	1
UV resistance	UL 508
Flammability Rating	UL 746C 5in
Glow Wire Test (IEC 60695)	960 °C
NEMA Class	Type 1, 4X, 6, 12 or 13

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions (HxWxD-inch)	9.1 x 3.1 x 3.3
Material	Polycarbonate
Base colour	RAL 7035 -light gray
Cover colour	RAL 7035 -light gray
Gasket material	Polyurethane
Temperature °C (short term)	-40 - 120
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Ingress Protection (EN 60529)	IP66; IP67
Impact Resistance (EN 62262)	IK08
Electrical insulation	Totally insulated
Halogen free (DIN/VDE 0472, Part 815)	1
UV resistance	UL 508
Flammability Rating	UL 746C 5in
Glow Wire Test (IEC 60695)	960 °C
NEMA Class	Type 1, 4X, 6, 12 or 13

Note: Please read description carefully. Do not base your order on the picture presented.
