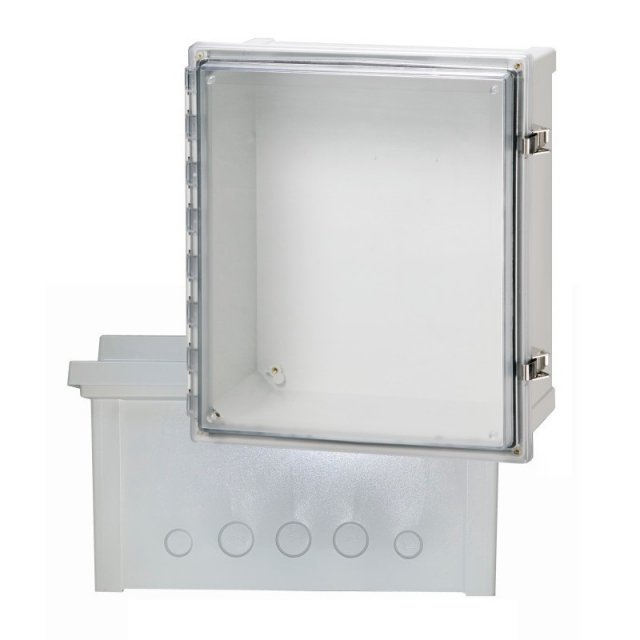

Fibox ARK865CHSSL PC Enclosure with Knock-Out Base Hinged Latch Cover
Brand:
Fibox
Part #:
ARK865CHSSL
Condition:
Brand New
Brand NewChoose Cover Color
$114.90 /Each
$165.02 You save $50.12 30%
Notification
WARNING: This product may expose you to certain chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Manufacturer warranty Description
Fibox, ARK865CHSSL, PC Enclosure with Knock-Out Base, Opaque Hinged Latch Cover
ARK865CHSSL Includes Only:
- Hinged Screw cover.
- Base with 10-32 brass inserts, cover with formed-in-place PUR gasket, and 4 stainless cover screws.
- The base includes 1/2 and 3/4-inch knockouts.
- Enclosure mounting foot kit.
- Accessory 10-32 screws for panel mounting.
Features:
- 8" x 6" x 5" with knockouts
- Hinged opaque cover
- SS latch
- Padlockable
Technical details
Main features
- Material Polycarbonate, PC
- Cover Color RAL 7035 -light grey
- Gasket Material Polyurethane (PUR)
- Depth (inch) 5
- Height (mm) 203.2
- Width (mm) 152.4
- Base color RAL 7035 -light grey
- Height (inch) 8
- Width (inch) 6
- Depth (mm) 127
- Temperature °F (short term) -40 - 250
- Temperature °F (continuous) -40 - 175
- Temperature °C (short term) -40 - 140
- Temperature °C (continuous) -40 - 80
- UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
- Ingress Protection (EN 60529) IP66, IP67
- Impact Resistance (EN 62262) IK09
- Electrical insulation Fully Insulated
- Halogen free (DIN/VDE 0472, Part 815) Yes
- UV resistance UL 508
- Flammability Rating UL94-5VA (f1)
- Glow Wire Test (IEC 60695) 960 °C
