Buy Fibox AR IPW 1210 W F, 12" x 10" Flat Cover w/ Non Locking Wing Knobs

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: Flat Cover with Non Locking Wing Knobs

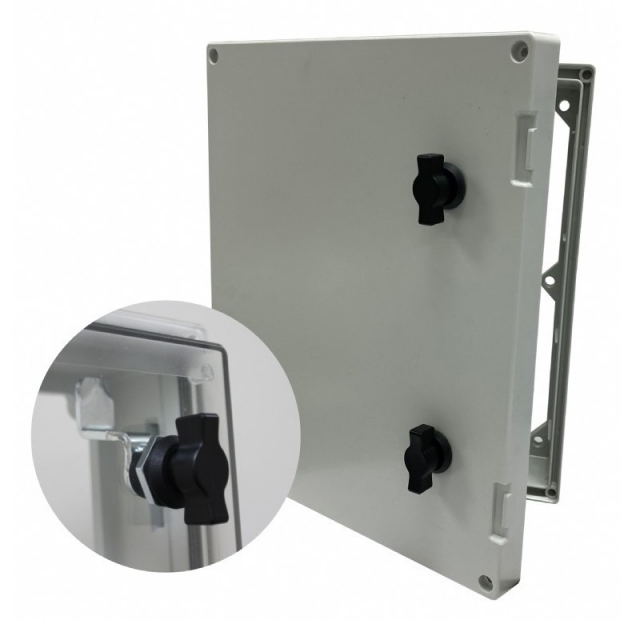

Fibox, AR IPW 1210 W F, 12" x 10" Opaque Flat Cover with Non Locking Wing Knobs

Features:

Protection Window - HMI Cover
Opaque cover with non locking wing knobs

With a secure low profile, continuous hinge design, and sleek integrated quarter turn locks, the ARCA Instrument Protection Window (IPW) minimizes access to where security and safety are needed.

The Instrument Protection Window is a UL / cUL-listed, NEMA-type 4X-rated HMI cover. The IPW can be mounted on any manufacturer's enclosure to provide safe and secure access to underlying components and instruments.

Once locked, the dual Formed-In-Place polyurethane gasket maintains a dry, dust-free environment.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for Fibox items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Materials
Material	Polycarbonate
Base color	RAL 7035 -light grey
Cover color	RAL 7035 -light grey
Gasket material	Polyurethane
Dimensions
Height (inch)	12
Width (inch)	10
Depth (inch)	3.31
Height (mm)	342
Width (mm)	295
Depth (mm)	88
Temperatures
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Temperature °C (short term)	-40 - 140
Temperature °C (continuous)	-40 - 80
Ratings
UL/cUL Type	UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Halogen free (DIN/VDE 0472, Part 815)	Yes
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)
Glow Wire Test (IEC 60695)	960 °C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: This product may expose you to certain chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Materials
Material	Polycarbonate
Base color	RAL 7035 -light grey
Cover color	RAL 7035 -light grey
Gasket material	Polyurethane
Dimensions
Height (inch)	12
Width (inch)	10
Depth (inch)	3.31
Height (mm)	342
Width (mm)	295
Depth (mm)	88
Temperatures
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Temperature °C (short term)	-40 - 140
Temperature °C (continuous)	-40 - 80
Ratings
UL/cUL Type	UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Halogen free (DIN/VDE 0472, Part 815)	Yes
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)
Glow Wire Test (IEC 60695)	960 °C
