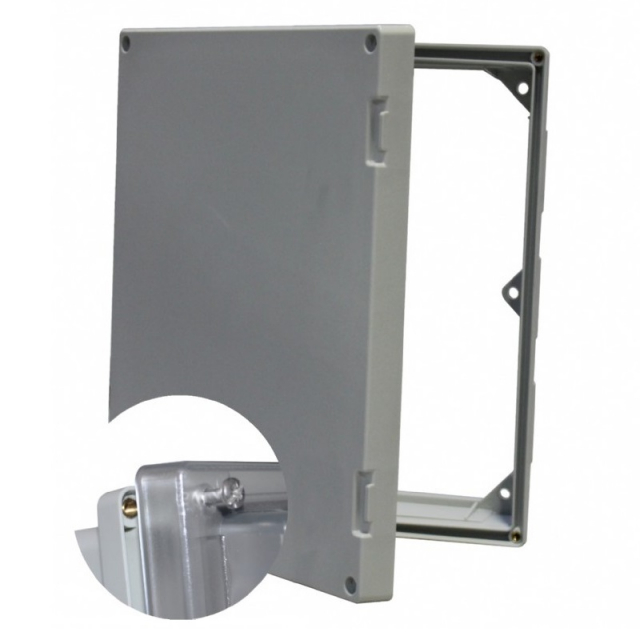

Fibox, AR IPW 1210 SC F, 12" x 10" Opaque Hinged Screw Locking Flat Cover

Features:

Protection Window - HMI Cover
Opaque hinged screw locking flat cover.

With a secure low profile, continuous hinge design, and sleek integrated quarter turn locks, the ARCA Instrument Protection Window (IPW) minimizes access to where security and safety are needed.

The Instrument Protection Window is a UL / cUL-listed, NEMA-type 4X-rated HMI cover. The IPW can be mounted on any manufacturer's enclosure to provide safe and secure access to underlying components and instruments.

Once locked, the dual Formed-In-Place polyurethane gasket maintains a dry, dust-free environment.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Materials
Material	Polycarbonate
Base color	RAL 7035 -light grey
Cover color	RAL 7035 -light grey
Gasket material	Polyurethane
Dimensions
Height (inch)	12
Width (inch)	10
Depth (inch)	3.31
Height (mm)	342
Width (mm)	295
Depth (mm)	88
Temperatures
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Temperature °C (short term)	-40 - 140
Temperature °C (continuous)	-40 - 80
Ratings
UL/cUL Type	UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Halogen free (DIN/VDE 0472, Part 815)	Yes
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)
Glow Wire Test (IEC 60695)	960 °C

Notes

***

warning WARNING: This product may expose you to certain chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Materials
Material	Polycarbonate
Base color	RAL 7035 -light grey
Cover color	RAL 7035 -light grey
Gasket material	Polyurethane
Dimensions
Height (inch)	12
Width (inch)	10
Depth (inch)	3.31
Height (mm)	342
Width (mm)	295
Depth (mm)	88
Temperatures
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Temperature °C (short term)	-40 - 140
Temperature °C (continuous)	-40 - 80
Ratings
UL/cUL Type	UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Halogen free (DIN/VDE 0472, Part 815)	Yes
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)
Glow Wire Test (IEC 60695)	960 °C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
