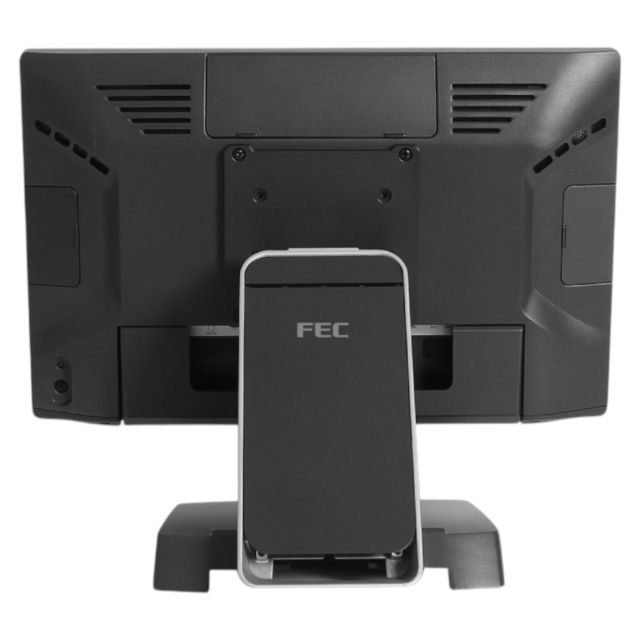

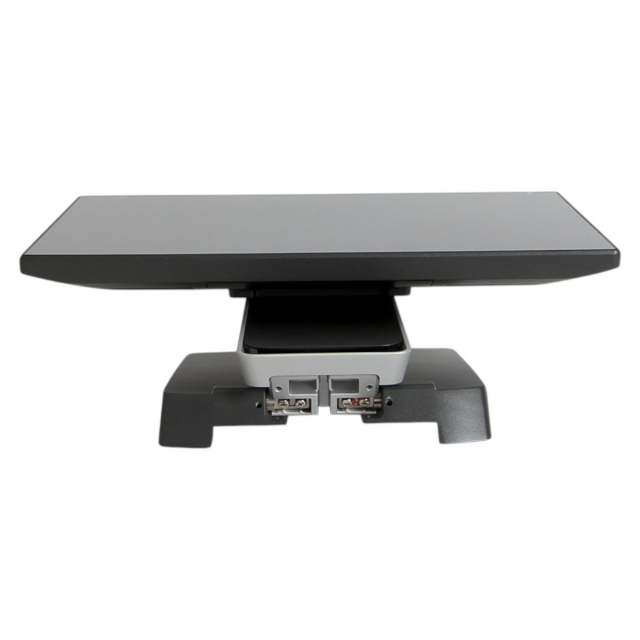

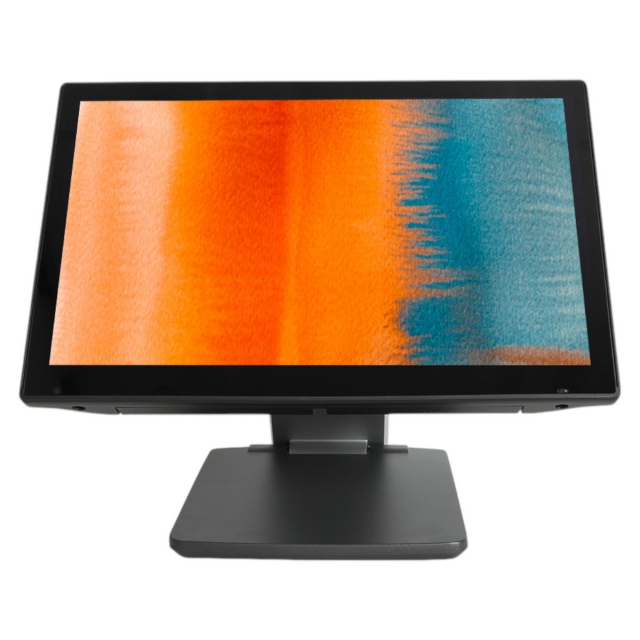

FEC, PP-9745W-PCT-I5-300-OS, POS Terminal, Intel H610, I5-12400, 4GB DDR4 RAM, 300-NIT LED LCD, 30K-HR

PP-9745W-PCT-I5-300-OS Includes Only:

Pos Terminal
Cable COM Port RJ45 8P-DB9
Power adapter
AC power cord

Features:

XPPC continues the XPOS's DNA, keep it slim and dual-hinge design.
Using Intel Alder Lake 12th Generation Processor & Support High-speed PCIe M.2 SSD.
Adjustable angle and height improve the viewing angle, enhance the user experience, can also be Desktop, Pole or Wall-mounted.
Easy for maintenance: Easy to access DRAM/ SSD/ MB.
Shared Peripherals: Share the same peripherals with XPOS.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

CPU

Intel® Core™ i5-12400 18M Cache, up to 4.40 GHz

Memory

4GB Standard, Max 32GB (1 x So-DIMM DDR4)

Storage

1 x M.2 M Key (PCIe GenIII)

Speaker

2 x 2W Internal Speaker

Display

15" TFT, 1024 x 768

Touch

True-Flat PCAP

Brightness

300 nits

Power

20V / 90W or 130W External Adapter

TPM

TPM2.0: dTPM and Intel PTT

Mounting

VESA 100 x 100 mm

Certification

FCC / CE Class B

Temperature

Operation: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -20°C ~ 60°C (-4°F ~ 140°F)

Dimensions (W x H x D)

Product: 368 x 272.5 x 315 mm
Carton: 468x 156 x 448 mm

Weight

Net 3.9 kg
Gross 4.9 kg

Port

3 x USB 3.0 Type A
1 x USB 2.0 Type A
1 x USB 2.0 Type A (Reserved for Add-On)
1 x Smart DP (Reserved for Customer Display (COM3) or 2nd Display)
2 x RJ45 (COM1, COM2)
1 x RJ45 LAN
1 x Smart DD
1 x Smart I/O (COM5)1 x Video Port
1 x RJ11 (12V/24V)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

CPU

Intel® Core™ i5-12400 18M Cache, up to 4.40 GHz

Memory

4GB Standard, Max 32GB (1 x So-DIMM DDR4)

Storage

1 x M.2 M Key (PCIe GenIII)

Speaker

2 x 2W Internal Speaker

Display

15" TFT, 1024 x 768

Touch

True-Flat PCAP

Brightness

300 nits

Power

20V / 90W or 130W External Adapter

TPM

TPM2.0: dTPM and Intel PTT

Mounting

VESA 100 x 100 mm

Certification

FCC / CE Class B

Temperature

Operation: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -20°C ~ 60°C (-4°F ~ 140°F)

Dimensions (W x H x D)

Product: 368 x 272.5 x 315 mm
Carton: 468x 156 x 448 mm

Weight

Net 3.9 kg
Gross 4.9 kg

Port

3 x USB 3.0 Type A
1 x USB 2.0 Type A
1 x USB 2.0 Type A (Reserved for Add-On)
1 x Smart DP (Reserved for Customer Display (COM3) or 2nd Display)
2 x RJ45 (COM1, COM2)
1 x RJ45 LAN
1 x Smart DD
1 x Smart I/O (COM5)1 x Video Port
1 x RJ11 (12V/24V)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
