Exair 6296-30 30 Gallon Deluxe Reversible Drum Vac System

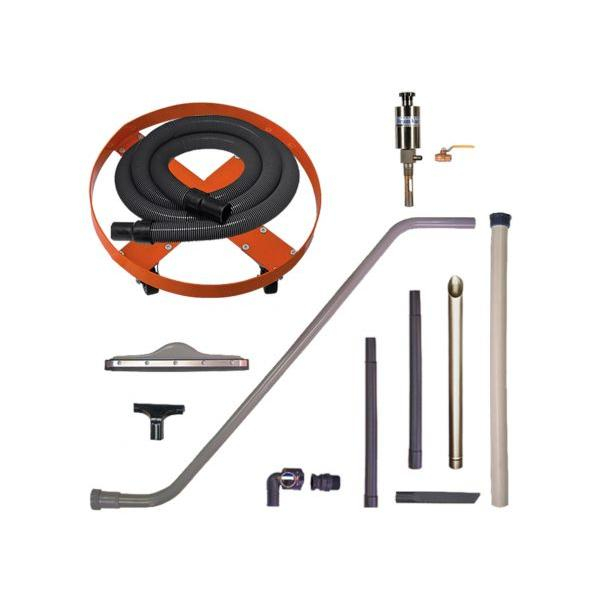

6296-30 Includes Only:

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 10' (3m) flexible vacuum hose at 1-1/2" (38mm) I.D.
• 90 quick release elbow for 1-1/2" (38mm) vacuum hose
• ABS spill recovery kit
• One aluminum wand
• Two extension wands
• Crevice tool
• Skimmer tool
• Tool holder
• Drum dolly

EXAIR's compressed air operated Reversible Drum Vac System attaches quickly to any closed head 30 gallon drum. With the simple turn of a knob, the same stainless steel pump quickly empties the drum. The Reversible Drum Vac does not use electricity and has no moving parts, assuring maintenance free operation. An automatic safety shutoff valve prevents spills or overfilling.

Features:

• No moving parts
• Maintenance free
• Stainless steel construction
• Safe - no electricity
• Built-in pressure/vacuum relief
• Compact and portable
• Installs quickly
• Spill free - auto safety shutoff
• Fits standard closed head drums

Applications:

• Coolant Sumps
• Food processing
• Lathes
• Floor cleanup
• EDM machines
• Pits
• Screw machines
• Machining centers
• Tanks

How it Work

The flex hose (1) is attached to the barbed connection (2) on the Reversible Drum Vac system. The knob (3) on the Reversible Drum Vac pump is set to the "fill" position. The air supply valve (4) is opened to permit compressed air at 80-100 PSIG (5.5 - 6.9 BAR) to flow through the Reversible Drum Vac pump which pulls liquid through the flex hose and into the drum. When all liquid is in the drum, the air supply is turned off . If liquid exceeds the drum capacity, the safety shut-off valve (5) will prevent overfilling. The liquid can then be pumped back out of the flex hose (1) by setting the knob (3) on the Reversible Drum Vac pump to the "empty" position and opening the air supply valve.

Warning: Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline, or kerosene.
