Manufacturer warranty Description
Features:
- Portable and mountable liquid transfer pump designed to be used for transferring calcium chloride or other mediums into larger tire/wheel assemblies to help support ballast in the tire/wheel.
- Heavy-Duty Lightweight construction - ideal for commercial use.
- Fast & Reliable transfer of calcium chloride or other mediums - transfer up to 50 gallons per minute

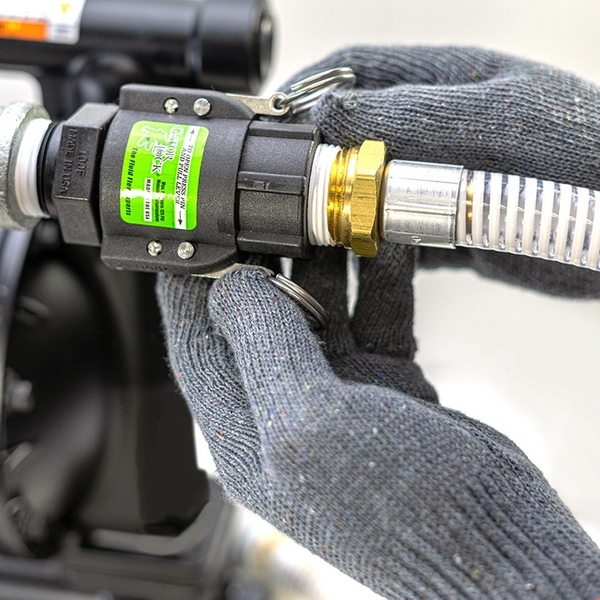

- NEW Easy to use safety-secure quick connection "Cam-Lock" couplers on the hose ends for better transport, storage, and cleaning of hoses and unit - Extends the life of the hoses, pump, and accessories
- 1 in. hose intake
- Pump 1 to 1 ratio - designed to provide optimal output for evacuating and transferring liquids.
- Fluid inlet and outlet ports 1 in. NPT

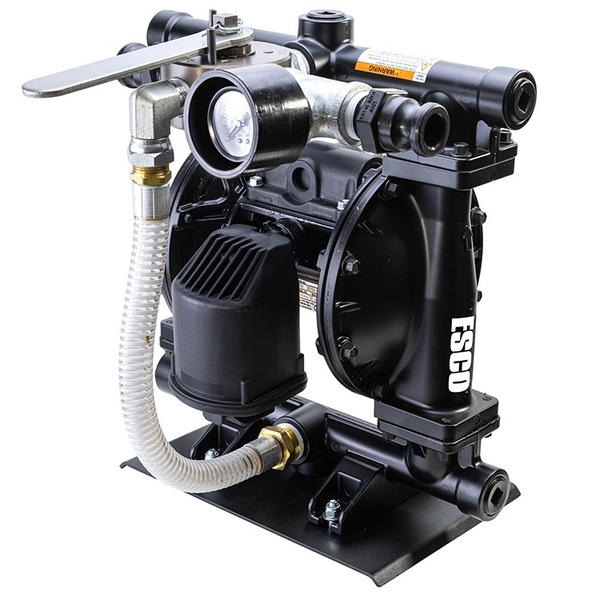

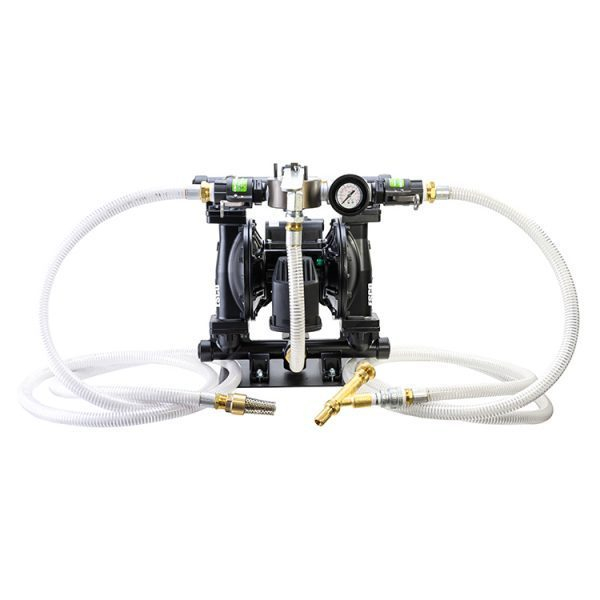

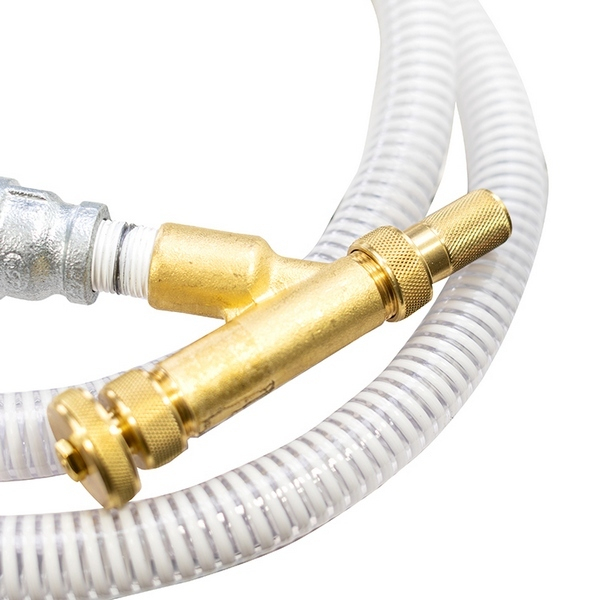

The ESCO Calcium Chloride Liquid Transfer Pump is designed to transfer up to 50 gallons per minute transferring fluid from one container to another quickly and easily. Works with multiple fluid applications including calcium chloride, water, methanol, oil, anti-freeze, coolants, tire liquids, and more. The design and functionality of the Model 10543 is specifically designed for transferring calcium chloride or other mediums into tire/wheel assemblies to aid in creating ballast with the tire/wheel. Fully assembled and ready to use out of the box, this kit includes two 10 ft. hoses, a liquid ejector gun, quick safety-connection "cam-locks", 4-way metal control valve, and air regulator.
For more information, please see
Data Sheet and Manual
Technical details
- Material Aluminum
- Application Industrial
- Connection Type Threaded
- Ball Material Geolast®
- Diaphragm Material Geolast®
- Type Pneumatic Diaphragm Pump
- Seat Material Geolast®
- Power Source Air
- Weight (lb) 23
- Compatible Material Calcium Chloride, Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
- Overall Height (in) 15.9
- Air Exhaust Port Size (in) 3/4
- Air Exhaust Port Thread Gender Female
- Air Exhaust Port Thread Type NPT
- Air Inlet Size (in) 1/2
- Air Inlet Thread Gender Female
- Air Inlet Thread Type NPT
- Center Section Material Aluminum
- Diaphragm Compatible Material Geolast®
- Fluid Inlet Size (in) 1
- Fluid Inlet Thread Gender Female
- Fluid Inlet Thread Type NPT
- Fluid Outlet Size (in) 1
- Fluid Outlet Thread Gender Female
- Fluid Outlet Thread Type NPT
- Fluid Section Material Aluminum
- Manifold Configuration Center Port, End Port
- Manifold O-Ring Material PTFE
- Maximum Air Consumption (SCFM) 67
- Maximum Air Pressure (MPa) 0.86
- Maximum Air Pressure (psi) 125
- Maximum Cycle Rate (CPM) 280
- Maximum Flow Rate (GPM) 50
- Maximum Fluid Pressure (MPa) 0.86
- Maximum Fluid Pressure (psi) 125
- Maximum Operating Temperature (°F) 150
- Maximum Solid Size (in) 0.125
- Standards Met ATEX, CE
- Wetted Material Aluminum, Geolast, PTFE
