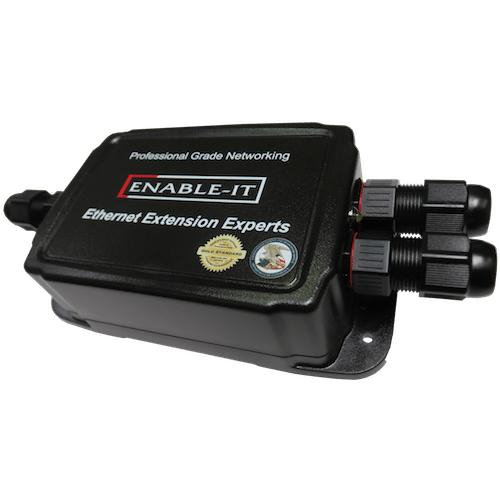

Enable-IT 828W Outdoor Gigabit PoE Extender

828W Includes Only:

• (1) Enable-IT 828W Outdoor IP68 Rated Waterproof Gigabit PoE Ethernet Extender Unit
• (2) 10" Black Ethernet patch cords
• (1) Enable-IT 828W Quickstart Guide

Features:

• Extends Full Duplex Gigabit Ethernet and PoE SIX TIMES beyond the IEEE barrier of 328ft (100m) with PoE 56V over CAT5e/6 or better wiring.
• Three LAN port design allows for deployment of (2) separate PoE devices up to 800ft (240m) or up to 2,000ft (600m) if used in a series.
• Rapid LAN style installation RJ-45 LAN Interfaces – no programming required.
• Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.
• Cisco / Motorola reverse polarity PoE compatible
• Ideal for deploying High Definition IP Cameras requiring Gigabit throughput at distance.
• Supports VoIP (Voice over IP).
• Network equipment independence - Transparent to protocols, applications and MAC addresses.
• Sustained full-duplex Gigabit Ethernet service delivery end to end.

The Enable-IT™ 828W Outdoor IP68 Rated Gigabit PoE Extension Unit is the world's 1st and only for 4 years running copper Gigabit solution in the industry today. This 828W Outdoor IP68 Rated product is a standalone unit to be used with your PoE Injector or PoE Midspan. The standalone 828W Outdoor IP68 Rated can drive incremental Gigabit Ethernet to 800ft (240m). For installing PoE IP cameras, PoE Access Points and remote LAN segments – Nothing is more cost effective or simple to install. The three LAN port design allows for deployment of two separate PoE devices. The Enable-IT 828W Outdoor IP68 Rated can drive industry standard Gigabit Ethernet and PoE signals to over six times the restricted IEEE standard Ethernet distance when combined in a series of multiple units and uses high power PoE . This cost-effective solution eliminates many of the limitations and high costs for extending LAN cabling today.The 828W Outdoor IP68 Rated Series Solution is a standalone powered Gigabit Ethernet Repeater that doubles the range of your Gigabit Ethernet to an unpowered remote location. This is ideal for installing high powered PoE cameras remotely using only a CAT5e or CAT6 rated 100m cabling. The unit can be configured at time of ordering for disabling PoE output on either or both output ports to enable standard non PoE LAN devices. By default both output ports supply PoE power. Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.You can also daisy chain (4) 828W Outdoor IP68 Rated units to reach 2,000ft (600m) to power a PoE devices easily.

For more information, please see Data Sheet
