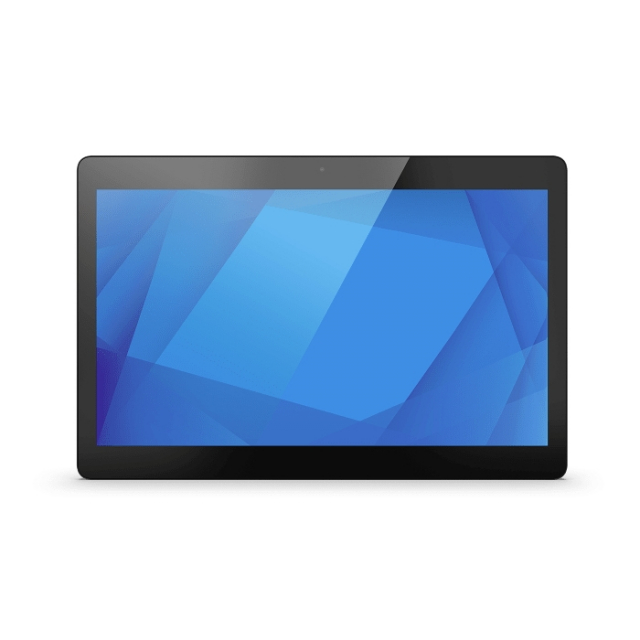

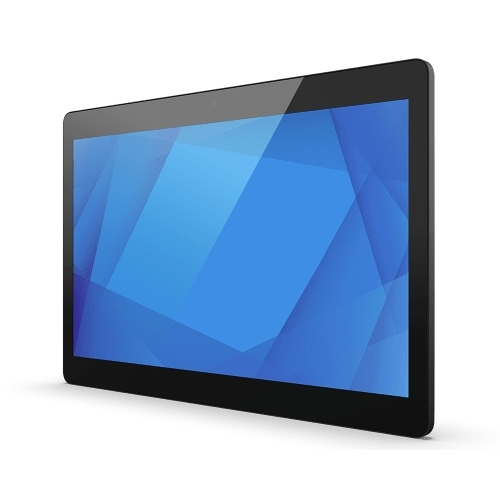

ELO Touch E390075 I-Series 4 Standard Android 10 AiO Touchscreen
Brand NewChoose Type
Manufacturer warranty Description
ELO Touch, E390075, I-Series 4 AiO Touchscreen Standard, Android 10 with GMS, 15.6-inch, 1920 x 1080 Display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Projected Capacitive 10-Touch, Clear, Wi-Fi, Ethernet, Bluetooth 5.0, 8MP Camera, EloView Compatible, Black, Worldwide
E390075 Includes Only:
- I-Series 4
- North American Power Cable
- European Power Cable
- 1x Power Brick
- Quick Install Guide
- Screws for cable cover door (located in the power/Ethernet bay)
Create your perfect POS system.
Easily convert your favorite I-Series into a powerful, industrial-designed POS system that scales with your business.
Amazing touchscreen kiosks simplified.
The possibilities are endless with the I-Series. From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series with a variety of stands to create your perfect kiosk. And, applications with audio and video are simplified with the built-in 8MP camera and digital microphones.
Build engaging brand experiences.
Educate buyers, create brand awareness and drive purchases in store with an easy-to-use interactive platform that can adapt as needs change.
Do more with power over ethernet (POE).
With the POE adapter, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and to connect the POE adapter to the I-Series.
Technical details
- Processor Standard Model: Qualcomm Snapdragon SDA660
- Dimensions Standard Model: 14.87" x 9.83" x 0.88" / 377.7 mm x 249.7 mm x 22.3 mm
- Power Supply AC input voltage: 100-240 VAC Input frequency: 50-60 Hz power adapter (included in accessory box)
- OS Android 10 with Google Play Services (AOSP capable) Upgrade to Android 12 and planned upgrade to Android 14 are available with an OS 360 subscription
- Type Standard Model
- Resolution 1920 x 1080 at 60Hz
- Viewing Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
- Wireless 802.11a/b/g/n/ac + Bluetooth 5.0
- Diagonal Size 15.6" diagonal, Active matrix TFT LCD (LED)
- MTBF 50,000 hours demonstrated
- Operating Temperature 0°C to 40°C / 32°F to 104°F
- Storage Temperature -20°C to 50°C / -4°F to 122°F
- Storage Standard Model: 64GB
- Enclosure Color Black
- Contrast Ratio 700:1
- Humidity Operating: 20% to 80% Storage: 5% to 95%
- Real-Time Clock lithium coin cell battery

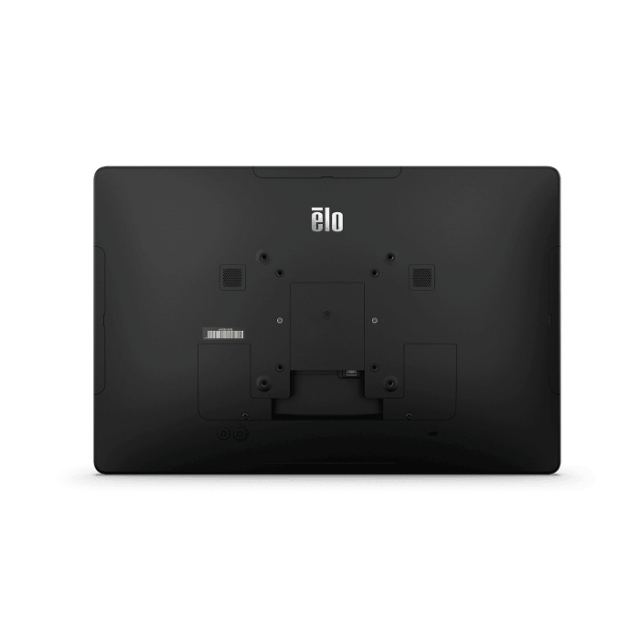

- Mounting options VESA 75mm and 100mm
- Aspect Ratio 16:9
- Touch Technology & Capacity PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Number of Colors 8-bit (16.7 million)
- Brightness (typical) Standard Model: LCD Panel: 300 nits TouchPro PCAP: 258 nits
- I/O Ports 1x USB 3.0 support (900mA) Type C USB output Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in
- Speakers Standard Model: 2x 0.8W
- Active Area 13.55" x 7.62" / 344 mm x 194 mm
- Response Time-total (typical) 25 msec
- Power Consumption (Typical) Standard Model: On: 11.0W Off: 0.4W Sleep: 4.4W
- Weight (Unpackaged) 3.9 lbs / 1.8 kg
- Memory (RAM) 4GB
- Webcam Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
- Audio Ports Standard Model: 2x built-in Digital Microphones
- Regulatory approvals and declarations UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)
- Supported Countries Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
- Touch Thru Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Peripheral Mounting 4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports
- Power Over Ethernet (PoE) Supported via Elo PoE Device PN: E413396 Reference the I-Series 4.0 user guide for details.
