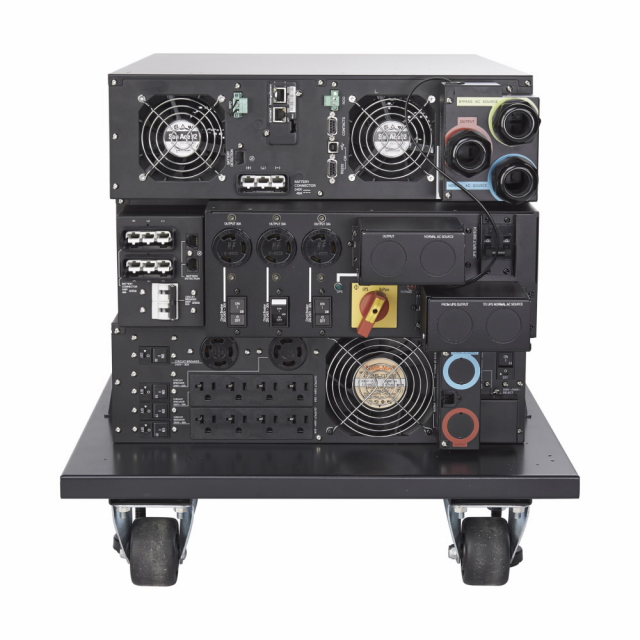

Eaton 9PX11KTF11M UPS, 9U, 11 kVA, 10 kW, 208V
Condition:
Brand New
Brand New $13,569.00 /Each
$19,637.00 You save $6,068.00 31%
Contact Us
Check availability
$13,569.00 /Each
$19,637.00 You save $6,068.00 31%
Notification
Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Manufacturer warranty Description
9PX11KTF11M Includes Only:
- 11 kVA 3U UPS power module
- 9PXEBM240RT 3U extended battery module
- 9PXTFMR11 11K 120V Stepdown Transformer
- MBP11K208 Maintenance Bypass
- Gigabit Network Card (Network-M2)
- 4-post rail kit
- User manual
- Quick start guide
- Tower pedestals
- Intelligent Power Software Suite CD
- RS-232 serial cable
- USB cable
- Cable gland for hardwire connection
- Phillips head screw driver
Features:
- Enables you to customize UPS settings, view load and power consumption information through the graphical interactive LCD interface
- Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
- Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM technology
- Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional maintenance bypass
- Helps save money and protect the environment through energy efficient operation (ENERGY STAR qualified UPS)
$13,569.00 /Each
$19,637.00 You save $6,068.00 31%
Contact Us
Check availability
Technical details
Main features
- Voltage 208 V
- Battery Type Sealed, lead-acid
- Input Connection Hardwired
- Communication Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
- Wattage 10 KW
- Outputs (8) 5-20R / (3) L6-30R / (2) L14-30R / Hardwired
- User Interface Graphical display, 5-button programmable menu
- Temperature Range 0° to 40°C (32° to 104°F)
- Relative Humidity 0-95% Non-Condensing
- Noise Level <45 dB at 1 meter
- Altitude <1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
- Ethernet Interface Yes
- Product Height 15.3 in
- Product Width 17.3 in
- Topology Online/Double-conversion
- Product Weight 392 lb
- Expansion Slots (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included
- Receptacle (8) 5-20R, (2) L14-30R, Hardwired
- Input Frequency Range 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz
- Software Compatibility Intelligent Power Software Suite
- VA rating 11 kVA
- Output Waveform True sine wave
- Battery replacement Hot-swappable internal batteries and extended battery modules (EBMs)
- Input Power Factor >0.99 typical
- BTU Rating Online: 1920, Battery: 2900
- Product Length/Depth 27.6 in
- Battery Management ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
- Extended Battery Capability Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT.
- Output Power Factor 0.91
- Output Nominal Voltage 208V default (200/208/220/230/240/250V)
- Input Nominal Voltage 208V default (200/208/220/230/240/250V)
- Includes Network Card Yes
