Eastwood 98016 Elite Panel Cutting and Deburring System
Brand NewNotification
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Manufacturer warranty Description

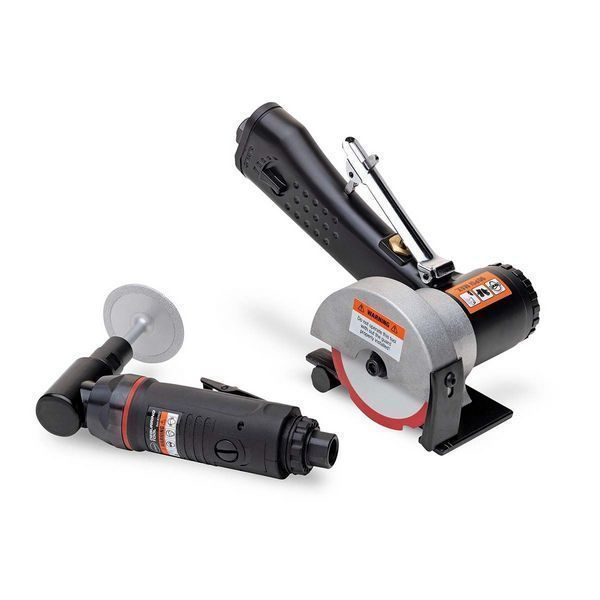

98016 Includes Only:

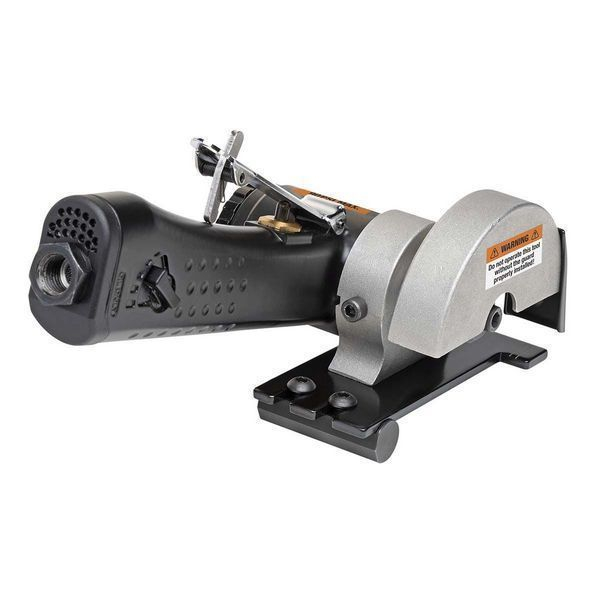

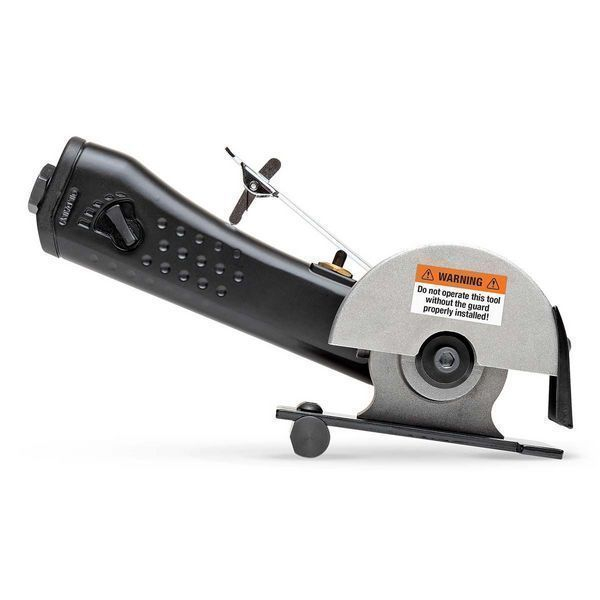

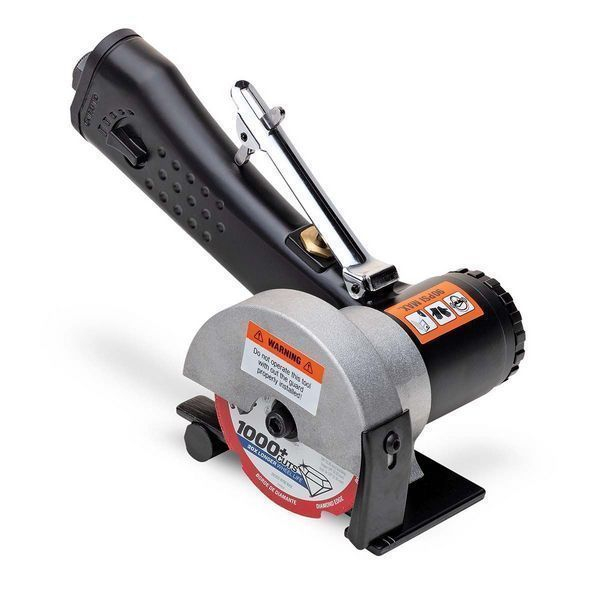

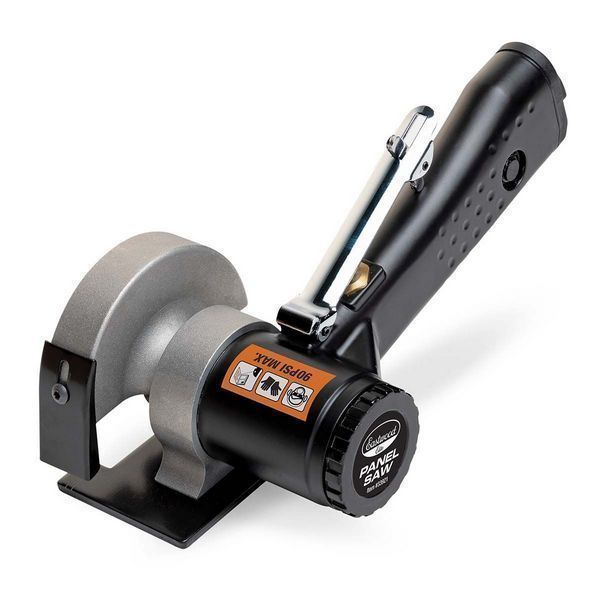

- Eastwood Elite Panel Saw
- (1) Eastwood Elite Panel Saw
- (1) 14mm Offset Arbor Wrench
- (1) 5mm Hex Key Arbor Screw Wrench
- (1) 3mm Hex Key Guard Wrench
- (1) 4mm Hex Key
- (1) 2.5mm Hex Key
- (1) 1/4" MNPT, Male Quick-Disconnect Inlet Fitting with Thread Sealant

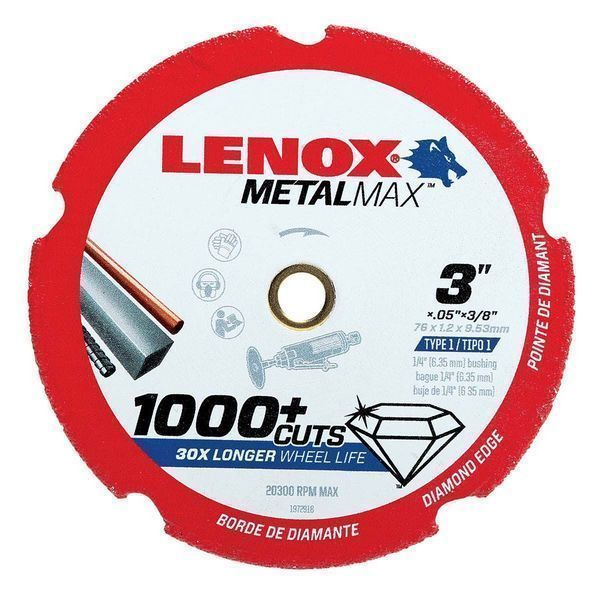

- (1) Lenox Diamond Cutting Wheel

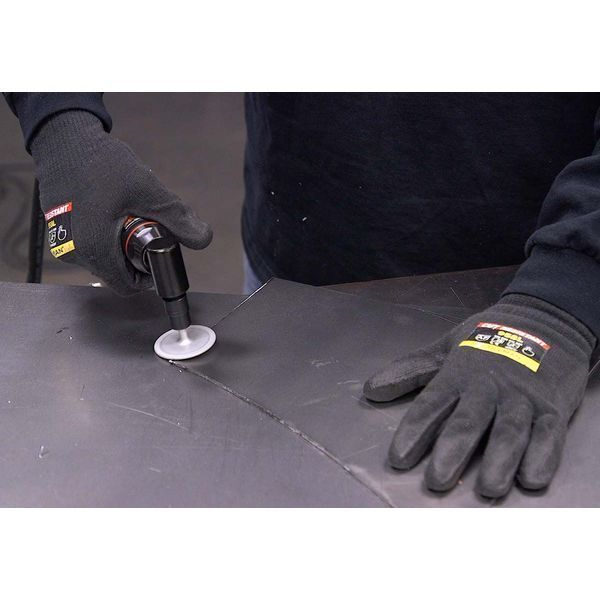

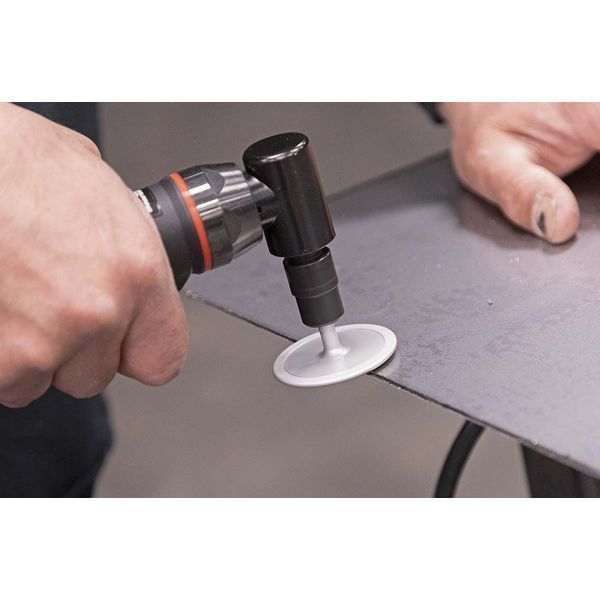

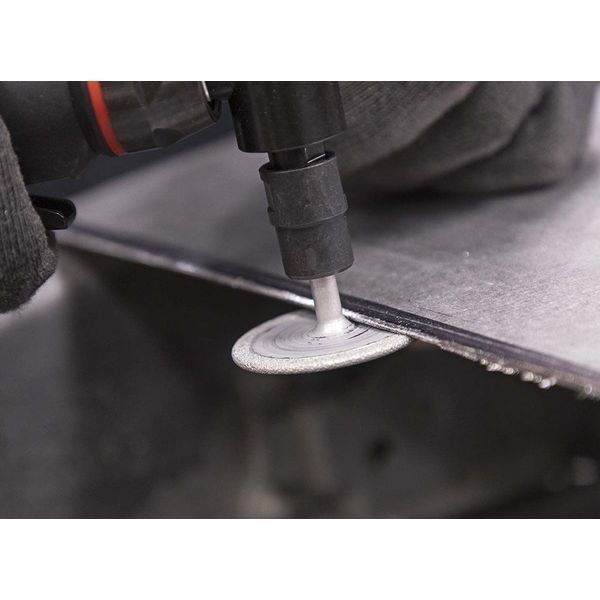

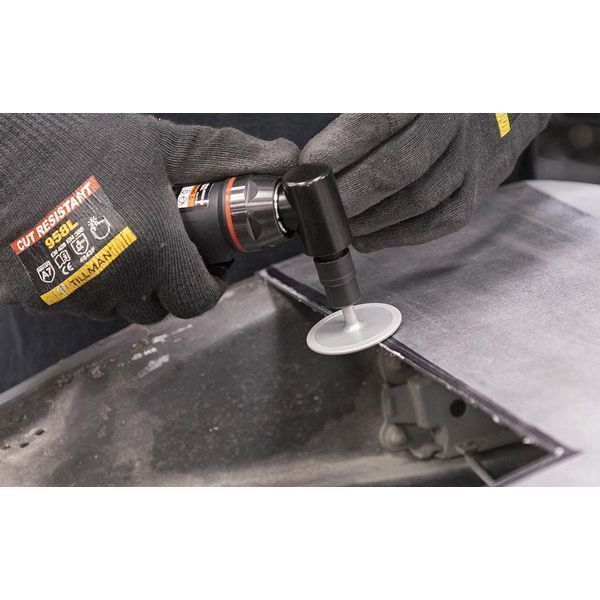

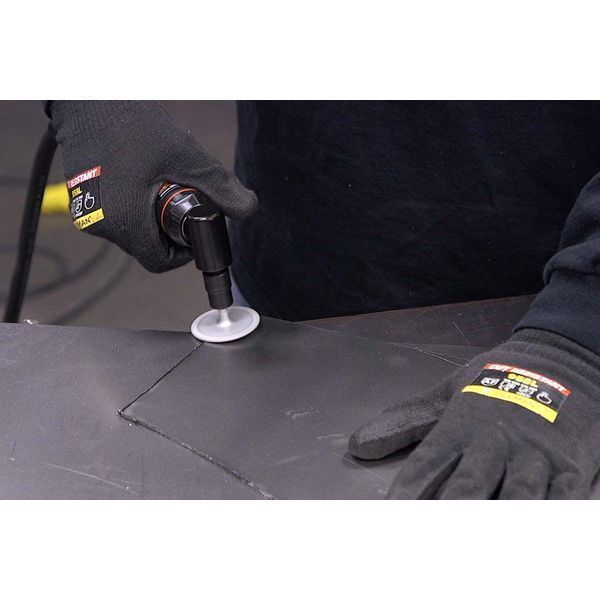

- Eastwood Elite Deburring Tool

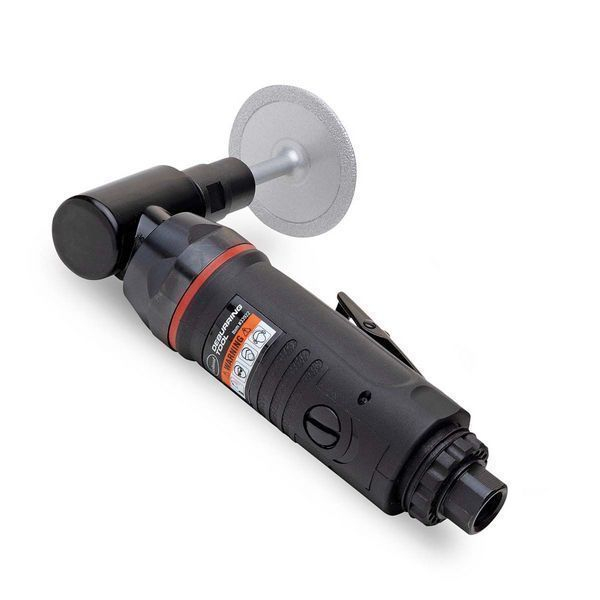

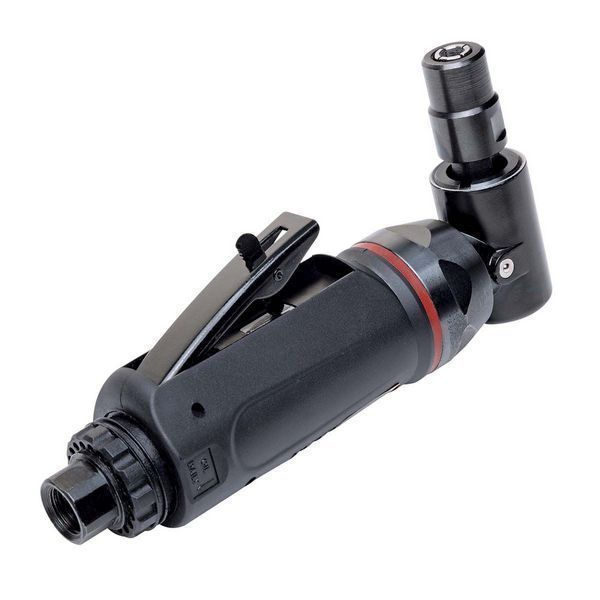

- (1) Eastwood Elite Deburring Tool
- (1) 1/4" Collet (installed)
- (1) 11mm Arbor Wrench
- (1) 17mm Collet Wrench
- (1) 1/4" MNPT, Male quick-disconnect Inlet Fitting with Thread Sealant

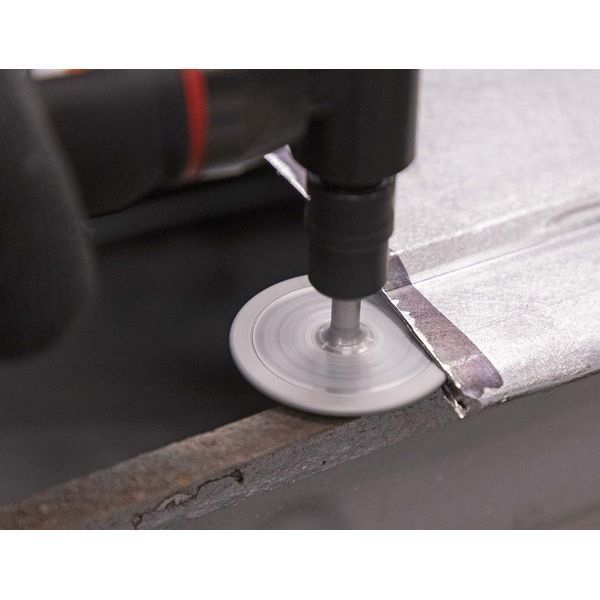

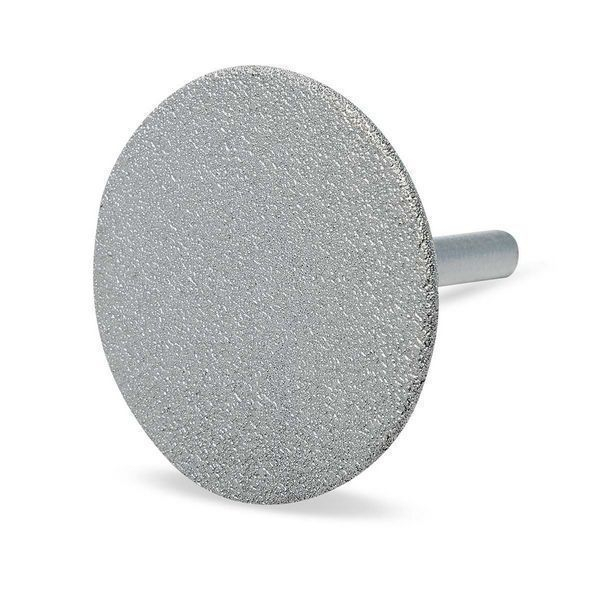

- (1) 2" Mounted Diamond Wheel

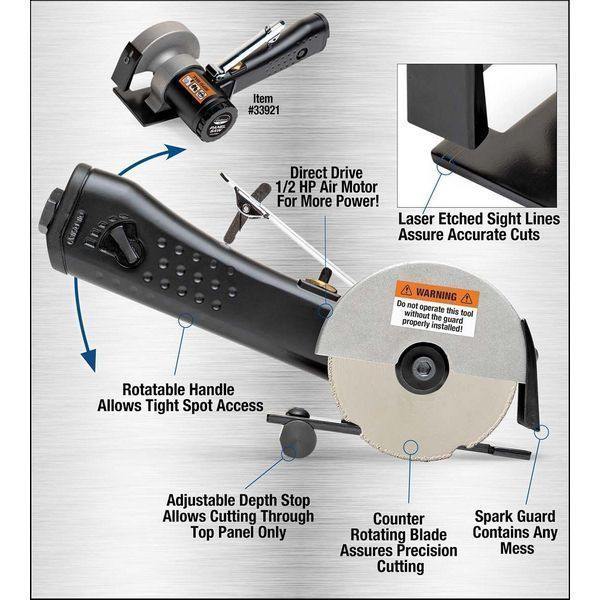

Features:
- Powerful Heavy-Duty .5 Horsepower Motor
- Operates with Only 4 CFM at 90 PSI
- Engineered for Optimum Performance with the use of a Diamond Blade
- Reversed Blade Direction Creates Clamping Action for Precise Tracking
- Straight, Plunge, and Scroll Cuts All in One Tool
- Handle Rotates 120 Degrees Around Base for Cutting in Tight Areas
- Micro Adjustable Guard and Innovative Sight Lines for Precise Cuts

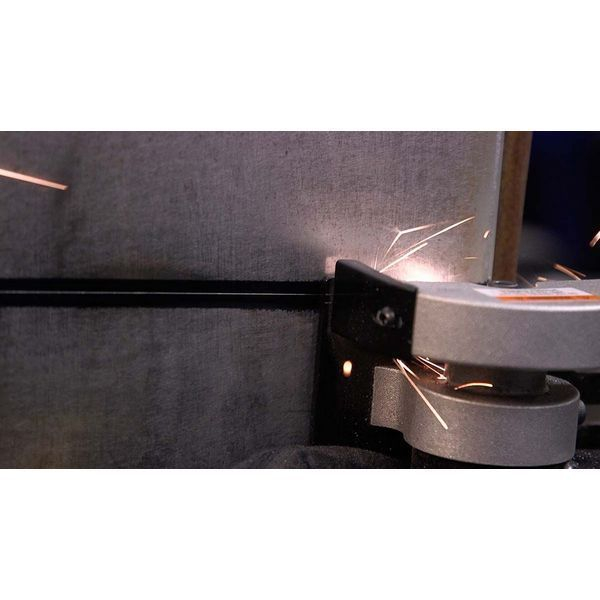

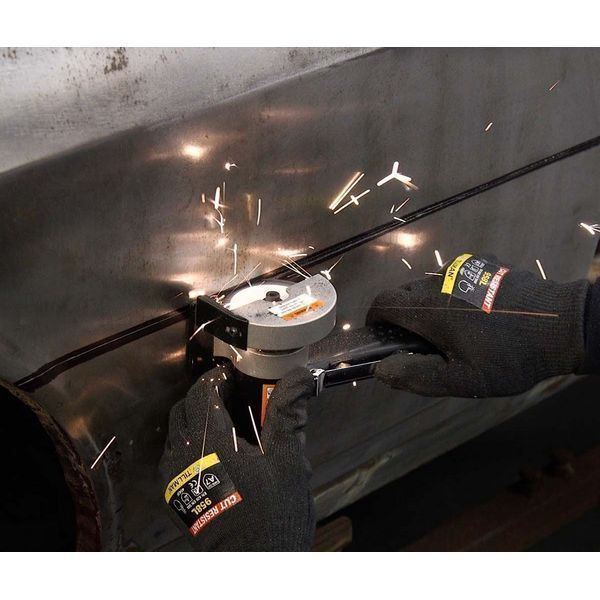

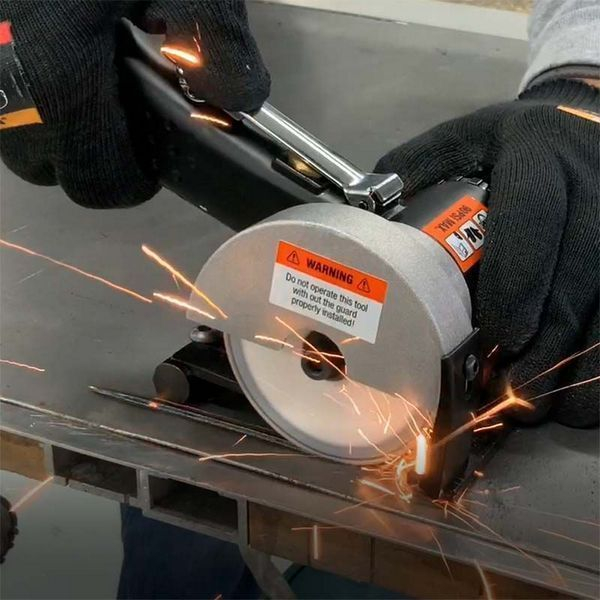

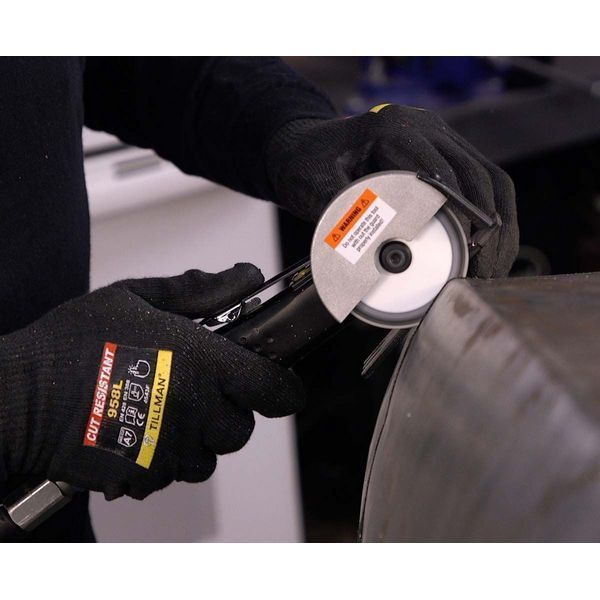

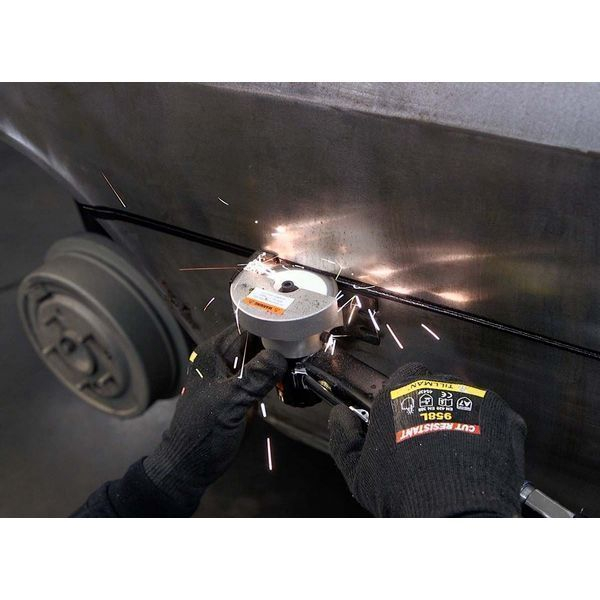

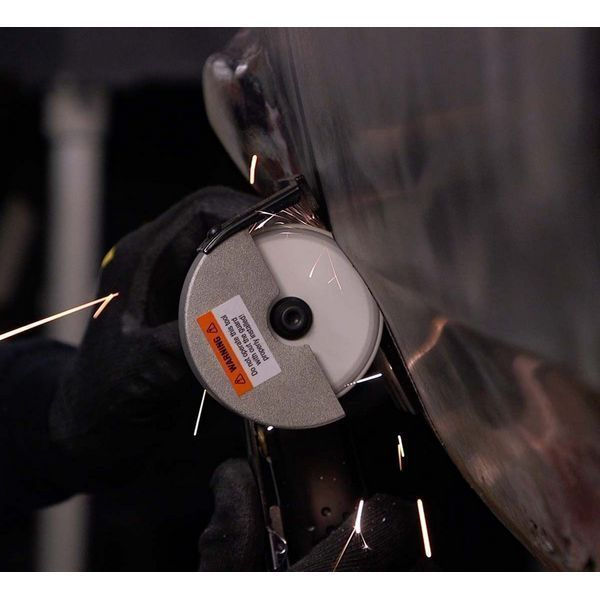

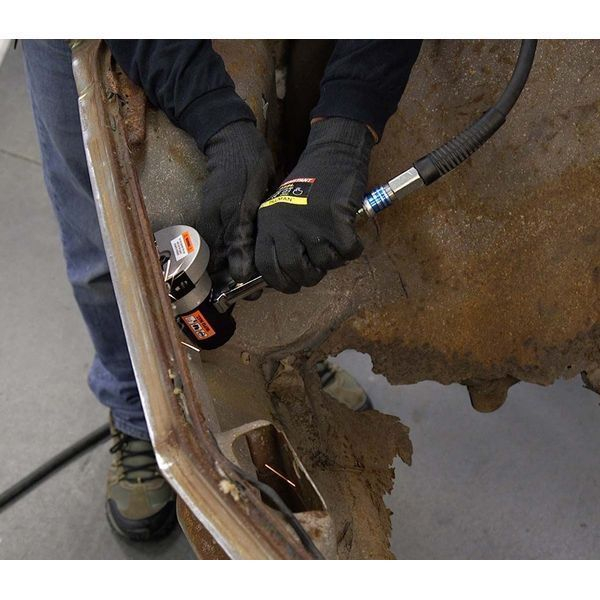

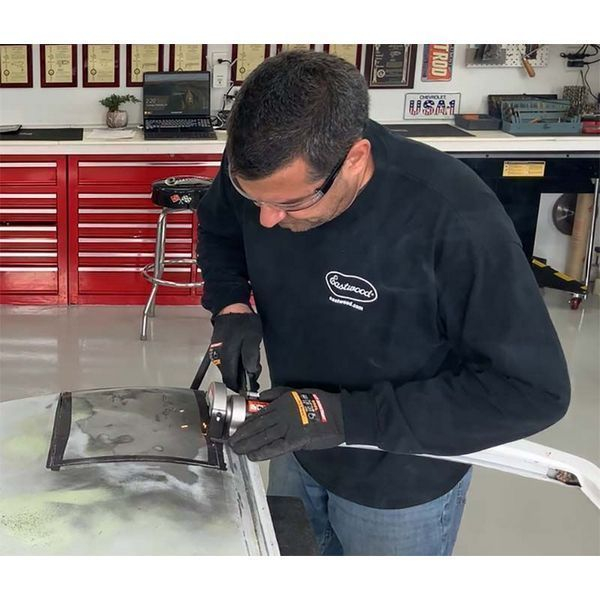

The Eastwood Elite Panel Cutting Saw is designed for creating extremely high accurate cuts in metal on the inside or outside of your scribe line.
Inside-Outside Sight Line - The aluminum base plate is precision laser-etched with blade alignment marks to allow the user to make accurate cuts on the inside or outside of a scribe line. The Panel Saw is also easily capable of starting with a plunge cut, making a scroll cut, or cutting through multi-layered panels.
Quick-set depth gauge - Allows user to accurately set blade depth to cut just top panel not damaging lower panel for repair.
Technical details
- Exhaust Rear
- Type Panel Cutting and Deburring System
- Blade Diameter 3"
- Collet Size 1/4" (6.3mm)
- Maximum Cutting Depth 1/4" (6.3mm)
- Arbor Size 3/8" (9.5mm)
- Free Speed 17,000 RPM, 22,000 RPM
- Housing Construction Aluminum with Cushion Grip, Aluminum with Vinyl Sleeve
- Operating Air Pressure 90 PSI
- Air Consumption 4 CFM
- Horsepower 0.5, 3.5
- Cutting Wheel Size 3" (Included)
- Air Inlet 1/4" FNPT
- Wheel Guard Construction Aluminum Die Cast
- Base Plate 5/32" (4mm) Steel with Laser Etched Guide Marks
- Spark Guard Construction Steel
- Speed Adjustment Lever Type on Housing, Rotary Dial on Housing
- Trigger Type Paddle with Safety
- Blade Thickness 0.05"
- Blade Arbor Size 3/8"
- Blade Maximum RPM 20300
- Tool Construction Precision Machined Solid Alloy Steel Gears
- Wheel Shank Size 0.25"
- Wheel Shank Length 1.75"
- Wheel Cutting Edge Size 0.125"
- Wheel Abrasive Type Diamond
- Wheel Abrasive Coverage Location Full Bottom / Partial Top
- Wheel Cutting Wheel Size 3" (not included)
- Wheel Grit Rating 80
