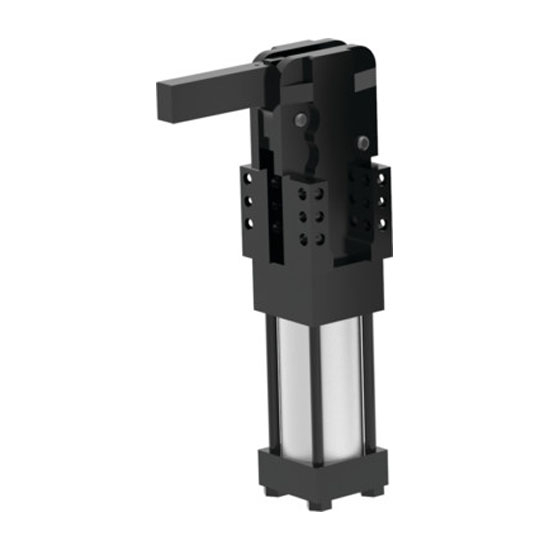

Destaco, 861, 3,000lb Inner Hold Capacity, Pneumatic Heavy Duty Action Clamp

Designed for high production applications. 90 degree clamping arm position.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Opening Angle (deg)	119
Clamp Arm Length (in)	4.000
Holding Torque (Max) (ft-lb)	280
Cylinder Bore (in)	2
Clamping Arm Torque At 5 Bar (ft-lb)	85
Port Size	G 1/8
Clamp Arm Style	Center
Configuration	Horizontal clamping arm
Product Type	Power Clamp
Replacement Seal Kit	8610100
Weight (lb)	8.58
Hand Lever	No
Product Series Description	Power Clamp
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power clamps

Opening Angle (deg)	119
Clamp Arm Length (in)	4.000
Holding Torque (Max) (ft-lb)	280
Cylinder Bore (in)	2
Clamping Arm Torque At 5 Bar (ft-lb)	85
Port Size	G 1/8
Clamp Arm Style	Center
Configuration	Horizontal clamping arm
Product Type	Power Clamp
Replacement Seal Kit	8610100
Weight (lb)	8.58
Hand Lever	No
Product Series Description	Power Clamp
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power clamps

Note: Please read description carefully. Do not base your order on the picture presented.
