Manufacturer warranty Description
Features:

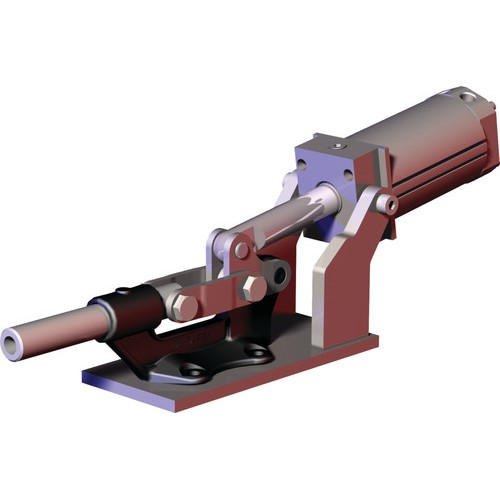

- Pneumatic version of Model 650 manual straight line action clamp
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates need for external flow controls
- Replacement Clamp Assembly: 850-LC
Pneumatic version of manual clamp model 650. Pneumatic cylinder features built in flow control for smooth operation and magentic ring piston for position sensing. Accomodates either T-slot (8EA-109-1) or round (810169) sensors.
Technical details
Main features
- Product Type Pneumatic Straight Line Plunger Clamp
- Operating Temperature -10° to 90°C (-14° to 194° F)
- Weight (lb) 16.70
- Duty Cycle Excellent/High
- Cylinder Bore (in) 2.48
- Air Port size 1/8 NPT
- Product Function Clamping
- Exerting Force (lbf) 1,232
- Air Consumption (ft³) 0.109
- Maxmum Holding Capacity (lb) 16,000
- Plunger Travel (in) 2
- Plunger Height (in) 2.630
- Plunger Thread 5/8-11
- Replacement Seal Kit 850450-63-1-00
- Product Series Description Toggle Clamp
- Application - Welding Excellent/High
- Application - Assembly Excellent/High
