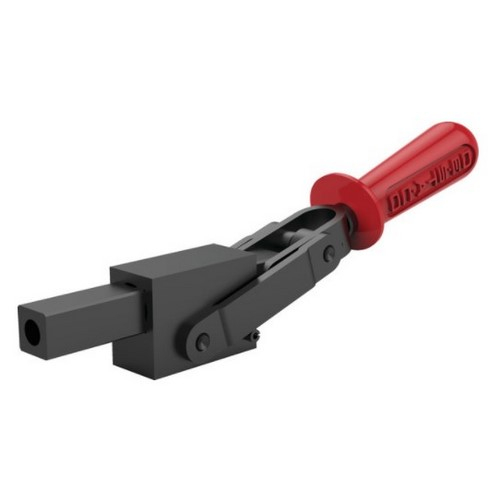

Destaco, 5150-B, 5,800.07lb Load Capacity, Solid Base, Carbon Steel, Standard Straight Line Action Clamp

The low profile straight line clamps feature robust contruction for extended life and durability.

Features:

Hardened square plunger
Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone
Hardened steel pivot pins and bushings for long life
Black oxide finish

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Load Capacity (N)	25800.00
Load Capacity (Lb.)	5800.07
Plunger Travel (mm)	48.51
Plunger Travel (Decimal Inch)	1.9100
Plunger Shape	Square
Plunger Thread Style	Internal
Plunger Thread Size	1/2-13
Plunger Centerline Height (mm)	34.80
Plunger Centerline Height (Decimal Inch)	1.3700
Plunger Diameter (Decimal Inch)	0.4100
Plunger Diameter (mm)	10.41
Base Style	Solid
Handle Style	Straight
Material	Carbon Steel
Overall Length (Decimal Inch)	5.2400
Overall Height (Decimal Inch)	3.4000
Handle Color	Red
Overall Length (mm)	133.10
Overall Height (mm)	86.36

Load Capacity (N)	25800.00
Load Capacity (Lb.)	5800.07
Plunger Travel (mm)	48.51
Plunger Travel (Decimal Inch)	1.9100
Plunger Shape	Square
Plunger Thread Style	Internal
Plunger Thread Size	1/2-13
Plunger Centerline Height (mm)	34.80
Plunger Centerline Height (Decimal Inch)	1.3700
Plunger Diameter (Decimal Inch)	0.4100
Plunger Diameter (mm)	10.41
Base Style	Solid
Handle Style	Straight
Material	Carbon Steel
Overall Length (Decimal Inch)	5.2400
Overall Height (Decimal Inch)	3.4000
Handle Color	Red
Overall Length (mm)	133.10
Overall Height (mm)	86.36

Note: Please read description carefully. Do not base your order on the picture presented.
