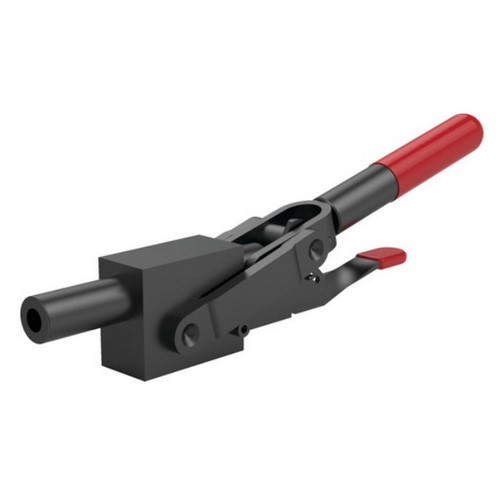

Destaco, 5130-MBR, 5,800.07lb Load Capacity, Solid Base, Carbon Steel, Standard Straight Line Action Clamp

The low profile straight line clamps feature robust contruction for extended life and durability.

Features:

Hardened plungers
Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone
Hardened steel pivot pins and bushings for long life
Black oxide finish

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Load Capacity (N)	25800.00
Load Capacity (Lb.)	5800.07
Plunger Travel (mm)	44.45
Plunger Travel (Decimal Inch)	1.7500
Plunger Shape	Round
Plunger Thread Style	Internal
Plunger Thread Size	M12
Plunger Centerline Height (mm)	35.05
Plunger Centerline Height (Decimal Inch)	1.3800
Plunger Diameter (Decimal Inch)	1.1400
Plunger Diameter (mm)	28.96
Base Style	Solid
Handle Style	Straight
Material	Carbon Steel
Overall Length (Decimal Inch)	11.1100
Overall Height (Decimal Inch)	3.1700
Base Length (Decimal Inch)	1.7500
Base Width (Decimal Inch)	2.5200
Handle Color	Red
Base Width (mm)	64.01
Base Length (mm)	44.45
Overall Length (mm)	282.20
Overall Height (mm)	80.52
