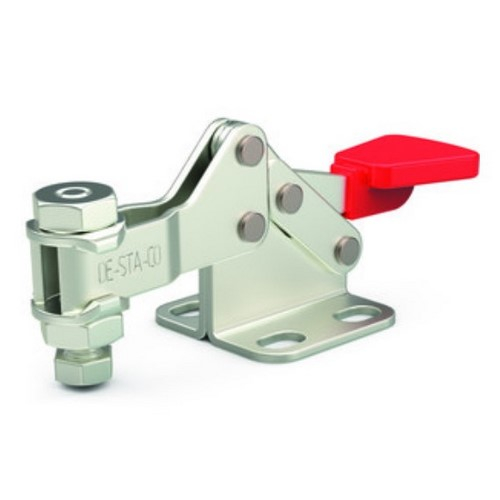

DESTACO 206-SS Manual Hold Down Toggle Clamp, 100lb Holding Capacity
Brand:
DESTACO
Part #:
206-SS
Condition:
Brand New
Brand NewOur price is too low to show. See Price in Cart
Manufacturer warranty Description
Destaco, 206-SS, 100lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp
Low profile clamp offers good clearance under the bar in a small package.
Features:
- Stainles steel design
- Low U-Bar clamping arm supplied with stainless steel hex head spindle
Technical details
Main features
- Material Stainless Steel
- Handle Color Red
- Overall Length (mm) 69.60
- Handle Style Straight
- Spindle Thread Size 8-32
- Number of Mounting Holes 4
- Overall Length (Decimal Inch) 2.7400
- Overall Height (Decimal Inch) 1.0600
- Overall Height (mm) 26.92
- Base Length (mm) 23.88
- Base Width (mm) 23.88
- Finish/Coating Electro-Plated Zinc
- Bar Style u-bar
- Base Style Flanged
- Base Length (Decimal Inch) 0.9400
- Base Width (Decimal Inch) 0.9400
- Width Distance Between Mount Holes (mm) 16.00
- Width Distance Between Mount Holes (Decimal Inch) 0.6300
- Length Distance Between Mount Holes (mm) 16.00
- Length Distance Between Mount Holes (Decimal Inch) 0.63
- Bar Width (mm) 7.87
- Bar Width (Decimal Inch) 0.3100
- Holding Capacity (N) 440.00
- Holding Capacity (Lb.) 100.00
- Height Under Bar (mm) 11.18
- Height Under Bar (Decimal Inch) 0.4400
- Bar Opening (Degrees) 90.00
- Bar End Type Fixed Spindle
- Maximum Mechanical Advantage 3:1; 5:1
- Handle Orientation Horizontal
- Front of Base To Tip Of Toggle Bar (mm) 24.13
- Front of Base To Tip Of Toggle Bar (Decimal Inch) 0.9500
- Handle Movement (Degrees) 90.00
- Handle Width (Decimal Inch) 0.6200
- Spindle Length (Decimal Inch) 0.8600
- Spindle Travel (mm) 8.89
- Spindle Travel (Decimal Inch) 0.3500
- Length Distance Between Mount Holes (Inch) 0.63
