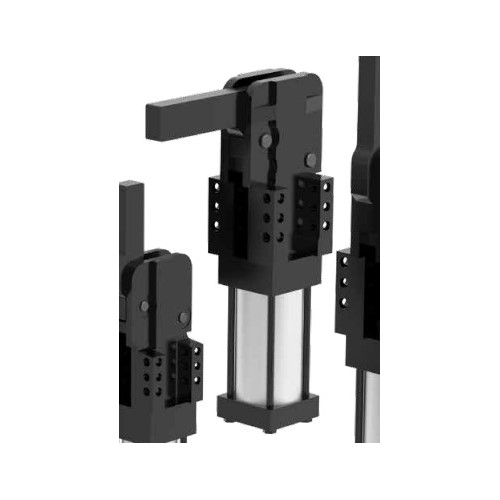

Destaco, 1001, 82.5mm (3.25in) Cylinder with Horizontal Clamp Arm

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Opening Angle (deg)	119
Holding Torque (Max) (ft-lb)	1,325
Cylinder Bore (in)	3.25
Clamping Arm Torque At 5 Bar (ft-lb)	310
Port Size	G 1/8
Clamp Arm Style	Center
Configuration	Horizontal clamping arm
Product Type	Power Clamp
Replacement Seal Kit	10010100
Weight (lb)	29.70
Hand Lever	No
Product Series Description	Power Clamp
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power clamps

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Opening Angle (deg)	119
Holding Torque (Max) (ft-lb)	1,325
Cylinder Bore (in)	3.25
Clamping Arm Torque At 5 Bar (ft-lb)	310
Port Size	G 1/8
Clamp Arm Style	Center
Configuration	Horizontal clamping arm
Product Type	Power Clamp
Replacement Seal Kit	10010100
Weight (lb)	29.70
Hand Lever	No
Product Series Description	Power Clamp
Product Function	Clamping
Product Family	Heavy-Duty Pneumatic Clamping
Product Group	pneumatic power clamps

Note: Please read description carefully. Do not base your order on the picture presented.
