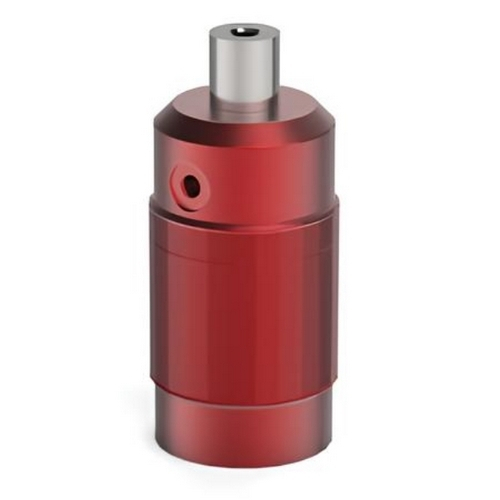

Buy Destaco 035-140-290, 035 Series Pneumatic Swing Clamp Stroke 1.2"

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Main Characteristics:: Main Characteristics: Left Hand Swing Direction, 1.20" Total Stroke

Features:

Comes with threaded body for mounting through fixture plates
Low profile for confined spaces
Double locked arm attachment is bolted to piston rod and clamped around shaft diameter

Applications:

Assembly
Welding
Light machining

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Weight (lb)

1.31

Stroke during rotation (in)

0.57

Clamping Force at 5Bar (72Psi) (lbf.)

60.0

Vertical clamp stroke (in)

0.63

Stroke (in)

1.2

Cylinder Bore (in)

1.57

Air Consumption (per double stroke at 7 psi) (in³)

0.015

Vertical clamp stroke (in)

0.63

Air Port size

1/8 NPT

Swing Direction

Product Function

Clamping

Mount

Threaded Body

Sensor Ready

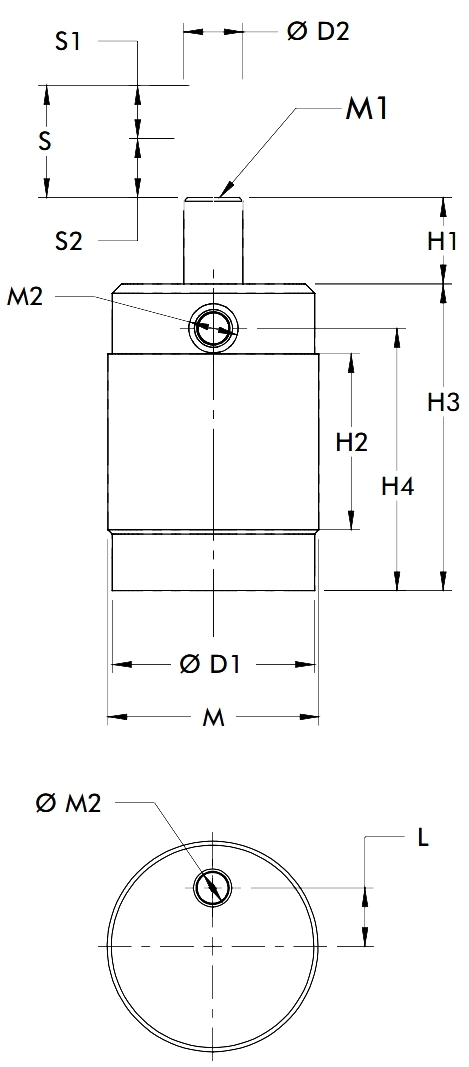

Dimensions

ØD1 - 2.16" (54,8mm)
ØD2 - 0.63" (16mm)
H1 - 0.76" (19,4mm)
H2 - 1.88" (47,7mm)
H3 - 3.28" (83,2mm)
H4 - 2.8" (71mm)
L - 0.7" (17,8mm)
M - 2-1/4-16
M1 - 5/16-18
M2 - 1/8 NPT

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Weight (lb)

1.31

Stroke during rotation (in)

0.57

Clamping Force at 5Bar (72Psi) (lbf.)

60.0

Vertical clamp stroke (in)

0.63

Stroke (in)

1.2

Cylinder Bore (in)

1.57

Air Consumption (per double stroke at 7 psi) (in³)

0.015

Vertical clamp stroke (in)

0.63

Air Port size

1/8 NPT

Swing Direction

Product Function

Clamping

Mount

Threaded Body

Sensor Ready

Dimensions

ØD1 - 2.16" (54,8mm)
ØD2 - 0.63" (16mm)
H1 - 0.76" (19,4mm)
H2 - 1.88" (47,7mm)
H3 - 3.28" (83,2mm)
H4 - 2.8" (71mm)
L - 0.7" (17,8mm)
M - 2-1/4-16
M1 - 5/16-18
M2 - 1/8 NPT

Note

Note: Please read description carefully. Do not base your order on the picture presented.
