Calibration Technologies (CTI) SB-EPCS2 Emergency Pressure Control Switch
Part #:
SB-EPCS2
Condition:
Brand New
Brand NewChoose Button Type
$341.00 /Each
Manufacturer warranty Description

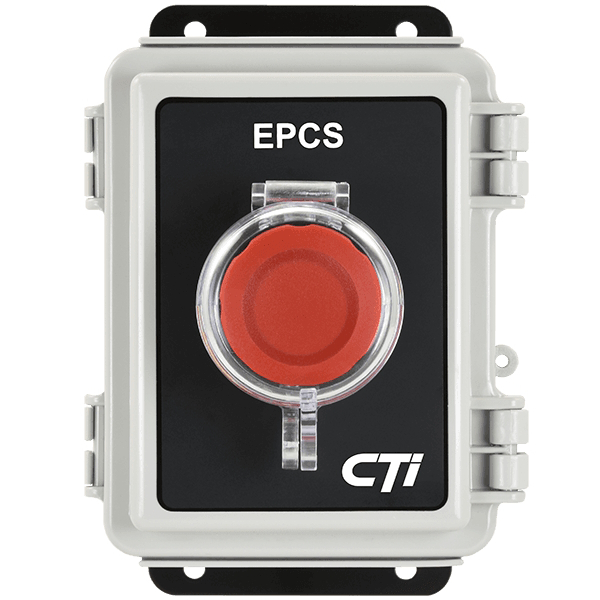

Calibration Technologies (CTI), SB-EPCS2, Emergency Pressure Control Push-button Switch Includes Tamper-proof Flip-cover, and NEMA4 Enclosure
Features:
- 40 mm push/pull latching mushroom push-button switch.
- Tamper-proof clear switch cover.
- IP66/NEMA4 weatherproof design for outdoors or wash-down environments.
- 120 vac or 24 vdc
- 1.5 Amp normally open and normally closed contacts.

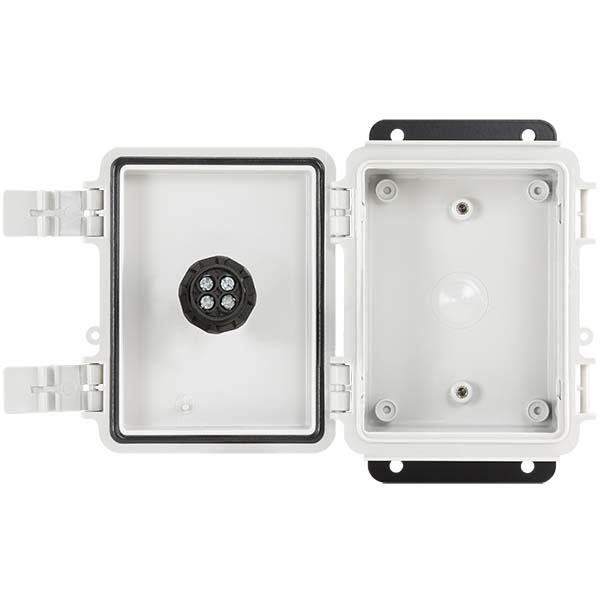

- Circuit Board includes terminal block for wire landings.
- Mounting flanges for wall mounting.
Technical details
Main features
- Size 5.1" high x 4.2" wide x 4" deep
- Weight 1.0 lbs
- Button Type Presure
- Operating Temperature -40F to 120F
- Ingress protection IP66 / NEMA 4
- Contact Rating 1.5A, 120vac or 24vdc
- Power Requirements 120 vac or 24vdc
- Mounting plate Anodized Aluminum
- Mechanical Durability 500,000 cycles
- Actuator Pull to release, mushroom 40mm
