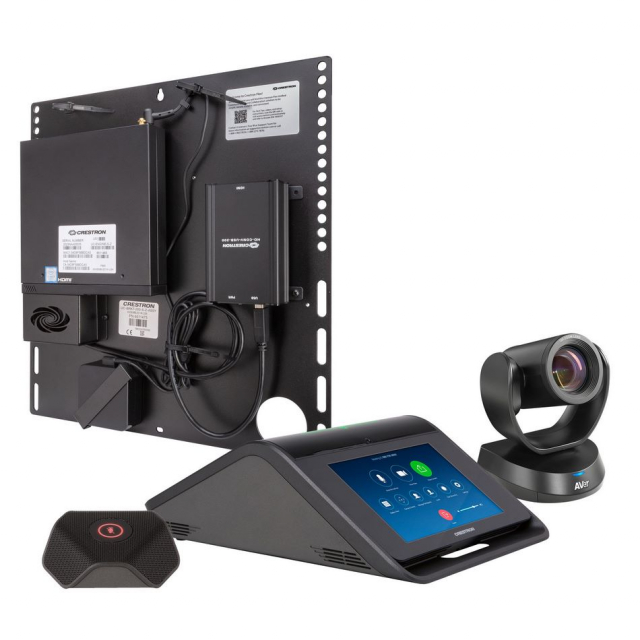

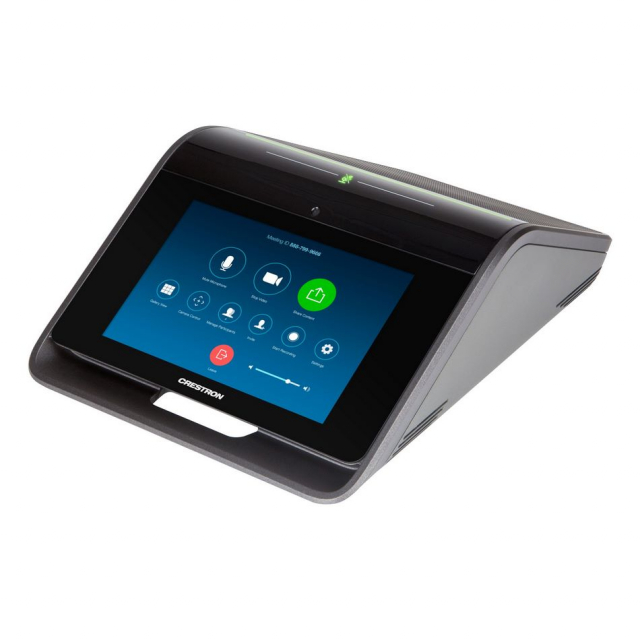

| Crestron Flex tabletop conferencing device |
| Touch Screen | 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels |
| UI | Zoom Rooms UI |
| Mic Mute Symbol and Light Bar | (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute |
| AEC | Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant |
| Speaker | - Full range speaker;
- Amplifier Power: 11 W;
- 95 dB SPL at 0.5 m maximum output;
- Frequency Response: 90 Hz to 22 kHz
|
| Microphones | - 360° quad mic array;
- Pickup Range (typical): 20 ft (6 m)
|
| Extension Microphones | One extension microphone pod (CCS-UCA-MIC) included |
| Occupancy Sensor | 6 ft (1.83 m) PIR range in front of the touch screen; |
| Ethernet | 100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half-duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud client, primary port is IEEE 802.3at Type 2 PoE+ compliant |
| USB | USB 2.0 micro Type B device port, supports UAC for an audio interface to UC Engine (cable included) |
| Power Options | - PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device
- 24 VDC: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU
NOTE: If the additional mic pod (CCS-UCA-MIC) is used, PoE+ cannot be used to power the device. |
| Dimensions | - Height: 4.11 in. (104 mm)
- Width: 8.92 in. (227 mm)
- Depth: 12.74 in. (324 mm)
|
| Weight | 5.5 lb (2.5 kg) |

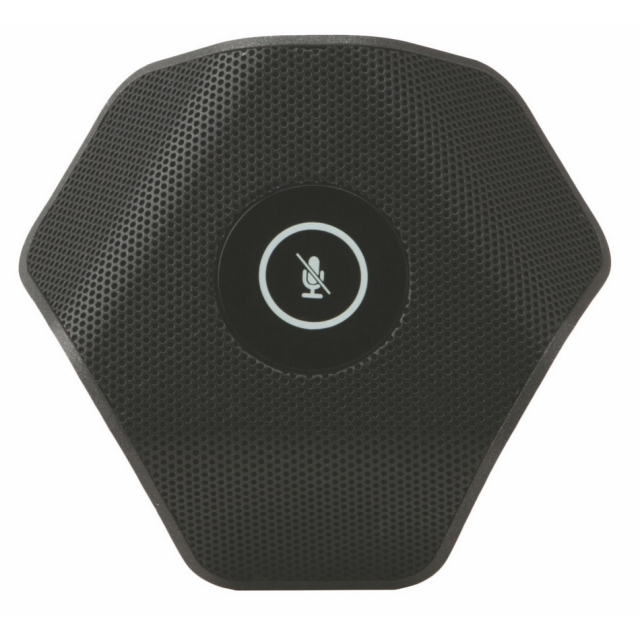

| Microphone Pod |
| Model | CCS-UCA-MIC |
| Communications | A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM |
| Microphone | Triple mic array with (3) cardioid electret elements |
| Pickup Range | 20 ft (6 m) typical, 360° |
| Mic Mute | (1) Capacitive button with bi-color LED, toggles between mute and unmute (affects all system mics) |
| Connectors | (2) RJ9 4P4C connector, female |
| Power | Powered via the CCS-UC-1 through the A2B bus |
| Dimensions | - Height: 0.97 in (25 mm)
- Width: 3.81 in (97 mm)
- Depth: 3.42 in (87 mm)
|

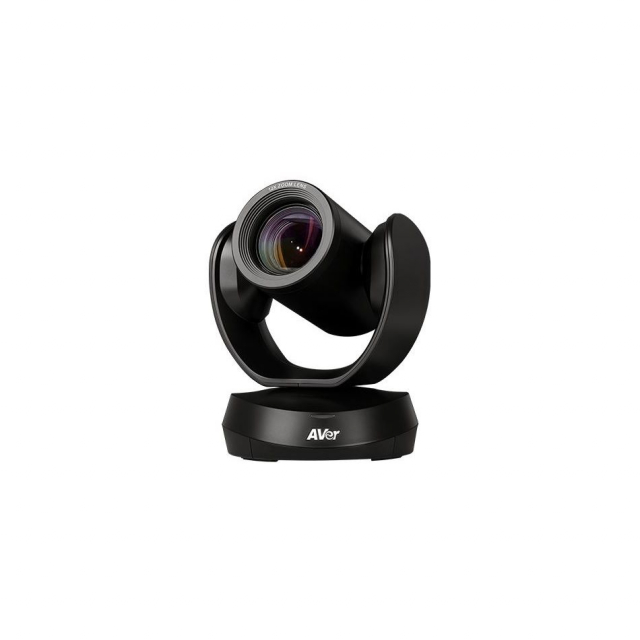

| Camera |
| Image Sensor | Super low light 2M pixel sensor maintains a clear and natural image in low light conditions |
| Lens Focal Length | 3.9 mm (wide) ~ 47.3 mm (tele) |
| Wide Field of View | 82deg |
| Lens F# | 1.8 (wide) ~ 2.8 (tele) |
| Pan/Tilt/Zoom | - Pan: ±170°;
- Tilt: +90° (up), -30° (down);
- 18X total zoom (12X optical zoom)
|
| Connectivity | USB Type-C® connector |
| Power | 12 VDC power adapter |
| Resolution/FPS | HD 1080p at 30 fps |
| Dimensions | - Height: 7.17 in. (182 mm)
- Width: 6.02 in. (153 mm)
- Depth: 5.63 in. (143 mm)
|

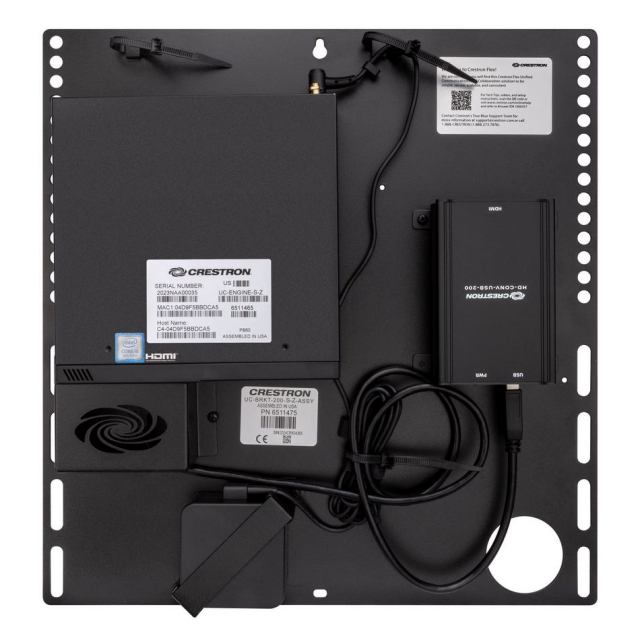

| UC Bracket Assembly |
| UC Engine | ASUS Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Zoom Rooms Software |
| Management Client | XiO Cloud Service |
| Content Ingest | HDMI input via HDMI to USB 3.0 converter (model HD-CONV-USB-200) |
| Display Output | Single or dual display support1 |
| Display Output Resolution | 1080p |
| Power | 90 W via external 100-240 VAC, 50/60 Hz adapter (included) |
| Construction | Metal mounting bracket, black, preassembled with UC Engine and HD-CONV-USB-200 |
| Mounting | - Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount;
- Bracket has mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
|
| Dimensions | - Height: 15.00 in. (381 mm)
- Width: 14.50 in. (368 mm)
- Depth: 1.72 in. (44 mm)
|
| Weight | 6.64 lb (3.0 kg) |
